Search › Model › VCV10

VCV10

Toyota SCEPTER · 1992 · 5,601 parts · 184 categories

5,601 items

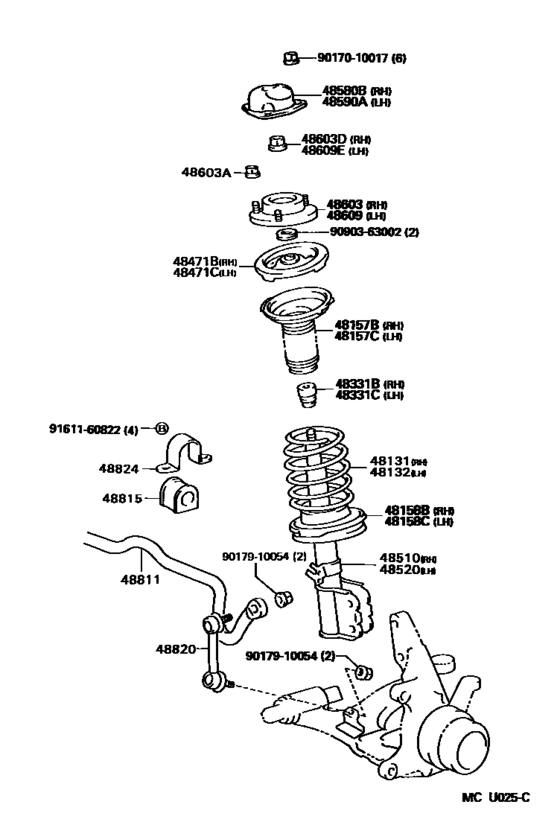

Front Spring & Shock Absorber ([08.1994 - ] (9408- )) 43

#	OEM	Part name
48131	48131-33250	Spring, Front Coil, Rh
48131	48131-33290	Spring, Front Coil, Rh
48131	48131-33530	Spring, Front Coil, Rh
48157	48157-33020	Insulator, Front Coil Spring, Upper Rh
48157	48157-33030	Insulator, Front Coil Spring, Upper
48158	48158-33010	Insulator, Front Coil Spring, Lower Rh
48158	48158-33020	Insulator, Front Coil Spring, Lower
48331	48331-33020	Bumper, Front Spring
48331	48331-33021	Bumper, Front Spring
48471	48471-41010	Seat, Front Coil Spring, Upper
48510	48510-33060	Absorber Assy, Shock, Front Rh
48510	48510-80141	Absorber Assy, Shock, Front Rh
48510	48510-33070	Absorber Assy, Shock, Front Rh
48510	48510-39295	Absorber Assy, Shock, Front Rh
48510	48510-80134	Absorber Assy, Shock, Front Rh
48520	48520-33060	Absorber Assy, Shock, Front Lh
48520	48520-39675	Absorber Assy, Shock, Front Lh
48520	48520-33070	Absorber Assy, Shock, Front Lh
48520	48520-39115	Absorber Assy, Shock, Front Lh
48520	48520-39655	Absorber Assy, Shock, Front Lh
48580	48580-33010	Cap Assy, Front Shock Absorber, Rh
48590	48590-33010	Cap Assy, Front Shock Absorber, Lh
48603	48609-06010	Support Sub-Assy, Front Suspension, Rh
48603	48609-06011	Support Sub-Assy, Front Suspension, Rh
48603	48609-07010	Support Sub-Assy, Front Suspension, Rh
48603	48609-33010	Support Sub-Assy, Front Suspension, Rh
48603	48609-33011	Support Sub-Assy, Front Suspension, Rh
48603	48609-33070	Support Sub-Assy, Front Suspension, Rh
48603	90179-10095	Nut(For Backing Plate To Rear Axle Housing Setting)
48603	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)
48811	48811-06020	Bar, Stabilizer, Front
48811	48811-06040	Bar, Stabilizer, Front
48811	48811-33010	Bar, Stabilizer, Front
48815	48815-33010	Bush, Front Stabilizer Bar, No.1
48815	48815-33011	Bush, Front Stabilizer Bar, No.1
48820	48820-33010	Link Assy, Front Stabilizer, Lh
48824	48824-33010	Bracket, Stabilizer, Front
48824	48824-33020	Bracket, Stabilizer, Front
9017010017	90170-10017	Nut(For Clutch Pedal Stopper)
9017910054	90179-10054	Nut, No.1 (For Center Support Bearing)
9090363002	90903-63002	Bearing(For Front Suspension Support)
9090363002	90903-63014	Bearing(For Front Suspension Support)
9161160822	91611-60822	Bolt

OEM	Part name	Category
48131-33250	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48131-33290	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48131-33530	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48157-33020	Insulator, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48157-33030	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48158-33010	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48158-33020	Insulator, Front Coil Spring, Lower	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48331-33020	Bumper, Front Spring	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48331-33021	Bumper, Front Spring	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48471-41010	Seat, Front Coil Spring, Upper	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48510-33060	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48510-33070	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48510-39295	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48510-80134	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48510-80141	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48520-33060	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48520-33070	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48520-39115	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48520-39655	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48520-39675	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48580-33010	Cap Assy, Front Shock Absorber, Rh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48590-33010	Cap Assy, Front Shock Absorber, Lh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48609-06010	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48609-06011	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48609-07010	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48609-33010	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48609-33011	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48609-33070	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48811-06020	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48811-06040	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48811-33010	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48815-33010	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48815-33011	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48820-33010	Link Assy, Front Stabilizer, Lh	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48824-33010	Bracket, Stabilizer, Front	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
48824-33020	Bracket, Stabilizer, Front	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
90170-10017	Nut(For Clutch Pedal Stopper)	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
90179-10054	Nut, No.1 (For Center Support Bearing)	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
90179-10095	Nut(For Backing Plate To Rear Axle Housing Setting)	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
90903-63002	Bearing(For Front Suspension Support)	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
90903-63014	Bearing(For Front Suspension Support)	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
91611-60822	Bolt	Front Spring & Shock Absorber ([08.1994 - ] (9408- ))
