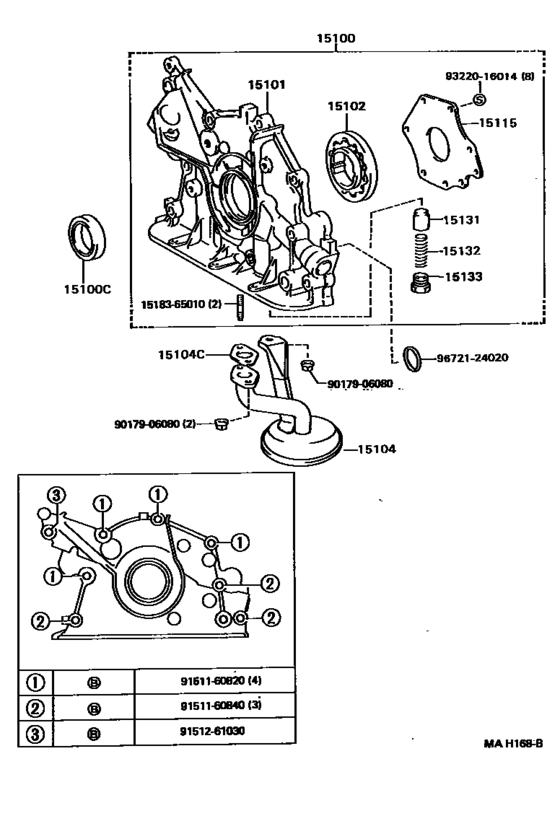

| 15100-62030 |
Pump Assy, Oil |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 15101-62030 |
Body Sub-Assy, Oil Pump |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 15103-62030 |
Rotor Set, Oil Pump |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 15104-62030 |
Strainer Sub-Assy, Oil |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 15115-62030 |
Cover, Oil Pump |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 15131-24010 |
Valve, Oil Pump Relief |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 15132-62030 |
Spring, Oil Pump Relief Valve |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 15133-62030 |
Plug, Oil Pump Relief Valve |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 15147-62020 |
Gasket(For Oil Strainer) |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 15183-65010 |
Bolt, Union(for Oil Pump) |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 90179-06080 |
NUT |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 90311-40013 |
Oil Seal (For Oil Pump) |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 90311-40022 |
Oil Seal (For Oil Pump) |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 91511-60820 |
Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 91511-60840 |
Bolt(For Alternator) |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 91511-J0820 |
Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 91511-J0840 |
Bolt(For Alternator) |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 91512-61030 |
Bolt (For Transaxle Case Upper Cover) |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 93220-16014 |
SCREW |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
| 96721-24020 |
O-Ring |
Engine Oil Pump ([07.1992 - ] (9207- )3VZFE) |
