Search › Model › VCV10

VCV10

Toyota SCEPTER · 1992 · 5,601 parts · 184 categories

5,601 items

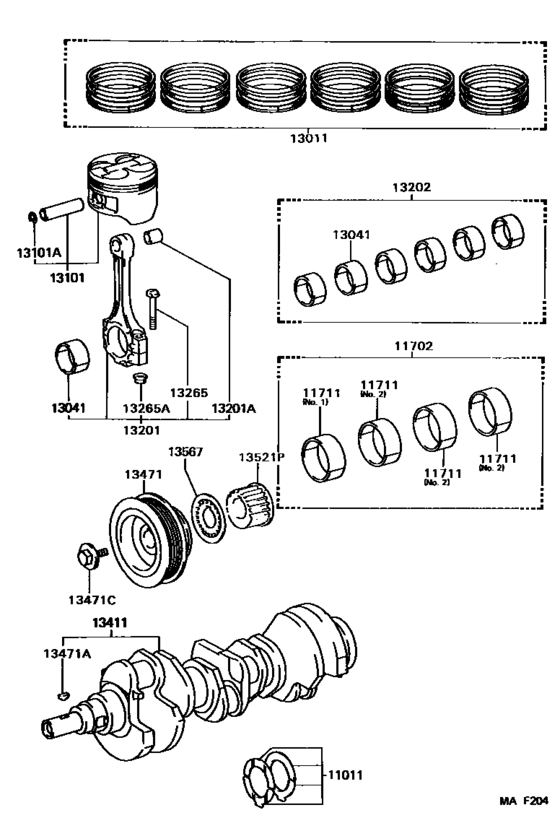

Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE) 45

#	OEM	Part name
11011	11011-62010	Washer Set, Crankshaft Thrust
11702	11704-62021	Bearing Set, Crankshaft
11702	11704-62022	Bearing Set, Crankshaft
11711	11071-62020-01	Bearing, Crankshaft
11711	11071-62020-02	Bearing, Crankshaft
11711	11071-62020-03	Bearing, Crankshaft
11711	11071-62020-04	Bearing, Crankshaft
11711	11071-62020-05	Bearing, Crankshaft
11711	11701-62021-01	Bearing, Crankshaft
11711	11701-62022-01	Bearing, Crankshaft
11711	11701-62021-02	Bearing, Crankshaft
11711	11701-62022-02	Bearing, Crankshaft
11711	11701-62021-03	Bearing, Crankshaft
11711	11701-62022-03	Bearing, Crankshaft
11711	11701-62021-04	Bearing, Crankshaft
11711	11701-62022-04	Bearing, Crankshaft
11711	11701-62021-05	Bearing, Crankshaft
11711	11701-62022-05	Bearing, Crankshaft
11711	11701-62021-06	Bearing, Crankshaft
11711	11701-62022-06	Bearing, Crankshaft
13011	13011-62060	Ring Set, Piston
13011	13011-65021	Ring Set, Piston
13011	13013-62060	Ring Set, Piston
13011	13013-65021	Ring Set, Piston
13041	13041-62020-01	Bearing, Connecting Rod
13041	13041-62020-02	Bearing, Connecting Rod
13041	13041-62020-03	Bearing, Connecting Rod
13101	13101-62040-01	Piston Sub-Assy, W/pin
13101	13101-62040-02	Piston Sub-Assy, W/pin
13101	13101-62040-03	Piston Sub-Assy, W/pin
13101	13103-62040	Piston Sub-Assy, W/pin
13101	90521-25004	Ring, Hole Snap(For Piston Pin)
13101	90520-22025	Ring, Hole Snap(For Piston Pin)
13201	13201-69125	Rod Sub-Assy, Connecting
13201	90999-73130	Bush(For Connecting Rod Small End)
13202	13204-62020	Bearing Set, Connecting Rod
13265	13265-62030	Bolt, Connecting Rod
13265	13265-74030	Bolt, Connecting Rod
13265	90179-08118	Nut, Hexagon(For Connecting Rod Bolt)
13411	13401-62010	Crankshaft
13471	13408-62030	Pulley, Crankshaft
13471	90280-05005	Key(For Oil Pump Drive Spline)
13471	90105-16031	Bolt(For Crankshaft Pulley Set)
13521	13521-62020	Pulley, Crankshaft Timing
13567	13567-62010	Guide, Timing Belt

OEM	Part name	Category
11011-62010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11071-62020-01	Bearing, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11071-62020-02	Bearing, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11071-62020-03	Bearing, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11071-62020-04	Bearing, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11071-62020-05	Bearing, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11701-62021-01	Bearing, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11701-62021-02	Bearing, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11701-62021-03	Bearing, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11701-62021-04	Bearing, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11701-62021-05	Bearing, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11701-62021-06	Bearing, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11701-62022-01	Bearing, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11701-62022-02	Bearing, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11701-62022-03	Bearing, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11701-62022-04	Bearing, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11701-62022-05	Bearing, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11701-62022-06	Bearing, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11704-62021	Bearing Set, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
11704-62022	Bearing Set, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13011-62060	Ring Set, Piston	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13011-65021	Ring Set, Piston	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13013-62060	Ring Set, Piston	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13013-65021	Ring Set, Piston	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13041-62020-01	Bearing, Connecting Rod	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13041-62020-02	Bearing, Connecting Rod	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13041-62020-03	Bearing, Connecting Rod	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13101-62040-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13101-62040-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13101-62040-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13103-62040	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13201-69125	Rod Sub-Assy, Connecting	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13204-62020	Bearing Set, Connecting Rod	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13265-62030	Bolt, Connecting Rod	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13265-74030	Bolt, Connecting Rod	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13401-62010	Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13408-62030	Pulley, Crankshaft	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13521-62020	Pulley, Crankshaft Timing	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
13567-62010	Guide, Timing Belt	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
90105-16031	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
90179-08118	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
90280-05005	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
90520-22025	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
90521-25004	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
90999-73130	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([07.1992 - ] (9207- )3VZFE)
