Search › Model › VCV10

VCV10

Toyota SCEPTER · 1992 · 5,601 parts · 184 categories

5,601 items

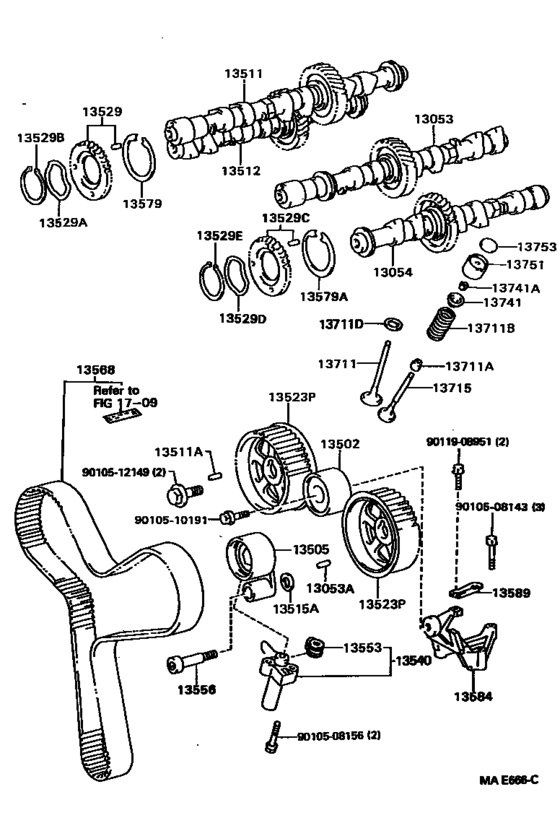

Camshaft & Valve ([07.1992 - ] (9207- )3VZFE) 65

#	OEM	Part name
13053	13053-62030	Camshaft Sub-Assy, No.3
13053	90250-05121	Pin, Straight, No.3(For Camshaft Knock)
13054	13054-62030	Camshaft Sub-Assy, No.4
13502	13503-62030	Idler Sub-Assy, Timing Belt, No.2
13505	13505-20010	Idler Sub-Assy, Timing Belt, No.1
13505	13505-20020	Idler Sub-Assy, Timing Belt, No.1
13505	13505-62060	Idler Sub-Assy, Timing Belt, No.1
13511	13501-62030	Camshaft
13512	13502-62030	Camshaft, No.2
13515	90201-10098	Washer, Plate(For Distributor Drive Gear)
13523	13051-62020	Pulley, Camshaft Timing
13529	13529-62900	Gear, Camshaft Sub
13529	13529-62901	Gear, Camshaft Sub
13529	90206-42001	Washer, Wave(For Camshaft Sub Gear)
13529	90520-41004	Ring, Shaft Snap(For Camshaft Sub Gear)
13540	13540-62020	Tensioner Assy, Chain, No.1
13540	13540-62021	Tensioner Assy, Chain, No.1
13553	13553-62020	Cover, Chain Tensioner Dust
13556	13556-62010	Shaft, Timing Belt Idler
13568	13568-69025	Belt, Timing
13579	13579-62010	Washer, Camshaft Timing Gear Bolt
13579	13579-50020	Washer, Camshaft Timing Gear Bolt
13584	13584-62030	Bracket, Timing Belt Idler
13584	13584-62050	Bracket, Timing Belt Idler
13589	13589-62010	Stay, Idler Bracket
13711	13711-62030	Valve, Intake
13711	13711-62050	Valve, Intake
13711	90913-02088	Seal Or Ring, O(For Valve Stem Oil)
13711	90913-02095	Seal Or Ring, O(For Valve Stem Oil)
13711	90913-02103	Seal Or Ring, O(For Valve Stem Oil)
13711	90501-31012	Spring, Compression(For Inner)
13711	90501-31013	Spring, Compression(For Inner)
13711	90504-39004	Spring, Compression(For Inner)
13711	13734-62020	Washer, Plate(For Valve Spring Seat)
13711	90201-18015	Washer, Plate(For Valve Spring Seat)
13715	13715-62030	Valve, Exhaust
13715	13715-62040	Valve, Exhaust
13741	13741-50020	Retainer, Valve Spring
13741	13741-62010	Retainer, Valve Spring
13741	13741-46020	Retainer, Valve Spring
13741	90913-03021	Seal Or Ring, O(For Valve Stem Oil)
13751	13751-74020	Lifter, Valve
13753	13753-74010	Shim, Valve Adjusting
13753	13753-74030	Shim, Valve Adjusting
13753	13753-74050	Shim, Valve Adjusting
13753	13753-74070	Shim, Valve Adjusting
13753	13753-74090	Shim, Valve Adjusting
13753	13753-74110	Shim, Valve Adjusting
13753	13753-74130	Shim, Valve Adjusting
13753	13753-74150	Shim, Valve Adjusting
13753	13753-74170	Shim, Valve Adjusting
13753	13753-74190	Shim, Valve Adjusting
13753	13753-74210	Shim, Valve Adjusting
13753	13753-74230	Shim, Valve Adjusting
13753	13753-74250	Shim, Valve Adjusting
13753	13753-74270	Shim, Valve Adjusting
13753	13753-74290	Shim, Valve Adjusting
13753	13753-74310	Shim, Valve Adjusting
13753	13753-74330	Shim, Valve Adjusting
9010508143	90105-08143	BOLT
9010508156	90105-08156	BOLT WASHER BASED
9010510191	90105-10191	BOLT
9010512149	90105-12149	Bolt(For Camshaft Timing Gear)
9011908951	90119-08951	Bolt (For Transmission Control Cable Bracket)
9011908951	91621-J0814	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
13051-62020	Pulley, Camshaft Timing	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13053-62030	Camshaft Sub-Assy, No.3	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13054-62030	Camshaft Sub-Assy, No.4	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13501-62030	Camshaft	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13502-62030	Camshaft, No.2	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13503-62030	Idler Sub-Assy, Timing Belt, No.2	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13505-20010	Idler Sub-Assy, Timing Belt, No.1	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13505-20020	Idler Sub-Assy, Timing Belt, No.1	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13505-62060	Idler Sub-Assy, Timing Belt, No.1	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13529-62900	Gear, Camshaft Sub	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13529-62901	Gear, Camshaft Sub	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13540-62020	Tensioner Assy, Chain, No.1	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13540-62021	Tensioner Assy, Chain, No.1	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13553-62020	Cover, Chain Tensioner Dust	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13556-62010	Shaft, Timing Belt Idler	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13568-69025	Belt, Timing	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13579-50020	Washer, Camshaft Timing Gear Bolt	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13579-62010	Washer, Camshaft Timing Gear Bolt	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13584-62030	Bracket, Timing Belt Idler	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13584-62050	Bracket, Timing Belt Idler	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13589-62010	Stay, Idler Bracket	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13711-62030	Valve, Intake	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13711-62050	Valve, Intake	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13715-62030	Valve, Exhaust	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13715-62040	Valve, Exhaust	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13734-62020	Washer, Plate(For Valve Spring Seat)	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13741-46020	Retainer, Valve Spring	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13741-50020	Retainer, Valve Spring	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13741-62010	Retainer, Valve Spring	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13751-74020	Lifter, Valve	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13753-74010	Shim, Valve Adjusting	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13753-74030	Shim, Valve Adjusting	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13753-74050	Shim, Valve Adjusting	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13753-74070	Shim, Valve Adjusting	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13753-74090	Shim, Valve Adjusting	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13753-74110	Shim, Valve Adjusting	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13753-74130	Shim, Valve Adjusting	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13753-74150	Shim, Valve Adjusting	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13753-74170	Shim, Valve Adjusting	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13753-74190	Shim, Valve Adjusting	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13753-74210	Shim, Valve Adjusting	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13753-74230	Shim, Valve Adjusting	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13753-74250	Shim, Valve Adjusting	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13753-74270	Shim, Valve Adjusting	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13753-74290	Shim, Valve Adjusting	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13753-74310	Shim, Valve Adjusting	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
13753-74330	Shim, Valve Adjusting	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
90105-08143	BOLT	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
90105-08156	BOLT WASHER BASED	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
90105-10191	BOLT	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
90105-12149	Bolt(For Camshaft Timing Gear)	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
90119-08951	Bolt (For Transmission Control Cable Bracket)	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
90201-10098	Washer, Plate(For Distributor Drive Gear)	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
90201-18015	Washer, Plate(For Valve Spring Seat)	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
90206-42001	Washer, Wave(For Camshaft Sub Gear)	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
90250-05121	Pin, Straight, No.3(For Camshaft Knock)	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
90501-31012	Spring, Compression(For Inner)	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
90501-31013	Spring, Compression(For Inner)	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
90504-39004	Spring, Compression(For Inner)	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
90520-41004	Ring, Shaft Snap(For Camshaft Sub Gear)	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
90913-02088	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
90913-02095	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
90913-02103	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
90913-03021	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
91621-J0814	Bolt (For Transmission Control Cable Bracket)	Camshaft & Valve ([07.1992 - ] (9207- )3VZFE)
