Search › Model › VCV10

VCV10

Toyota SCEPTER · 1992 · 5,601 parts · 184 categories

5,601 items

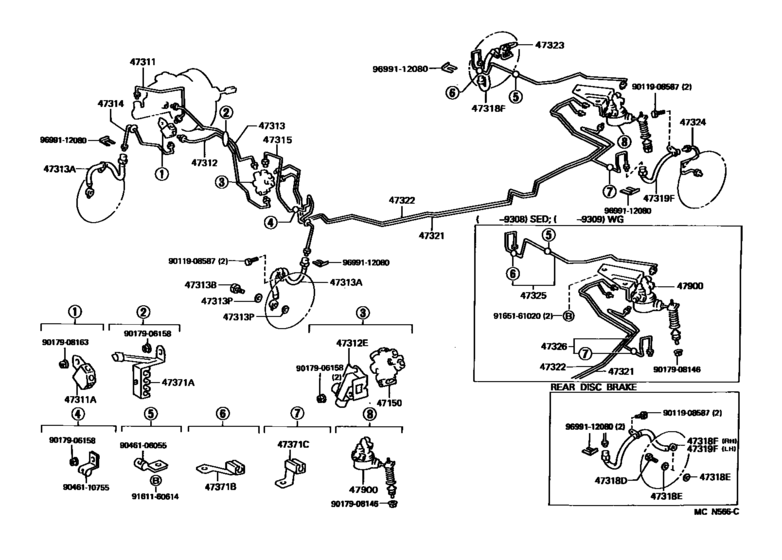

Brake Tube & Clamp ([07.1992 - ] (9207- )) 59

#	OEM	Part name
47150	47150-16040	Valve Assy, Proportioning
47150	47150-12260	Valve Assy, Proportioning
47150	47150-16050	Valve Assy, Proportioning
47150	47150-20250	Valve Assy, Proportioning
47150	90412-10140	Valve Assy, Proportioning
47311	47311-33022	Tube, Front Brake, No.1
47311	47311-33023	Tube, Front Brake, No.1
47311	47311-33040	Tube, Front Brake, No.1
47311	90413-10268	Way(For Front Brake Tube)
47311	90904-13014	Way(For Front Brake Tube)
47312	47312-33010	Tube, Front Brake, No.2
47312	47312-33040	Tube, Front Brake, No.2
47312	90412-10155	Union, No.2(For Front Brake Tube)
47312	90412-10209	Way, No.2(For Front Brake Tube)
47313	47313-33010	Tube, Front Brake, No.3
47313	47313-33040	Tube, Front Brake, No.3
47313	47323-33010	Tube, Front Brake, No.3
47313	47323-33060	Tube, Front Brake, No.3
47313	90947-02652	Hose, Flexible, No.1(For Front)
47313	90947-02734	Hose, Flexible, No.1(For Front)
47313	90947-02653	Hose, Flexible, No.1(For Front)
47313	90947-02736	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47314	47314-33010	Tube, Front Brake, No.4
47314	47314-33040	Tube, Front Brake, No.4
47314	47324-33010	Tube, Front Brake, No.4
47314	47324-33060	Tube, Front Brake, No.4
47315	47315-33010	Tube, Front Brake, No.5
47315	47315-33030	Tube, Front Brake, No.5
47315	47315-33080	Tube, Front Brake, No.5
47318	90947-02668	Hose, Flexible(For Rear Rh)
47318	90947-02750	Hose, Flexible(For Rear Rh)
47319	90947-02669	Hose, Flexible(For Rear Lh)
47319	90947-02751	Hose, Flexible(For Rear Lh)
47321	47321-33040	Tube, Rear Brake, No.1
47321	47321-33050	Tube, Rear Brake, No.1
47322	47322-33040	Tube, Rear Brake, No.2
47322	47322-33050	Tube, Rear Brake, No.2
47323	47323-99999	Tube, Rear Brake, No.3
47324	47324-99999	Tube, Rear Brake, No.4
47325	47325-33010	Tube, Rear Brake, No.5
47326	47326-33010	Tube, Rear Brake, No.6
47371	47371-33010	Clamp, Brake Tube, No.1
47371	47371-32130	Clamp, Brake Tube, No.6
47371	47371-32140	Clamp, Brake Tube, No.7
47900	47900-33010	Valve Assy, Load Sensing W/spring
9011908587	90119-08587	New Genuine Part
9011908587	90129-08007	New Genuine Part
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9017908163	90179-08163	Nut (For Front Wiper Arm Setting)
9046106055	90461-06055	Clamp, Brake Tube, No.1
9046110755	90461-10755	Clamp, Brake Tube, No.3
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9165161020	91651-61020	Bolt, No.1 (For Center Support Bearing)
9699112080	96991-12080	Clip

OEM	Part name	Category
47150-12260	Valve Assy, Proportioning	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47150-16040	Valve Assy, Proportioning	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47150-16050	Valve Assy, Proportioning	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47150-20250	Valve Assy, Proportioning	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47311-33022	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47311-33023	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47311-33040	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47312-33010	Tube, Front Brake, No.2	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47312-33040	Tube, Front Brake, No.2	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47313-33010	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47313-33040	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47314-33010	Tube, Front Brake, No.4	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47314-33040	Tube, Front Brake, No.4	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47315-33010	Tube, Front Brake, No.5	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47315-33030	Tube, Front Brake, No.5	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47315-33080	Tube, Front Brake, No.5	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47321-33040	Tube, Rear Brake, No.1	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47321-33050	Tube, Rear Brake, No.1	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47322-33040	Tube, Rear Brake, No.2	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47322-33050	Tube, Rear Brake, No.2	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47323-33010	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47323-33060	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47323-99999	Tube, Rear Brake, No.3	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47324-33010	Tube, Front Brake, No.4	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47324-33060	Tube, Front Brake, No.4	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47324-99999	Tube, Rear Brake, No.4	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47325-33010	Tube, Rear Brake, No.5	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47326-33010	Tube, Rear Brake, No.6	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47371-32130	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47371-32140	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47371-33010	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
47900-33010	Valve Assy, Load Sensing W/spring	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90119-08587	New Genuine Part	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90129-08007	New Genuine Part	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90179-08146	Nut	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90179-08163	Nut (For Front Wiper Arm Setting)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90179-08204	Nut	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90412-10140	Valve Assy, Proportioning	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90412-10155	Union, No.2(For Front Brake Tube)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90412-10209	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90413-10268	Way(For Front Brake Tube)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90461-06055	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90461-10755	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90904-13014	Way(For Front Brake Tube)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90947-02652	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90947-02653	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90947-02668	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90947-02669	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90947-02734	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90947-02736	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90947-02750	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
90947-02751	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
91651-61020	Bolt, No.1 (For Center Support Bearing)	Brake Tube & Clamp ([07.1992 - ] (9207- ))
96991-12080	Clip	Brake Tube & Clamp ([07.1992 - ] (9207- ))
