VCK40

Toyota TUNDRA · 1999 · 6,365 parts · 239 categories

6,365 items

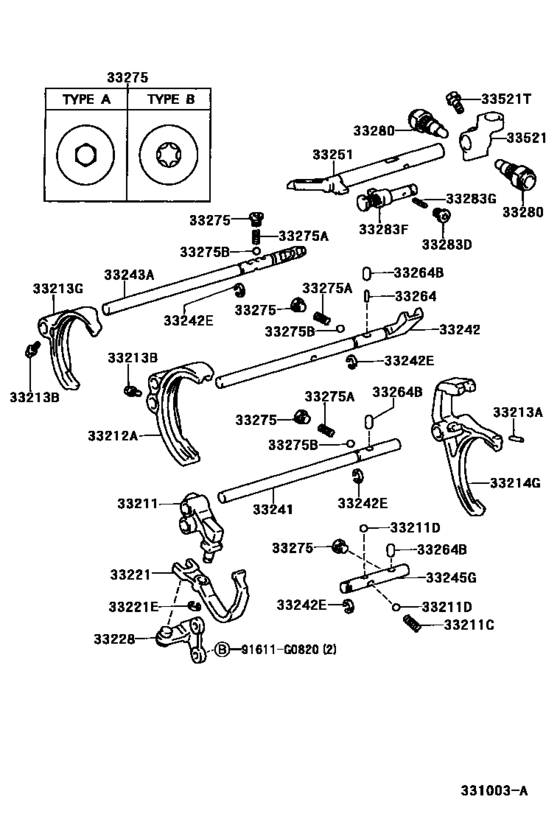

Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F) 34

#	OEM	Part name
33211	33211-35050	Fork, Reverse Shift
33211	90501-12166	Spring, Compression(For Reverse Shift Fork Return)
33211	90360-10003	Ball(For Transmission Oil Pump Cover)
33212	33212-35032	Fork, Gear Shift, No.1
33213	90254-05016	Pin, Slotted Spring(For Shift Lever Shaft Set)
33213	90105-06077	Bolt(For Shift Fork Set)
33213	33213-35040	Fork, Gear Shift, No.2
33214	33230-35010	Fork, Gear Shift, No.3
33214	33230-35012	Fork, Gear Shift, No.3
33214	33230-35011	Fork, Gear Shift, No.3
33221	33221-35050	Arm, Reverse Shift
33221	96160-01000	Ring, E(For Clutch Booster Air Valve)
33228	33228-35030	Bracket, Reverse Shift Arm
33241	33244-35060	Shaft, Reverse Shift Fork
33242	33242-60090	Shaft, Gear Shift Fork, No.1
33242	90520-12003	Ring(For Reverse Shift Head)
33243	33243-60120	Shaft, Gear Shift Fork, No.2
33245	33245-35090	Shaft, Gear Shift Fork, No.4
33251	33251-35150	Lever, Shift & Select
33251	33251-35152	Lever, Shift & Select
33251	90109-08305	Pin Or Bolt (For Shift Lever Housing)
33251	33251-35151	Lever, Shift & Select
33264	90250-05029	Pin, Or Ball, Shift Inter Lock, No.1
33264	90361-10003	Pin, Or Ball, Shift Inter Lock, No.1
33275	90341-12008	Plug, W/head Straight Screw(For Transfer Adapter)
33275	90341-12014	Plug, W/head Straight Screw, No.1(For Cylinder Block)
33275	90501-16143	Spring, Compression (For Shift Detent Ball Low Side)
33280	33280-27011	Pin Assy, Reverse Restrict
33280	33280-35021	Pin Assy, Reverse Restrict
33283	33280-35100	Pin Assy, Reverse Restrict
33283	90254-05001	Pin, Slotted Spring(For Shift Lever Shaft Set)
33521	33521-35260	Housing, Shift Lever
33521	90105-08079	Bolt(For 5Th Shift Arm)
91611	91611-G0820	Bolt

OEM	Part name	Category
33211-35050	Fork, Reverse Shift	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33212-35032	Fork, Gear Shift, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33213-35040	Fork, Gear Shift, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33221-35050	Arm, Reverse Shift	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33228-35030	Bracket, Reverse Shift Arm	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33230-35010	Fork, Gear Shift, No.3	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33230-35011	Fork, Gear Shift, No.3	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33230-35012	Fork, Gear Shift, No.3	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33242-60090	Shaft, Gear Shift Fork, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33243-60120	Shaft, Gear Shift Fork, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33244-35060	Shaft, Reverse Shift Fork	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33245-35090	Shaft, Gear Shift Fork, No.4	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33251-35150	Lever, Shift & Select	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33251-35151	Lever, Shift & Select	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33251-35152	Lever, Shift & Select	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33280-27011	Pin Assy, Reverse Restrict	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33280-35021	Pin Assy, Reverse Restrict	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33280-35100	Pin Assy, Reverse Restrict	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
33521-35260	Housing, Shift Lever	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
90105-06077	Bolt(For Shift Fork Set)	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
90105-08079	Bolt(For 5Th Shift Arm)	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
90109-08305	Pin Or Bolt (For Shift Lever Housing)	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
90250-05029	Pin, Or Ball, Shift Inter Lock, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
90254-05001	Pin, Slotted Spring(For Shift Lever Shaft Set)	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
90254-05016	Pin, Slotted Spring(For Shift Lever Shaft Set)	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
90341-12008	Plug, W/head Straight Screw(For Transfer Adapter)	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
90341-12014	Plug, W/head Straight Screw, No.1(For Cylinder Block)	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
90360-10003	Ball(For Transmission Oil Pump Cover)	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
90361-10003	Pin, Or Ball, Shift Inter Lock, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
90501-12166	Spring, Compression(For Reverse Shift Fork Return)	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
90501-16143	Spring, Compression (For Shift Detent Ball Low Side)	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
90520-12003	Ring(For Reverse Shift Head)	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
91611-G0820	Bolt	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
96160-01000	Ring, E(For Clutch Booster Air Valve)	Gear Shift Fork & Lever Shaft (Mtm) ([02.1999 - 08.2004] R150,R150F (9902-0408)5F)
