VCK21

Toyota T100 · 1994 · 4,496 parts · 179 categories

4,496 items

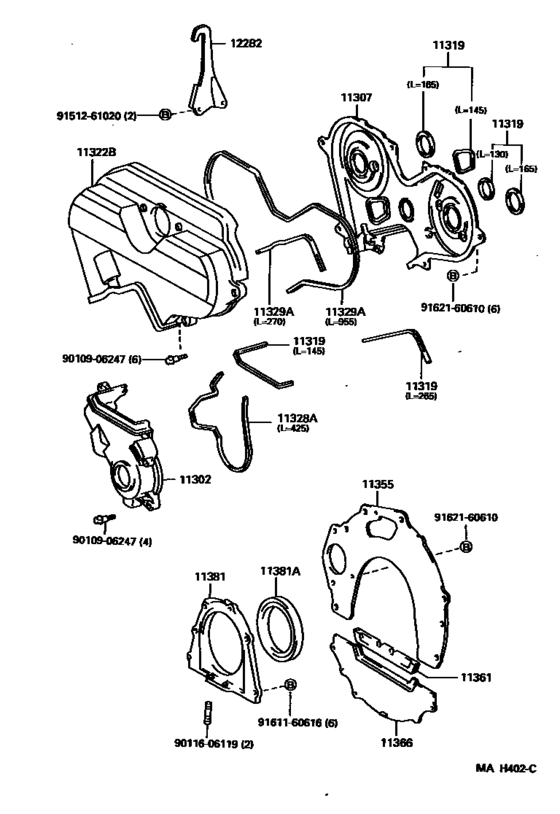

Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE) 22

#	OEM	Part name
11302	11321-62900	Cover Sub-Assy, Timing Chain Or Belt
11307	11323-62050	Cover, Sub-Assy, Timing Belt, No.3
11319	11319-20010	Gasket, Timing Belt Cover, No.3
11322	11322-62901	Cover, Timing Belt, No.2
11328	11328-20020	Gasket, Timing Belt Cover, No.1
11329	11329-20010	Gasket, Timing Belt Or Chain Cover, No.2
11355	11355-65011	Plate, Rear End
11361	11361-65011	Cover, Flywheel Housing Under
11366	11366-65010	Seal, Flywheel Housing Under Cover Dust
11366	11366-65011	Seal, Flywheel Housing Under Cover Dust
11381	11381-62010	Retainer, Engine Rear Oil Seal
11381	90311-92006	Seal, Engine Rear Oil
11381	90311-92010	Seal, Engine Rear Oil
12282	12282-62030	Hanger, Engine, No.2
9010906247	90109-06247	New Genuine Part
9011606119	90116-06119	Bolt, Stud(For Oil Pan)
9151261020	91512-61020	Bolt (For Transfer Stiffener Plate)
9151261020	91512-B1020	Bolt(For Front Transaxle Case Cover)
9161160616	91611-60616	Bolt(For Transaxle Case Receiver)
9161160616	91611-B0616	Bolt(For Transaxle Case Receiver)
9162160610	91621-60610	New Genuine Part
9162160610	91651-B0612	Bolt

OEM	Part name	Category
11319-20010	Gasket, Timing Belt Cover, No.3	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
11321-62900	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
11322-62901	Cover, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
11323-62050	Cover, Sub-Assy, Timing Belt, No.3	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
11328-20020	Gasket, Timing Belt Cover, No.1	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
11329-20010	Gasket, Timing Belt Or Chain Cover, No.2	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
11355-65011	Plate, Rear End	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
11361-65011	Cover, Flywheel Housing Under	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
11366-65010	Seal, Flywheel Housing Under Cover Dust	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
11366-65011	Seal, Flywheel Housing Under Cover Dust	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
11381-62010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
12282-62030	Hanger, Engine, No.2	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
90109-06247	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
90116-06119	Bolt, Stud(For Oil Pan)	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
90311-92006	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
90311-92010	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
91512-61020	Bolt (For Transfer Stiffener Plate)	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
91512-B1020	Bolt(For Front Transaxle Case Cover)	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
91611-60616	Bolt(For Transaxle Case Receiver)	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
91611-B0616	Bolt(For Transaxle Case Receiver)	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
91621-60610	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
91651-B0612	Bolt	Timing Gear Cover & Rear End Plate ([08.1994 - ] (9408- )5VZFE)
