Search › Model › VCK21

VCK21

Toyota T100 · 1994 · 4,496 parts · 179 categories

4,496 items

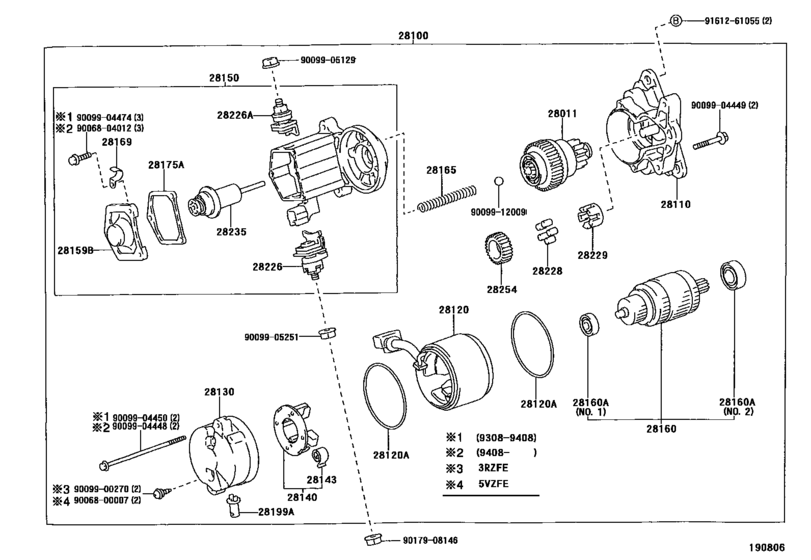

Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE) 52

#	OEM	Part name
28011	28011-75120	Clutch Sub-Assy, Starter
28011	28011-01020	Clutch Sub-Assy, Starter
28100	28100-62030	Starter Assy
28100	28100-07010	Starter Assy
28110	28110-62030	Housing Assy, Starter Drive
28110	28110-07020	Housing Assy, Starter Drive
28120	28120-75110	Yoke Assy, Starter
28120	90099-14064	Rubber(For Starter Yoke)
28120	28120-01030	Yoke Assy, Starter
28130	28130-62030	Frame Assy, Starter Commutator End
28130	28130-07010	Frame Assy, Starter Commutator End
28140	28140-62030	Holder Assy, Starter Brush
28140	28140-08010	Holder Assy, Starter Brush
28143	28143-54380	Spring, Starter Brush
28143	90099-17112	Spring, Starter Brush
28150	28150-62030	Switch Assy, Magnet Starter
28150	28150-07020	Switch Assy, Magnet Starter
28159	28159-54380	Cover, Magnet Switch
28160	28160-75110	Armature Assy, Starter
28160	90099-10197	Bearing, Starter Armature
28160	90099-10208	Bearing, Starter Armature
28160	28160-01020	Armature Assy, Starter
28160	90068-10003	Bearing, Starter Armature
28160	90068-10004	Bearing, Starter Armature
28165	28165-76070	Spring, Starter Magnet Switch Return
28169	28169-54380	Clamp, Starter Motor Lead Wire
28175	28175-54380	Gasket, Magnet Switch Cover
28199	28199-74110	Cover, Starter End Frame
28226	28226-54380	Starter Kit, Battery Terminal
28226	28226-54340	Starter Kit, Battery Terminal
28226	28226-72010	Starter Kit, Motor Terminal
28226	28226-03020	Starter Kit, Battery Terminal
28226	28226-74070	Starter Kit, Battery Terminal
28228	28228-26040	Roller, Starter Idle Gear Clutch
28229	28229-74070	Retainer, Starter Idle Gear
28229	28229-01020	Retainer, Starter Idle Gear
28235	28235-54380	Plunger, Magnet Switch
28254	28254-64130	Pinion, Starter Drive
28254	28254-03010	Gear, Starter Idle
9006800007	90068-00007	Screw, Starter
9006804012	90068-04012	New Genuine Part
9009900270	90099-00270	Screw, Starter
9009904448	90099-04448	Bolt, Starter
9009904449	90099-04449	New Genuine Part
9009904450	90099-04450	New Genuine Part
9009904474	90099-04474	New Genuine Part
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009905251	90099-05251	New Genuine Part
9009912009	90099-12009	Ball, Starter Clutch
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9161261055	91612-61055	Bolt (For Transfer Case)

OEM	Part name	Category
28011-01020	Clutch Sub-Assy, Starter	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28011-75120	Clutch Sub-Assy, Starter	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28100-07010	Starter Assy	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28100-62030	Starter Assy	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28110-07020	Housing Assy, Starter Drive	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28110-62030	Housing Assy, Starter Drive	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28120-01030	Yoke Assy, Starter	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28120-75110	Yoke Assy, Starter	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28130-07010	Frame Assy, Starter Commutator End	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28130-62030	Frame Assy, Starter Commutator End	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28140-08010	Holder Assy, Starter Brush	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28140-62030	Holder Assy, Starter Brush	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28143-54380	Spring, Starter Brush	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28150-07020	Switch Assy, Magnet Starter	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28150-62030	Switch Assy, Magnet Starter	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28159-54380	Cover, Magnet Switch	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28160-01020	Armature Assy, Starter	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28160-75110	Armature Assy, Starter	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28165-76070	Spring, Starter Magnet Switch Return	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28169-54380	Clamp, Starter Motor Lead Wire	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28175-54380	Gasket, Magnet Switch Cover	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28199-74110	Cover, Starter End Frame	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28226-03020	Starter Kit, Battery Terminal	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28226-54340	Starter Kit, Battery Terminal	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28226-54380	Starter Kit, Battery Terminal	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28226-72010	Starter Kit, Motor Terminal	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28226-74070	Starter Kit, Battery Terminal	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28228-26040	Roller, Starter Idle Gear Clutch	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28229-01020	Retainer, Starter Idle Gear	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28229-74070	Retainer, Starter Idle Gear	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28235-54380	Plunger, Magnet Switch	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28254-03010	Gear, Starter Idle	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
28254-64130	Pinion, Starter Drive	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90068-00007	Screw, Starter	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90068-04012	New Genuine Part	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90068-10003	Bearing, Starter Armature	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90068-10004	Bearing, Starter Armature	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90099-00270	Screw, Starter	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90099-04448	Bolt, Starter	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90099-04449	New Genuine Part	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90099-04450	New Genuine Part	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90099-04474	New Genuine Part	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90099-05251	New Genuine Part	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90099-10197	Bearing, Starter Armature	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90099-10208	Bearing, Starter Armature	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90099-12009	Ball, Starter Clutch	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90099-14064	Rubber(For Starter Yoke)	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90099-17112	Spring, Starter Brush	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90179-08146	Nut	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
90179-08204	Nut	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
91612-61055	Bolt (For Transfer Case)	Starter ([10.1993 - ] 12V 1.2KW,1.4KW (9310- )3RZFE,5VZFE)
