VCK21

Toyota T100 · 1994 · 4,496 parts · 179 categories

4,496 items

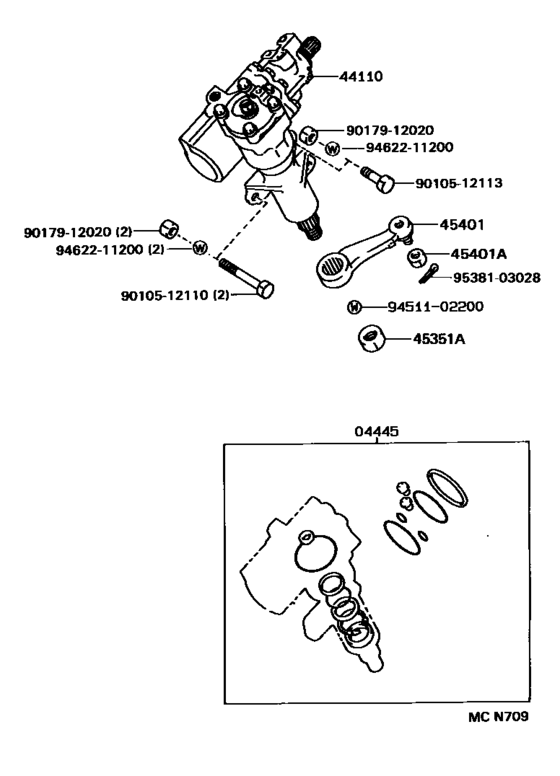

Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21) 61

#	OEM	Part name
4445	04445-35130	Gasket Kit, Power Steering Gear(For Recirculating Ball)
44105	90410-06005	Seat, Union(Pressure Control Valve Assy)
44107	44107-35160	Housing Sub-Assy, Power Steering Gear
44107	90301-37006	Ring, O(For Power Steering Gear Housing)
44107	90301-69002	Ring, O(For Power Steering Gear Housing)
44107	96711-19010	Ring, O(For Oil Level Gage Guide)
44107	90562-35001	Ring(For Power Steering Gear Housing)
44107	90562-36002	Ring(For Power Steering Gear Housing)
44107	90521-48002	Ring, Hole Snap(For Power Steering Gear Housing)
44107	90311-36005	Seal, Oil(For Power Steering Gear Housing)
44108	44108-60030	Cover Sub-Assy, Side
44108	90301-64002	Ring, O(For Side Cover)
44110	44110-35230	Gear Assy, Power Steering
44110	44110-35360	Gear Assy, Power Steering
44111	44111-60030	Shaft, Cross
44114	90562-71001	Ring(For Power Piston Nut)
44114	90301-68002	Ring, O(For Power Piston Nut)
44120	44120-35220	Valve Assy, W/ball Nut
44142	44142-60020	Nut, Lock
44152	44152-30020	Plunger, Power Piston
44152	90501-20095	Spring, Compression(For Power Piston Plunger)
44153	44153-30020	Guide, Power Piston Plunger
44154	44154-30020	Nut, Power Piston Plunger Guide
44154	96711-19014	O-Ring
44257	90210-10001	Washer, Seal(For Cross Shaft Adjusting Screw)
44447	44447-35020	Bracket, Hose Support, No.1
45046	45046-39355	End Sub-Assy, Tie Rod, Rh
45046	45046-39385	End Sub-Assy, Tie Rod
45351	90170-22058	Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)
45357	45357-60030	Screw, Cross Shaft Adjusting
45401	45401-35240	Arm Sub-Assy, Pitman
45401	90171-14042	Nut, Castle(For Pitman Arm)
45406	45406-39185	Rod Sub-Assy, Tie
45409	94184-61400	Nut(For Idler Arm Support)
45409	90386-19005	Bush(For Idler Arm)
45409	90304-31012	Seal, Dust(For Idler Arm Support)
45451	45451-34010	Rod, Steering Relay
45460	45460-39355	Rod Assy, Tie, Rh
45460	45460-39505	Rod Assy, Tie, Rh
45461	45465-35040	Rod, Steering Tie
45466	45466-30020	Clamp, Tie Rod End
45490	45490-39365	Arm Assy, Steering Idler
45490	90171-12028	Nut, Castle(For Pitman Arm)
45611	45611-35130	Arm, Steering Knuckle, Rh
45611	90105-14043	Bolt(For Steering Knuckle Arm Rh)
45612	45612-35150	Arm, Steering Knuckle, Lh
45700	45700-39075	Damper Assy, Steering
9010108057	90101-08057	BOLT
9010512110	90105-12110	BOLT
9010512113	90105-12113	New Genuine Part
9011910582	90119-10582	New Genuine Part
9017010208	90170-10208	NUT
9017912020	90179-12020	Nut(For Parking Brake Plate To Rear Axle Housing)
9161141045	91611-41045	Bolt(For Clutch Release Cylinder Setting)
9411041000	94110-41000	Nut(For Steering Damper)
9411050800	94110-50800	Nut(For Repair Actuator Set)
9451102200	94511-02200	WASHER
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9462211200	94622-11200	WASHER
9538103022	95381-03022	Cotter pin
9538103028	95381-03028	PIN

OEM	Part name	Category
04445-35130	Gasket Kit, Power Steering Gear(For Recirculating Ball)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
44107-35160	Housing Sub-Assy, Power Steering Gear	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
44108-60030	Cover Sub-Assy, Side	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
44110-35230	Gear Assy, Power Steering	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
44110-35360	Gear Assy, Power Steering	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
44111-60030	Shaft, Cross	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
44120-35220	Valve Assy, W/ball Nut	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
44142-60020	Nut, Lock	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
44152-30020	Plunger, Power Piston	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
44153-30020	Guide, Power Piston Plunger	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
44154-30020	Nut, Power Piston Plunger Guide	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
44447-35020	Bracket, Hose Support, No.1	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
45046-39355	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
45046-39385	End Sub-Assy, Tie Rod	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
45357-60030	Screw, Cross Shaft Adjusting	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
45401-35240	Arm Sub-Assy, Pitman	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
45406-39185	Rod Sub-Assy, Tie	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
45451-34010	Rod, Steering Relay	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
45460-39355	Rod Assy, Tie, Rh	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
45460-39505	Rod Assy, Tie, Rh	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
45465-35040	Rod, Steering Tie	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
45466-30020	Clamp, Tie Rod End	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
45490-39365	Arm Assy, Steering Idler	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
45611-35130	Arm, Steering Knuckle, Rh	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
45612-35150	Arm, Steering Knuckle, Lh	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
45700-39075	Damper Assy, Steering	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90101-08057	BOLT	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90105-12110	BOLT	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90105-12113	New Genuine Part	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90105-14043	Bolt(For Steering Knuckle Arm Rh)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90119-10582	New Genuine Part	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90170-10208	NUT	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90170-22058	Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90171-12028	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90171-14042	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90179-12020	Nut(For Parking Brake Plate To Rear Axle Housing)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90210-10001	Washer, Seal(For Cross Shaft Adjusting Screw)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90301-37006	Ring, O(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90301-64002	Ring, O(For Side Cover)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90301-68002	Ring, O(For Power Piston Nut)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90301-69002	Ring, O(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90304-31012	Seal, Dust(For Idler Arm Support)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90311-36005	Seal, Oil(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90386-19005	Bush(For Idler Arm)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90410-06005	Seat, Union(Pressure Control Valve Assy)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90501-20095	Spring, Compression(For Power Piston Plunger)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90521-48002	Ring, Hole Snap(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90562-35001	Ring(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90562-36002	Ring(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
90562-71001	Ring(For Power Piston Nut)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
91611-41045	Bolt(For Clutch Release Cylinder Setting)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
94110-41000	Nut(For Steering Damper)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
94110-50800	Nut(For Repair Actuator Set)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
94184-61400	Nut(For Idler Arm Support)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
94511-02200	WASHER	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
94622-11200	WASHER	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
95381-03022	Cotter pin	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
95381-03028	PIN	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
96711-19010	Ring, O(For Oil Level Gage Guide)	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
96711-19014	O-Ring	Front Steering Gear & Link ([08.1994 - ] (9208-9408)VCK20 ; (9408- )VCK21)
