VCH28

Toyota GRANVIA-GRAND-HIACE · 1999 · 4,308 parts · 208 categories

← Back to categories

4,308 items

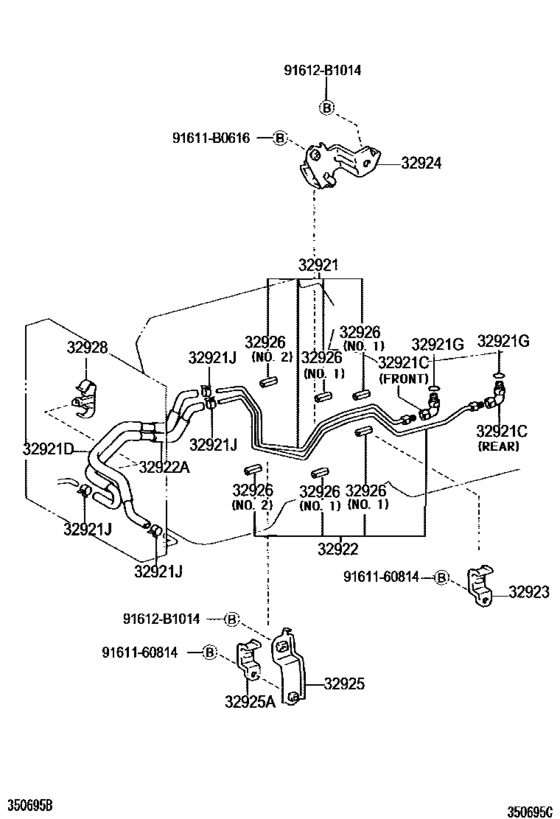

Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28) 17

#	OEM	Part name
32921	32921-26240	Tube, Oil Cooler Inlet, No.1
32921	90407-16009	Union(For Oil Cooler Tube)
32921	90407-16012	Union(For Oil Cooler Tube)
32921	32941-26150	Hose(For Oil Cooler Inlet)
32921	90301-11006	O Ring, Transaxle Case Elbow
32921	90467-16022	Clip(For Water Inlet Hose)
32922	32922-26230	Tube, Oil Cooler Outlet, No.1
32922	32942-26100	Hose(For Oil Cooler Outlet)
32923	32929-24060	Clamp(For Oil Cooler Tube)
32924	32909-34050	Clamp, Automatic Transmission Oil Cooler Tube, No.3
32925	32925-26070	Clamp, Oil Cooler Tube, No.3
32926	32926-30020	Cushion, Oil Cooler Tube(Atm)
32926	32926-32010	Cushion, Oil Cooler Tube(Atm)
32928	32928-26120	Clamp, Flexible Hose, No.1
91611	91611-B0616	Bolt(For Transaxle Case Receiver)
91612	91612-B1014	BOLT WWASHER
9161160814	91611-60814	Bolt

OEM	Part name	Category
32909-34050	Clamp, Automatic Transmission Oil Cooler Tube, No.3	Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28)
32921-26240	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28)
32922-26230	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28)
32925-26070	Clamp, Oil Cooler Tube, No.3	Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28)
32926-30020	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28)
32926-32010	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28)
32928-26120	Clamp, Flexible Hose, No.1	Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28)
32929-24060	Clamp(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28)
32941-26150	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28)
32942-26100	Hose(For Oil Cooler Outlet)	Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28)
90301-11006	O Ring, Transaxle Case Elbow	Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28)
90407-16009	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28)
90407-16012	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28)
91611-60814	Bolt	Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28)
91611-B0616	Bolt(For Transaxle Case Receiver)	Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28)
91612-B1014	BOLT WWASHER	Oil Cooler & Tube (Atm) ([08.1997 - ] A343F (9708- )VCH16,28)
