Search › Model › VCH22

VCH22

Toyota GRANVIA-GRAND-HIACE · 1999 · 4,022 parts · 201 categories

4,022 items

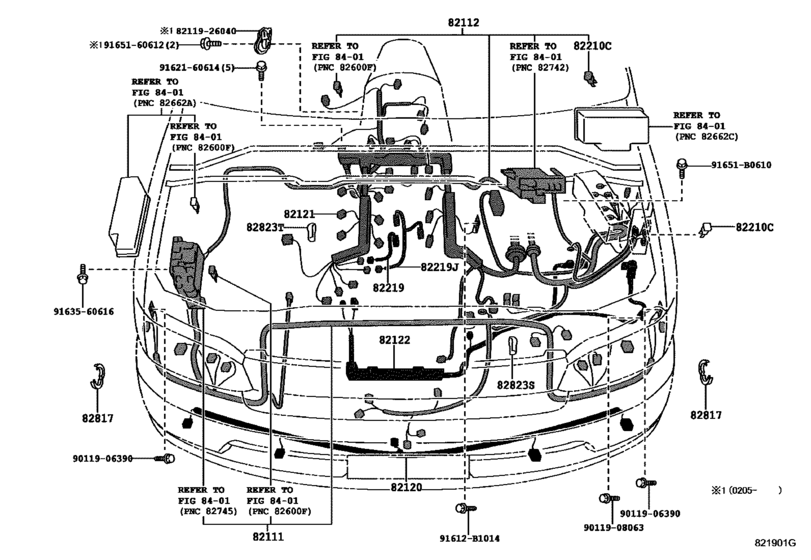

Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#) 24

#	OEM	Part name
82111	82111-2N781	Wire, Engine Room Main
82112	82112-26082	Wire, Engine Room, No.2
82120	82120-26040	Harness Assy, Front End Wire
82120	82120-26050	Harness Assy, Front End Wire
82121	82121-26712	Wire, Engine
82121	82139-26150	Wire, Engine
82122	82122-26410	Wire, Engine, No.2
82210	90982-08190	Fusible Link
82210	90982-08274	Fusible Link
82210	90982-08282	Fusible Link
82219	82219-34020	Wire, Thermo Sensor
82219	82219-34010	Wire, Sensor
82817	82817-2B730	Protector, Wiring Harness, No.1
82823	82823-35050	Cap, Terminal, No.1
82823	82823-22050	Cap, Terminal, No.1
91612	91612-B1014	BOLT WWASHER
91651	91651-B0610	BOLTWWASHER
8211926040	82119-26040	Wire, Sensor
9011906390	90119-06390	BOLT WWASHER
9011908063	90119-08063	BOLT
9162160614	91621-60614	Bolt(For Transaxle & Engine Setting)
9163560616	91635-60616	BOLT WWASHER
9163560616	91631-J0612	BRACKET
9165160612	91651-60612	BOLT

OEM	Part name	Category
82111-2N781	Wire, Engine Room Main	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
82112-26082	Wire, Engine Room, No.2	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
82119-26040	Wire, Sensor	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
82120-26040	Harness Assy, Front End Wire	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
82120-26050	Harness Assy, Front End Wire	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
82121-26712	Wire, Engine	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
82122-26410	Wire, Engine, No.2	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
82139-26150	Wire, Engine	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
82219-34010	Wire, Sensor	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
82219-34020	Wire, Thermo Sensor	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
82817-2B730	Protector, Wiring Harness, No.1	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
82823-22050	Cap, Terminal, No.1	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
82823-35050	Cap, Terminal, No.1	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
90119-06390	BOLT WWASHER	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
90119-08063	BOLT	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
90982-08190	Fusible Link	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
90982-08274	Fusible Link	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
90982-08282	Fusible Link	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
91612-B1014	BOLT WWASHER	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
91621-60614	Bolt(For Transaxle & Engine Setting)	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
91631-J0612	BRACKET	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
91635-60616	BOLT WWASHER	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
91651-60612	BOLT	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
91651-B0610	BOLTWWASHER	Wiring & Clamp ([07.1999 - ] ｴﾝｼﾞﾝﾜｲﾔ (9907- )VCH1#,2#)
