VCH22

Toyota GRANVIA-GRAND-HIACE · 1999 · 4,022 parts · 201 categories

4,022 items

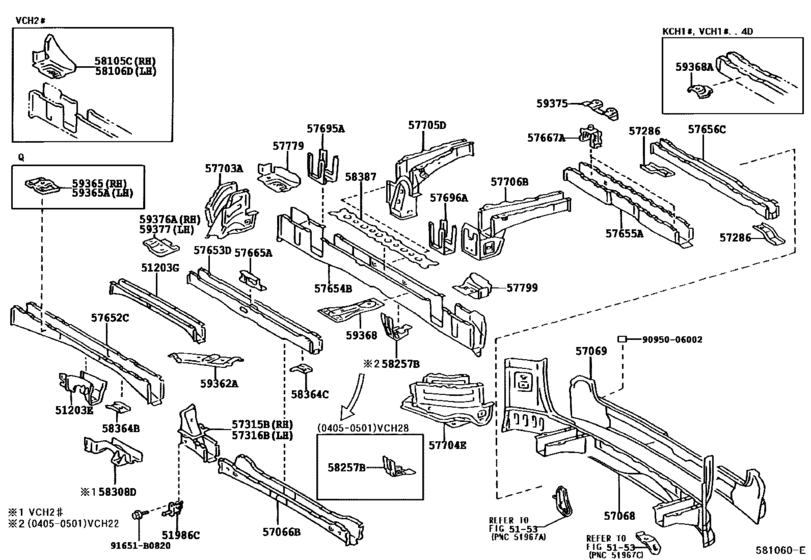

Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- )) 37

#	OEM	Part name
51203	51203-26300	Member, Rear Floor Cross, No.2
51986	51986-26050	Hanger, Exhaust Pipe Support, No.3
57066	57066-26080	Member Sub-Assy, Rear Floor Cross, No.6
57068	57068-26200	Member Sub-Assy, Rear Floor Rear Cross, Inner
57069	57069-26040	Member Sub-Assy, Rear Floor Rear Cross, Outer
57286	57286-26020	Gusset, Rear Floor Crossmember, No.5
57315	57305-26020	Outrigger Sub-Assy, No.3 Rh
57316	57306-26020	Outrigger Sub-Assy, No.3 Lh
57652	57652-26040	Member, Rear Floor Cross, No.1
57652	57652-26100	Member, Rear Floor Cross, No.1
57653	57653-26060	Member, Rear Floor Cross, No.2
57653	57653-26200	Member, Rear Floor Cross, No.2
57654	57654-26080	Member, Rear Floor Cross, No.3
57655	57655-26010	Member, Rear Floor Cross, No.4
57655	57655-26011	Member, Rear Floor Cross, No.4
57656	57656-26020	Member, Rear Floor Croos, No.5
57667	57084-26020	Reinforcement, Rear Floor Crossmember, No.4
57695	57695-26010	Extension, Rear Floor Crossmember Rear Side, Rh
57696	57696-26010	Extension, Rear Floor Crossmember Rear Side, Lh
57703	57703-26030	Bracket Sub-Assy, Rear Suspension Arm, Front Rh
57703	57703-26031	Bracket Sub-Assy, Rear Suspension Arm, Front Rh
57704	57704-26030	Bracket Sub-Assy, Rear Suspension Arm, Front Lh
57704	57704-26031	Bracket Sub-Assy, Rear Suspension Arm, Front Lh
57705	57705-26030	Bracket Sub-Assy, Rear Suspension Arm, Rear Rh
57705	57705-26031	Bracket Sub-Assy, Rear Suspension Arm, Rear Rh
57706	57706-26010	Bracket Sub-Assy, Rear Suspension Arm, Rear Lh
57706	57706-26011	Bracket Sub-Assy, Rear Suspension Arm, Rear Lh
58105	58105-26010	Gusset Sub-Assy, Wheelhouse Inner, Front Rh
58106	58106-26010	Gusset Sub-Assy, Wheelhouse Inner, Front Lh
58257	58257-26020	Retainer, Parking Brake Mounting
58308	58308-26020	Bracket Sub-Assy, Rear Floor Crossmember
58308	58308-26070	Bracket Sub-Assy, Rear Floor Crossmember
58364	58364-26010	Bracket, Fuel Tank Support
58387	58387-26040	Plate, Rear Floor Finish
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
9095006002	90950-06002	Cover, Front Floor Hole

OEM	Part name	Category
51203-26300	Member, Rear Floor Cross, No.2	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
51986-26050	Hanger, Exhaust Pipe Support, No.3	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57066-26080	Member Sub-Assy, Rear Floor Cross, No.6	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57068-26200	Member Sub-Assy, Rear Floor Rear Cross, Inner	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57069-26040	Member Sub-Assy, Rear Floor Rear Cross, Outer	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57084-26020	Reinforcement, Rear Floor Crossmember, No.4	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57286-26020	Gusset, Rear Floor Crossmember, No.5	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57305-26020	Outrigger Sub-Assy, No.3 Rh	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57306-26020	Outrigger Sub-Assy, No.3 Lh	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57652-26040	Member, Rear Floor Cross, No.1	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57652-26100	Member, Rear Floor Cross, No.1	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57653-26060	Member, Rear Floor Cross, No.2	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57653-26200	Member, Rear Floor Cross, No.2	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57654-26080	Member, Rear Floor Cross, No.3	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57655-26010	Member, Rear Floor Cross, No.4	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57655-26011	Member, Rear Floor Cross, No.4	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57656-26020	Member, Rear Floor Croos, No.5	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57695-26010	Extension, Rear Floor Crossmember Rear Side, Rh	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57696-26010	Extension, Rear Floor Crossmember Rear Side, Lh	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57703-26030	Bracket Sub-Assy, Rear Suspension Arm, Front Rh	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57703-26031	Bracket Sub-Assy, Rear Suspension Arm, Front Rh	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57704-26030	Bracket Sub-Assy, Rear Suspension Arm, Front Lh	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57704-26031	Bracket Sub-Assy, Rear Suspension Arm, Front Lh	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57705-26030	Bracket Sub-Assy, Rear Suspension Arm, Rear Rh	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57705-26031	Bracket Sub-Assy, Rear Suspension Arm, Rear Rh	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57706-26010	Bracket Sub-Assy, Rear Suspension Arm, Rear Lh	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
57706-26011	Bracket Sub-Assy, Rear Suspension Arm, Rear Lh	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
58105-26010	Gusset Sub-Assy, Wheelhouse Inner, Front Rh	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
58106-26010	Gusset Sub-Assy, Wheelhouse Inner, Front Lh	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
58257-26020	Retainer, Parking Brake Mounting	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
58308-26020	Bracket Sub-Assy, Rear Floor Crossmember	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
58308-26070	Bracket Sub-Assy, Rear Floor Crossmember	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
58364-26010	Bracket, Fuel Tank Support	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
58387-26040	Plate, Rear Floor Finish	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
90080-11347	New Genuine Part	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
90950-06002	Cover, Front Floor Hole	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
91651-B0820	Bolt, Radiator Side Support Plate	Rear Floor Panel & Rear Floor Member ([07.1999 - ] (9907- ))
