Search › Model › VCH22

VCH22

Toyota GRANVIA-GRAND-HIACE · 1999 · 4,022 parts · 201 categories

4,022 items

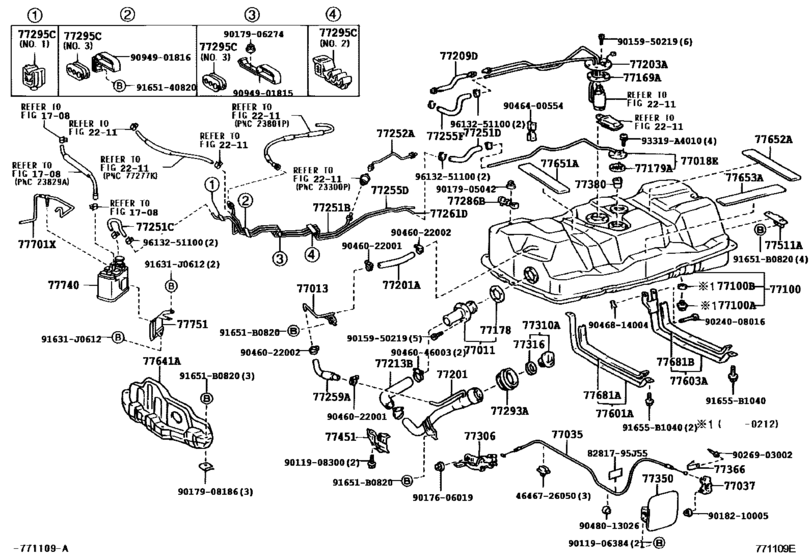

Fuel Tank & Tube ([05.2002 - ] (0205- )) 95

#	OEM	Part name
77011	77011-26050	Pipe Sub-Assy, Fuel Tank Filler, Lower
77013	77013-26110	Tube Sub-Assy, Fuel Tank Breather, No.2
77018	77018-26191	Tube Sub-Assy, Fuel Tank Evaporation Vent
77035	77035-26020	Cable Sub-Assy, Fuel Lid Lock Control
77035	77035-26021	Cable Sub-Assy, Fuel Lid Lock Control
77037	77037-95D01	Lock Sub-Assy, Fuel Filler Opening Lid
77100	77001-26604	Tank Assy, Fuel
77100	77001-26605	Tank Assy, Fuel
77100	77001-26614	Tank Assy, Fuel
77100	77001-26660	Tank Assy, Fuel
77100	90105-12116	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77169	77169-32010	Gasket, Fuel Pump Bracket
77178	77178-20030	Gasket, Fuel Tank Filler Pipe, Lower
77179	77179-26010	Gasket, Fuel Tank Evap/vent Tube
77179	77179-26011	Gasket, Fuel Suction Tube Set, No.1
77201	77201-26200	Pipe Sub-Assy, Fuel Tank Inlet
77201	95312-13017	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77201	95313-13017	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77203	77203-26160	Tube Sub-Assy, Fuel Suction
77209	77209-26060	Tube Sub-Assy, Fuel Tank Main
77213	77213-26100	Hose, Fuel Tank To Filler Pipe
77213	77213-26110	Hose, Fuel Tank To Filler Pipe
77251	77251-26830	Tube, Fuel Main
77251	77251-2F030	Tube, Fuel Main
77251	77259-26110	Hose, Fuel, No.1(For Fuel Main Tube)
77251	95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
77251	95337-06020	Hose, Differential Pressure Control
77251	95333-06030	Hose, Fuel
77251	95338-06030	HOSE, FUEL
77251	95334-06028	Hose, Fuel
77251	95337-06030	Hose, Fuel, No.2 (For Main Tube, No.2)
77252	77252-26140	Tube, Fuel Main, No.2
77252	77252-26150	Tube, Fuel Main, No.2
77255	77255-26530	Tube, Fuel Return
77255	77255-26620	Tube, Fuel Return
77259	77259-26050	Hose, Fuel(For Breather Tube)
77259	77259-26090	Hose, Fuel(For Breather Tube)
77261	77261-26090	Tube, Fuel Tank To Canister
77261	77261-26130	Tube, Fuel Tank To Canister
77286	77285-26020	Clamp, Fuel Tube W/grommet, No.2
77293	77293-26010	Shield, Fuel Tank Filler Pipe, No.3
77295	77295-25060	Grommet, Fuel Tube
77295	77295-26030	Grommet, Fuel Tube
77295	77295-26040	Grommet, Fuel Tube
77295	77295-35110	Grommet, Fuel Tube
77306	77306-26020	Lever Sub-Assy, Fuel Lid Lock Open
77310	77310-48010	Cap Assy, Fuel Tank
77316	77316-16010	Gasket (For Fuel Tank Cap)
77350	77350-26020	Lid Assy, Fuel Filler Opening
77366	77366-95J01	Spring, Fuel Filler Opening Lid Hinge
77380	77380-26010	Valve Assy, Fuel Cut Off
77451	77451-26030	Protector, Fuel Inlet Hose
77511	77511-26050	Bracket, Fuel Tank
77601	77601-26080	Band Sub-Assy, Fuel Tank, No.1
77603	77603-26070	Band Sub-Assy, Fuel Tank, No.2
77641	77641-26020	Protector, Fuel Tank, No.1
77651	77651-26070	Cushion, Fuel Tank, No.1
77652	77653-26040	Cushion, Fuel Tank, No.1
77681	77681-32060	Seat, Fuel Tank Band, Rh
77681	77681-26050	Seat, Fuel Tank Band
77701	77701-26020	Hose Sub-Assy, Canister Outlet, No.1
77740	77704-26090	Canister Assy, Charcoal
77740	77704-26110	Canister Assy, Charcoal
77751	77751-26080	Bracket, Charcoal Canister Base
77751	77751-26100	Bracket, Charcoal Canister Base
91631	91631-J0612	BRACKET
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
91655	91655-B1040	BOLT WWASHER
93319	93319-A4010	SCREW WWASHER
8281795	82817-95J55	Support, Slide Roof Rain Channel Hose
4646726050	46467-26050	Clamp, Cable
9011906384	90119-06384	New Genuine Part
9011908300	90119-08300	New Genuine Part
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9017606019	90176-06019	Nut (For Rear Wiper Arm Setting)
9017905042	90179-05042	NUT
9017906274	90179-06274	Nut
9017908186	90179-08186	New Genuine Part
9018210005	90182-10005	NUT WWASHER
9024008016	90240-08016	New Genuine Part
9026903002	90269-03002	RIVET
9046022001	90460-22001	CLAMP
9046022002	90460-22002	CLAMP
9046046003	90460-46003	Clamp (For Fuel Filler Pipe)
9046046003	90460-46005	Clamp (For Fuel Filler Pipe)
9046400554	90464-00554	New Genuine Part
9046814004	90468-14004	Union, Auxiliary Fuel Band
9048013026	90480-13026	New Genuine Part
9094901815	90949-01815	New Genuine Part
9094901816	90949-01816	New Genuine Part
9165140820	91651-40820	Bolt
9613251100	96132-51100	Clip (For Hose)

OEM	Part name	Category
46467-26050	Clamp, Cable	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77001-26604	Tank Assy, Fuel	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77001-26605	Tank Assy, Fuel	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77001-26614	Tank Assy, Fuel	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77001-26660	Tank Assy, Fuel	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77011-26050	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77013-26110	Tube Sub-Assy, Fuel Tank Breather, No.2	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77018-26191	Tube Sub-Assy, Fuel Tank Evaporation Vent	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77035-26020	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77035-26021	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77037-95D01	Lock Sub-Assy, Fuel Filler Opening Lid	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77169-32010	Gasket, Fuel Pump Bracket	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77178-20030	Gasket, Fuel Tank Filler Pipe, Lower	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77179-26010	Gasket, Fuel Tank Evap/vent Tube	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77179-26011	Gasket, Fuel Suction Tube Set, No.1	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77201-26200	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77203-26160	Tube Sub-Assy, Fuel Suction	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77209-26060	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77213-26100	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77213-26110	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77251-26830	Tube, Fuel Main	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77251-2F030	Tube, Fuel Main	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77252-26140	Tube, Fuel Main, No.2	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77252-26150	Tube, Fuel Main, No.2	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77255-26530	Tube, Fuel Return	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77255-26620	Tube, Fuel Return	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77259-26050	Hose, Fuel(For Breather Tube)	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77259-26090	Hose, Fuel(For Breather Tube)	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77259-26110	Hose, Fuel, No.1(For Fuel Main Tube)	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77261-26090	Tube, Fuel Tank To Canister	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77261-26130	Tube, Fuel Tank To Canister	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77285-26020	Clamp, Fuel Tube W/grommet, No.2	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77293-26010	Shield, Fuel Tank Filler Pipe, No.3	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77295-25060	Grommet, Fuel Tube	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77295-26030	Grommet, Fuel Tube	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77295-26040	Grommet, Fuel Tube	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77295-35110	Grommet, Fuel Tube	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77306-26020	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77310-48010	Cap Assy, Fuel Tank	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77316-16010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77350-26020	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77366-95J01	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77380-26010	Valve Assy, Fuel Cut Off	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77451-26030	Protector, Fuel Inlet Hose	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77511-26050	Bracket, Fuel Tank	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77601-26080	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77603-26070	Band Sub-Assy, Fuel Tank, No.2	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77641-26020	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77651-26070	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77653-26040	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77681-26050	Seat, Fuel Tank Band	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77681-32060	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77701-26020	Hose Sub-Assy, Canister Outlet, No.1	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77704-26090	Canister Assy, Charcoal	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77704-26110	Canister Assy, Charcoal	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77751-26080	Bracket, Charcoal Canister Base	Fuel Tank & Tube ([05.2002 - ] (0205- ))
77751-26100	Bracket, Charcoal Canister Base	Fuel Tank & Tube ([05.2002 - ] (0205- ))
82817-95J55	Support, Slide Roof Rain Channel Hose	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90080-11347	New Genuine Part	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90105-12116	Plug(For Fuel Tank)	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90119-06384	New Genuine Part	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90119-08300	New Genuine Part	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90159-50219	BOLT	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90159-A0057	New Genuine Part	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90176-06019	Nut (For Rear Wiper Arm Setting)	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90179-05042	NUT	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90179-06274	Nut	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90179-08186	New Genuine Part	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90182-10005	NUT WWASHER	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90240-08016	New Genuine Part	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90269-03002	RIVET	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90460-22001	CLAMP	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90460-22002	CLAMP	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90460-46003	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90464-00554	New Genuine Part	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90468-14004	Union, Auxiliary Fuel Band	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90480-13026	New Genuine Part	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90949-01815	New Genuine Part	Fuel Tank & Tube ([05.2002 - ] (0205- ))
90949-01816	New Genuine Part	Fuel Tank & Tube ([05.2002 - ] (0205- ))
91631-J0612	BRACKET	Fuel Tank & Tube ([05.2002 - ] (0205- ))
91651-40820	Bolt	Fuel Tank & Tube ([05.2002 - ] (0205- ))
91651-B0820	Bolt, Radiator Side Support Plate	Fuel Tank & Tube ([05.2002 - ] (0205- ))
91655-B1040	BOLT WWASHER	Fuel Tank & Tube ([05.2002 - ] (0205- ))
93319-A4010	SCREW WWASHER	Fuel Tank & Tube ([05.2002 - ] (0205- ))
95312-13017	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)	Fuel Tank & Tube ([05.2002 - ] (0205- ))
95313-13017	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)	Fuel Tank & Tube ([05.2002 - ] (0205- ))
95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Tank & Tube ([05.2002 - ] (0205- ))
95333-06030	Hose, Fuel	Fuel Tank & Tube ([05.2002 - ] (0205- ))
95334-06028	Hose, Fuel	Fuel Tank & Tube ([05.2002 - ] (0205- ))
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([05.2002 - ] (0205- ))
95337-06030	Hose, Fuel, No.2 (For Main Tube, No.2)	Fuel Tank & Tube ([05.2002 - ] (0205- ))
95338-06030	HOSE, FUEL	Fuel Tank & Tube ([05.2002 - ] (0205- ))
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([05.2002 - ] (0205- ))
