VCH22

Toyota GRANVIA-GRAND-HIACE · 1999 · 4,022 parts · 201 categories

← Back to categories

4,022 items

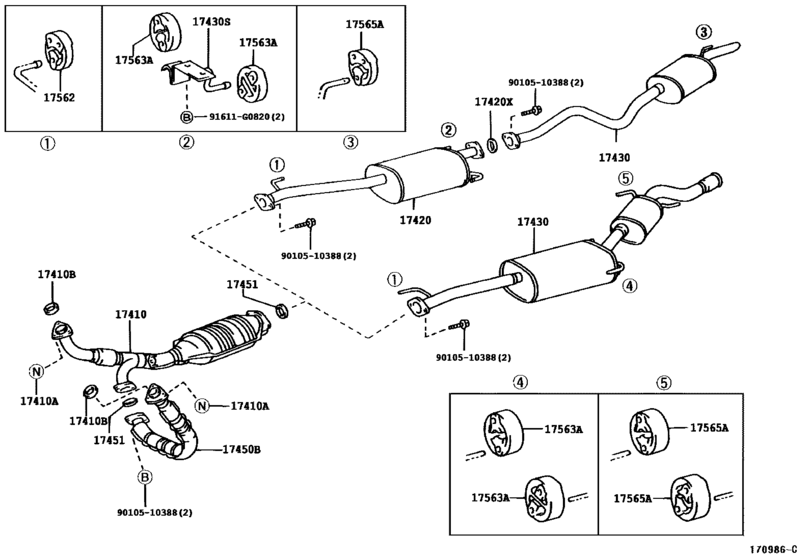

Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE) 19

#	OEM	Part name
17410	17410-62110	Pipe Assy, Exhaust, Front
17410	17410-62170	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06065	Gasket, Exhaust Pipe
17410	90917-06067	Gasket, Exhaust Pipe
17430	17430-62280	Pipe Assy, Exhaust, Tail
17430	17430-62290	Pipe Assy, Exhaust, Tail
17450	17450-62030	Pipe Assy, Exhaust, Front No.2
17451	90917-06062	Gasket, Exhaust Pipe
17451	90080-43034	Gasket, Exhaust Pipe
17451	90917-06072	Gasket, Exhaust Pipe
17451	90917-06076	Gasket, Exhaust Pipe, Center
17562	17561-74110	SUPPORT, EXHAUST PIPE
17563	17565-16080	Bolt Or Ring, Exhaust Tail Pipe (For Rear)
17563	17565-74280	Support, Exhaust Pipe, No.1
17563	17565-74290	Support, Exhaust Pipe, No.2
91611	91611-G0820	Bolt
9010510388	90105-10388	BOLT

OEM	Part name	Category
17410-62110	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
17410-62170	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
17430-62280	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
17430-62290	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
17450-62030	Pipe Assy, Exhaust, Front No.2	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
17561-74110	SUPPORT, EXHAUST PIPE	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
17565-16080	Bolt Or Ring, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
17565-74280	Support, Exhaust Pipe, No.1	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
17565-74290	Support, Exhaust Pipe, No.2	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
90080-43034	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
90105-10388	BOLT	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
90917-06062	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
90917-06065	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
90917-06067	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
90917-06072	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
90917-06076	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
91611-G0820	Bolt	Exhaust Pipe ([08.1997 - 05.2002] (9708-0205)5VZFE)
