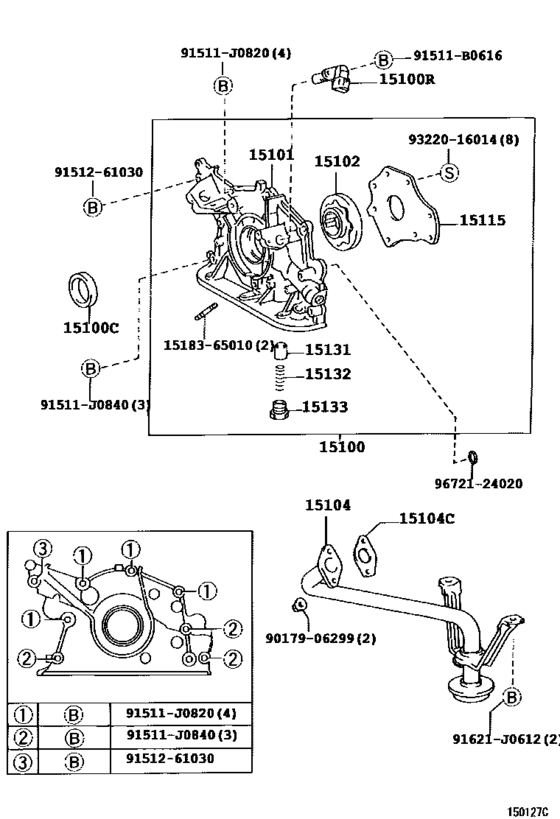

| 15100-62050 |
Pump Assy, Oil |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 15101-62050 |
Body Sub-Assy, Oil Pump |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 15103-62030 |
Rotor Set, Oil Pump |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 15104-62080 |
Strainer Sub-Assy, Oil |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 15115-62040 |
Cover, Oil Pump |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 15131-24010 |
Valve, Oil Pump Relief |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 15132-20020 |
Spring, Oil Pump Relief Valve |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 15133-24010 |
Plug, Oil Pump Relief Valve |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 15147-62020 |
Gasket(For Oil Strainer) |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 15183-65010 |
Bolt, Union(for Oil Pump) |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 90080-10164 |
BOLT, FLANGE |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 90179-06299 |
Nut, Wire Adjusting, No.1 |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 90311-40022 |
Oil Seal (For Oil Pump) |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 90919-05020 |
Sensor, Crank Position |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 91511-B0616 |
BOLT, FLANGE |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 91511-J0820 |
Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 91511-J0840 |
Bolt(For Alternator) |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 91512-61030 |
Bolt (For Transaxle Case Upper Cover) |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 91621-J0612 |
BOLT W-WASHER |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 93220-16014 |
SCREW |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
| 96721-24020 |
O-Ring |
Engine Oil Pump ([08.1997 - ] (9708- )5VZFE) |
