VCH22

Toyota GRANVIA-GRAND-HIACE · 1999 · 4,022 parts · 201 categories

4,022 items

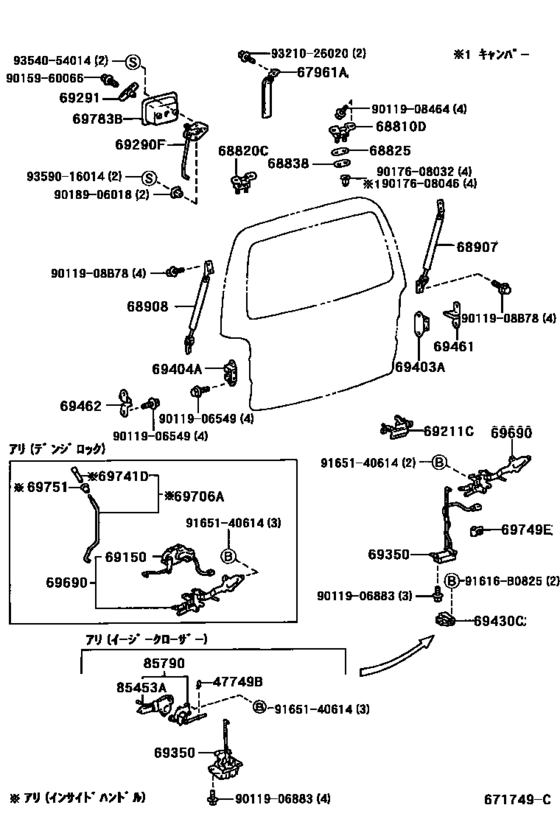

Back Door Lock & Hinge ([08.1995 - ] (9508- )) 53

#	OEM	Part name
47749	47749-26010	Clip, Pin Hold
67961	67908-26040	Strap, Back Door Pull
68810	68810-26010	Hinge Assy, Back Door, Rh
68810	68810-26011	Hinge Assy, Back Door, Rh
68820	68820-26010	Hinge Assy, Back Door, Lh
68820	68820-26011	Hinge Assy, Back Door, Lh
68825	68825-26020	Plate, Back Door Hinge
68825	68826-26020	Plate, Back Door Hinge
68838	68838-26020	Pad, Back Door Hinge, No.1
68907	68907-26450	Stay Sub-Assy, Back Door Damper, Rh
68907	68907-26451	Stay Sub-Assy, Back Door Damper, Rh
68907	68907-26840	Stay Sub-Assy, Back Door Damper, Rh
68908	68908-26450	Stay Sub-Assy, Back Door Damper, Lh
68908	68908-26451	Stay Sub-Assy, Back Door Damper, Lh
68908	68908-26840	Stay Sub-Assy, Back Door Damper, Lh
69150	69150-26010	Actuator Assy, Back Door Lock
69211	69023-26020	Handle, Back Door Outside
69290	69290-26010	Handle Assy, Back Door Inside
69291	69291-95J00-A0	Handle Assy, Back Door Inside
69291	69291-95J00-B5	Handle Assy, Back Door Inside
69291	69291-95J00-E3	Handle Assy, Back Door Inside
69291	69291-95J00-B6	Handle Assy, Back Door Inside
69350	69350-26020	Lock Assy, Back Door
69350	69350-26040	Lock Assy, Back Door
69403	69403-26040	Stopper Sub-Assy, Back Door Side Female, Rh
69403	69403-26041	Stopper Sub-Assy, Back Door Side Female, Rh
69430	69430-26010	Striker Assy, Back Door Lock
69430	69430-95J00	Striker Assy, Back Door Lock
69461	69401-26020	Stopper, Back Door Side Male, Rh
69461	69401-26021	Stopper, Back Door Side Male, Rh
69690	69690-26050	Control Assy, Back Door Remote
69706	69706-26020	Rod Sub-Assy, Back Door Lock Remote Control
69741	69741-28010-C1	Knob, Back Door Lock Control (Black)
69749	69749-30020	Clamp, No.1(For Back Door Lock Control Cable)
69751	69751-95J00-C0	Holder, Door Lock Control Knob
69783	69783-95J01-A0	Bezel, Back Door Inside Handle
69783	69783-95J02-B4	Bezel, Back Door Inside Handle
69783	69783-95J01-E3	Bezel, Back Door Inside Handle
85453	85453-26020	Motor, Door Control
85790	85790-26020	Motor Assy, Back Door Closer
91616	91616-B0825	New Genuine Part
9011908	90119-08B78	BOLT, W/WASHER
9011906549	90119-06549	BOLT WWASHER
9011906883	90119-06883	New Genuine Part
9011908464	90119-08464	Bolt, W/washer(For Side Gate, Rh)
9015960066	90159-60066	New Genuine Part
9017608032	90176-08032	New Genuine Part
9017608046	90176-08046	New Genuine Part
9018906018	90189-06018	GROMMET
9165140614	91651-40614	Bolt
9321026020	93210-26020	New Genuine Part
9354054014	93540-54014	SCREW
9359016014	93590-16014	New Genuine Part

OEM	Part name	Category
47749-26010	Clip, Pin Hold	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
67908-26040	Strap, Back Door Pull	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
68810-26010	Hinge Assy, Back Door, Rh	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
68810-26011	Hinge Assy, Back Door, Rh	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
68820-26010	Hinge Assy, Back Door, Lh	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
68820-26011	Hinge Assy, Back Door, Lh	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
68825-26020	Plate, Back Door Hinge	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
68826-26020	Plate, Back Door Hinge	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
68838-26020	Pad, Back Door Hinge, No.1	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
68907-26450	Stay Sub-Assy, Back Door Damper, Rh	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
68907-26451	Stay Sub-Assy, Back Door Damper, Rh	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
68907-26840	Stay Sub-Assy, Back Door Damper, Rh	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
68908-26450	Stay Sub-Assy, Back Door Damper, Lh	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
68908-26451	Stay Sub-Assy, Back Door Damper, Lh	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
68908-26840	Stay Sub-Assy, Back Door Damper, Lh	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69023-26020	Handle, Back Door Outside	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69150-26010	Actuator Assy, Back Door Lock	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69290-26010	Handle Assy, Back Door Inside	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69291-95J00-A0	Handle Assy, Back Door Inside	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69291-95J00-B5	Handle Assy, Back Door Inside	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69291-95J00-B6	Handle Assy, Back Door Inside	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69291-95J00-E3	Handle Assy, Back Door Inside	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69350-26020	Lock Assy, Back Door	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69350-26040	Lock Assy, Back Door	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69401-26020	Stopper, Back Door Side Male, Rh	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69401-26021	Stopper, Back Door Side Male, Rh	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69403-26040	Stopper Sub-Assy, Back Door Side Female, Rh	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69403-26041	Stopper Sub-Assy, Back Door Side Female, Rh	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69430-26010	Striker Assy, Back Door Lock	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69430-95J00	Striker Assy, Back Door Lock	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69690-26050	Control Assy, Back Door Remote	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69706-26020	Rod Sub-Assy, Back Door Lock Remote Control	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69741-28010-C1	Knob, Back Door Lock Control (Black)	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69749-30020	Clamp, No.1(For Back Door Lock Control Cable)	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69751-95J00-C0	Holder, Door Lock Control Knob	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69783-95J01-A0	Bezel, Back Door Inside Handle	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69783-95J01-E3	Bezel, Back Door Inside Handle	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
69783-95J02-B4	Bezel, Back Door Inside Handle	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
85453-26020	Motor, Door Control	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
85790-26020	Motor Assy, Back Door Closer	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
90119-06549	BOLT WWASHER	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
90119-06883	New Genuine Part	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
90119-08464	Bolt, W/washer(For Side Gate, Rh)	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
90119-08B78	BOLT, W/WASHER	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
90159-60066	New Genuine Part	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
90176-08032	New Genuine Part	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
90176-08046	New Genuine Part	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
90189-06018	GROMMET	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
91616-B0825	New Genuine Part	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
91651-40614	Bolt	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
93210-26020	New Genuine Part	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
93540-54014	SCREW	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
93590-16014	New Genuine Part	Back Door Lock & Hinge ([08.1995 - ] (9508- ))
