Search › Model › VCH22
VCH22

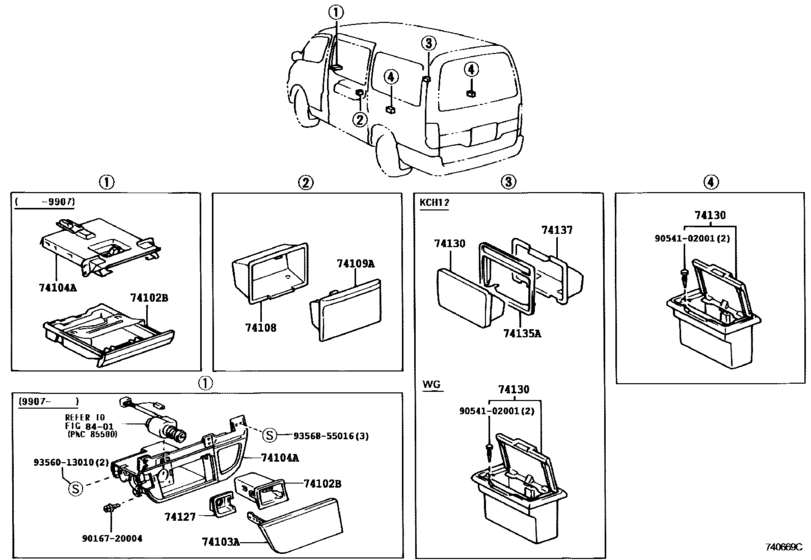

Ash Receptacle ([08.1995 - ] (9508- )) 8
| # | OEM | Part name |
|---|---|---|
| 74102 | 74102-26060 | Box Sub-Assy, Front Ash Receptacle |
| 74103 | 74103-26020-A0 | Door Sub-Assy, Front Ash Receptacle |
| 74104 | 74104-26060-A0 | Retainer Sub-Assy, Front Ash Receptacle |
| 74127 | 74127-26010 | Bezel, Front Ash Receptacle |
| 9016720004 | 90167-20004 | New Genuine Part |
| 9054102001 | 90541-02001 | Pin, Straght(For Coin Box Panel) |
| 9356013010 | 93560-13010 | New Genuine Part |
| 9356855016 | 93568-55016 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 74102-26060 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([08.1995 - ] (9508- )) |
| 74103-26020-A0 | Door Sub-Assy, Front Ash Receptacle | Ash Receptacle ([08.1995 - ] (9508- )) |
| 74104-26060-A0 | Retainer Sub-Assy, Front Ash Receptacle | Ash Receptacle ([08.1995 - ] (9508- )) |
| 74127-26010 | Bezel, Front Ash Receptacle | Ash Receptacle ([08.1995 - ] (9508- )) |
| 90167-20004 | New Genuine Part | Ash Receptacle ([08.1995 - ] (9508- )) |
| 90541-02001 | Pin, Straght(For Coin Box Panel) | Ash Receptacle ([08.1995 - ] (9508- )) |
| 93560-13010 | New Genuine Part | Ash Receptacle ([08.1995 - ] (9508- )) |
| 93568-55016 | Screw | Ash Receptacle ([08.1995 - ] (9508- )) |
