VCH16

Toyota GRANVIA-GRAND-HIACE · 1997 · 5,354 parts · 220 categories

5,354 items

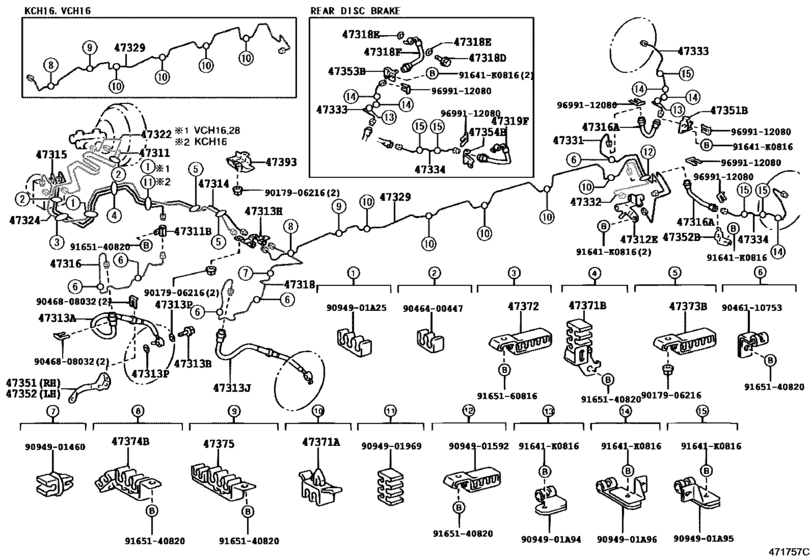

Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G) 51

#	OEM	Part name
47311	47311-26721	Tube, Front Brake, No.1
47311	90412-10165	Way, No.1(For Front Brake Tube)
47312	90904-13035	Way, No.2(For Front Brake Tube)
47313	90947-02C03	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90904-12058	Way, No.3(For Front Brake Tube)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47314	47314-26270	Tube, Front Brake, No.4
47315	47315-26190	Tube, Front Brake, No.5
47316	47316-26290	Tube, Front Brake, No.6
47316	90947-02C02	Hose, Flexible(For Rear Brake Tube)
47318	47318-26110	Tube, Front Brake, No.8
47318	90947-02C13	Hose, Flexible(For Rear Rh)
47319	90947-02C14	Hose, Flexible(For Rear Lh)
47322	47322-26321	Tube, Front Brake, No.2
47324	47324-26431	Tube, Rear Brake, No.4
47329	47329-26190	Tube, Rear Brake, No.9
47331	47331-26110	Tube, Rear Brake, No.10
47332	47332-26060	Tube, Rear Brake, No.11
47333	47333-26040	Tube, Rear Brake, No.5
47334	47334-26050	Tube, Rear Brake, No.6
47351	47351-26160	Bracket, Flexible Hose(For Front Rh)
47351	47351-26200	Bracket, Flexible Hose, No.1
47352	47352-26150	Bracket, Flexible Hose(For Front Lh)
47352	47352-26180	Bracket, Flexible Hose, No.2
47353	47351-26180	Bracket, Flexible Hose, No.2
47354	47352-26160	Bracket, Flexible Hose, No.4
47371	90469-05013	Clamp, Brake Tube, No.1
47371	47371-26160	Clamp, Brake Tube, No.6
47372	47371-26050	Clamp, Brake Tube, No.1
47374	47371-26140	Clamp, Brake Tube, No.6
47375	47371-26150	Clamp, Brake Tube, No.7
47393	47393-26050	Insulator, Brake Tube Heat
91641	91641-K0816	BOLT WWASHER
9094901	90949-01A25	Clamp, Brake Tube, No.1
9094901	90949-01A94	New Genuine Part
9094901	90949-01A95	New Genuine Part
9094901	90949-01A96	New Genuine Part
9017906216	90179-06216	Direct
9017906216	90179-06274	Nut
9046110753	90461-10753	New Genuine Part
9046400447	90464-00447	Clamp, Brake Tube, No.3
9046808032	90468-08032	CLIP
9094901460	90949-01460	Clamp
9094901592	90949-01592	New Genuine Part
9094901969	90949-01969	Clamp, Brake Tube, No.6
9094901969	90080-46365	Clamp, Brake Tube, No.5
9165140820	91651-40820	Bolt
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9699112080	96991-12080	Clip

OEM	Part name	Category
47311-26721	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47314-26270	Tube, Front Brake, No.4	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47315-26190	Tube, Front Brake, No.5	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47316-26290	Tube, Front Brake, No.6	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47318-26110	Tube, Front Brake, No.8	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47322-26321	Tube, Front Brake, No.2	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47324-26431	Tube, Rear Brake, No.4	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47329-26190	Tube, Rear Brake, No.9	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47331-26110	Tube, Rear Brake, No.10	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47332-26060	Tube, Rear Brake, No.11	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47333-26040	Tube, Rear Brake, No.5	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47334-26050	Tube, Rear Brake, No.6	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47351-26160	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47351-26180	Bracket, Flexible Hose, No.2	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47351-26200	Bracket, Flexible Hose, No.1	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47352-26150	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47352-26160	Bracket, Flexible Hose, No.4	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47352-26180	Bracket, Flexible Hose, No.2	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47371-26050	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47371-26140	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47371-26150	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47371-26160	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
47393-26050	Insulator, Brake Tube Heat	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90080-11396	Bolt	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90080-46365	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90179-06216	Direct	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90179-06274	Nut	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90412-10165	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90461-10753	New Genuine Part	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90464-00447	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90468-08032	CLIP	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90469-05013	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90904-12058	Way, No.3(For Front Brake Tube)	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90904-13035	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90947-02C02	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90947-02C03	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90947-02C13	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90947-02C14	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90949-01460	Clamp	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90949-01592	New Genuine Part	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90949-01969	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90949-01A25	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90949-01A94	New Genuine Part	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90949-01A95	New Genuine Part	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
90949-01A96	New Genuine Part	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
91641-K0816	BOLT WWASHER	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
91651-40820	Bolt	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
91651-60816	BOLT	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
96991-12080	Clip	Brake Tube & Clamp ([07.1999 - 05.2002] ｱﾘ(ABS) (9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G)
