Search › Model › VCH10
VCH10

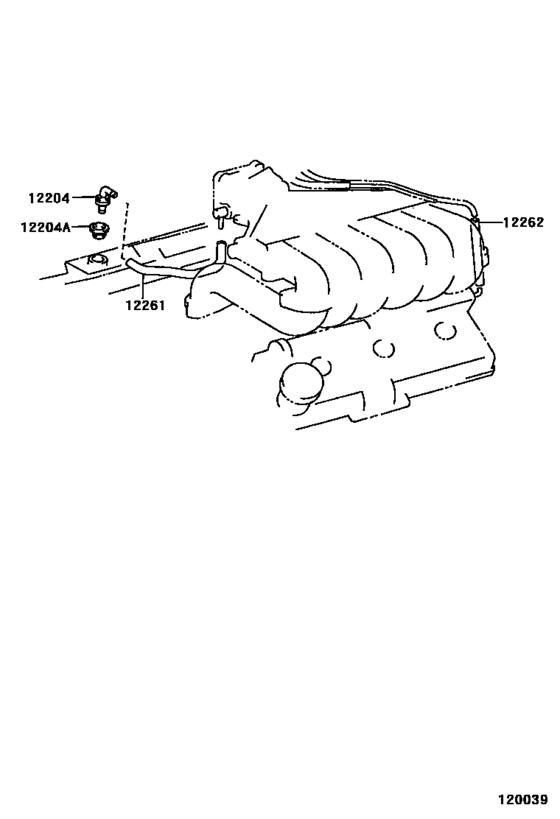

Ventilation Hose ([08.1997 - ] (9708- )5VZFE) 4
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-62010 | Valve Sub-Assy, Ventilation |
| 12204 | 90480-18001 | Grommet(For Ventilation System) |
| 12261 | 12261-62041 | Hose, Ventilation |
| 12262 | 12262-62050 | Hose, Ventilation, No.2 |
| OEM | Part name | Category |
|---|---|---|
| 12204-62010 | Valve Sub-Assy, Ventilation | Ventilation Hose ([08.1997 - ] (9708- )5VZFE) |
| 12261-62041 | Hose, Ventilation | Ventilation Hose ([08.1997 - ] (9708- )5VZFE) |
| 12262-62050 | Hose, Ventilation, No.2 | Ventilation Hose ([08.1997 - ] (9708- )5VZFE) |
| 90480-18001 | Grommet(For Ventilation System) | Ventilation Hose ([08.1997 - ] (9708- )5VZFE) |
