VCH10

Toyota GRANVIA-GRAND-HIACE · 1997 · 5,092 parts · 213 categories
VCH10 ×

← Back to categories

5,092 items

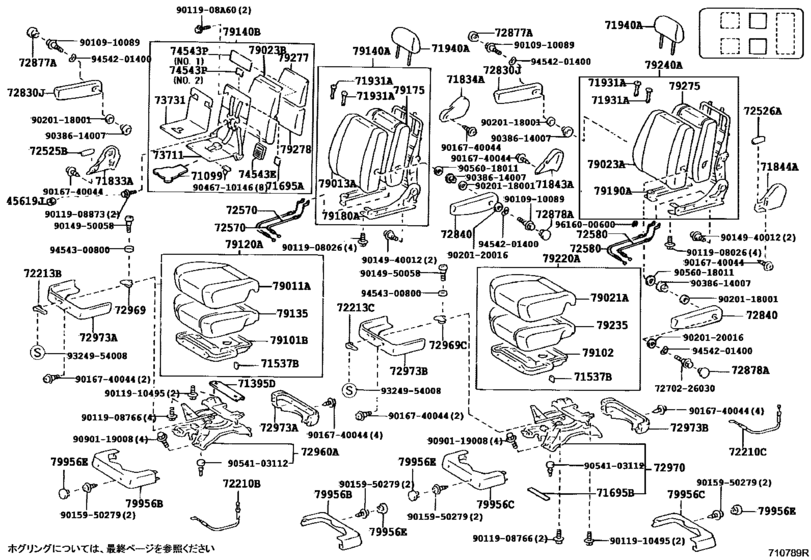

Seat & Seat Track ([08.1997 - ] ﾘﾔ NO.1 ｼ-ﾄ (9708- )07S) 99
#OEMPart name
45619 45619-28020 Cover, Knuckle Stopper
71099 71099-33010 Cover Sub-Assy, Rear Seat Back, Lower Lh
71395 71395-26020 Plate, Rr Seat Cushion Support
71537 71537-26010 Protector, Front Seat Cushion
71695 71695-26030 Protector, Rear Seat, No.1 Rh
71833 71811-26050-A0 Cover, Rear Seat Reclining, No.1 Rh
71833 71811-26050-B1 Cover, Rear Seat Reclining, No.1 Rh
71834 71812-26050-A0 Cover, Rear Seat Reclining, No.1 Lh
71834 71812-26020-B0 Cover, Reclining Adjuster, Lh
71843 71811-26060-A0 Cover, Rear Seat Reclining, No.2 Rh
71843 71811-26030-B0 Cover, Reclining Adjuster, Rh
71844 71812-26040-A0 Cover, Rear Seat Reclining, No.2 Lh
71844 71812-26040-B0 Cover, Rear Seat Reclining, No.2 Lh
71931 71930-28030-A1 Support, Front Seat Headrest
71931 71930-28030-C0 Support, Front Seat Headrest
71931 71931-28030-A1 Support, Front Seat Headrest
71931 71931-28030-C0 Support, Front Seat Headrest (BLACK)
71940 71940-26170-A0 Headrest Assy, Rear Seat
71940 71940-26240-A0 Headrest Assy, Rear Seat
71940 71940-26220-A0 Headrest Assy, Rear Seat
72210 72210-26150 Cable Assy, Seat Track Control, Rh
72213 72213-28020-E1 Knob, Seat Track Adjusting Handle, Rh
72213 72213-28020-B0 Knob, Seat Track Adjusting Handle
72525 72525-26060-A0 Handle, Reclining Adjuster Release, Rh
72525 72525-26060-B1 Handle, Reclining Adjuster Release, Rh
72526 72525-26070-A0 Handle, Reclining Adjuster Release, Lh
72526 72525-26070-B1 Handle, Reclining Adjuster Release, Lh
72570 72570-26030 Adjuster Assy, Rear Reclining Seat, Rh
72570 72580-26040 Adjuster Assy, Rear Reclining Seat, Rh
72830 72830-26230-A0 Armrest Assy, Rear No.1 Seat, Rh
72830 72830-26270-A0 Armrest Assy, Rear No.1 Seat, Rh
72840 72840-26110-A0 Armrest Assy, Rear No.1 Seat, Lh
72840 72840-26150-A0 Armrest Assy, Rear No.1 Seat, Lh
72877 71877-26030-A1 Cover, Seat Armrest, No.2 Rh
72877 71877-26020-C0 Cover, Rear Seat Armrest Hole Rh
72960 72960-26100 Table Assy, Seat Turn
72970 72970-26150 Table Assy, Rear Seat Turn, Lh
72973 72973-26030-E0 Cover, Rear Seat Turn Table
72973 72973-26030-B0 Cover, Rear Seat Turn Table
72973 72973-26150-E2 Cover, Rear Seat Turn Table
72973 72973-26150-B1 Cover, Rear Seat Turn Table
72973 72973-26040-E0 Cover, Rear Seat Turn Table, No.2
72973 72973-26040-B0 Cover, Rear Seat Turn Table, No.2
73711 73711-AA020 Body, Child Restraint Seat
73731 73731-33010-A0 Cover, Child Restraint Seat
74543 74543-26250 Label, Child Restraint Seat Information
74543 74543-26270 Label, Child Restraint Seat Information
74543 74543-26110 Label, Rear Seat Caution
74543 74543-33040 Label, Rear Seat Caution
79011 79011-26850-A0 Cover Sub-Assy, No.1 Seat Cushion
79011 79011-26870-A0 Cover Sub-Assy, No.1 Seat Cushion
79013 79013-26480-A0 Cover Sub-Assy, No.1 Seat Back
79013 79013-26800-A0 Cover Sub-Assy, No.1 Seat Back
79013 79013-26810-A0 Cover Sub-Assy, No.1 Seat Back
79023 79023-26290-A0 Cover Sub-Assy, Junior Seat Back
79101 71011-26040 Frame Sub-Assy, Front Seat Cushion, Rh
79120 79120-2F020-A0 Cushion Assy, No.1 Seat
79120 79120-2F040-A0 Cushion Assy, No.1 Seat
79135 79135-26240 Pad, No.1 Seat Cushion
79135 79135-26260 Pad, No.1 Seat Cushion
79140 79140-2F020-A0 Back Assy, No.1 Seat
79140 79140-2F030-A0 Back Assy, No.1 Seat
79140 79140-2F040-A0 Back Assy, No.1 Seat
79140 79140-2F220-A0 Back Assy, No.1 Junior Seat, Rh
79175 79175-26150 Pad, No.1 Seat Back
79175 79175-26210 Pad, No.1 Seat Back
79175 79175-26230 Pad, No.1 Seat Back
79180 79180-26230 Spring Assy, No.1 Seat Back, Rh
79180 79180-26240 Spring Assy, No.1 Seat Back, Rh
79190 79190-26100 Spring Assy, No.1 Seat Back, Lh
79240 79150-26310-A0 Back Assy, No.2 Seat
79240 79150-26320-A0 Back Assy, No.2 Seat
79277 79277-26020 Pad, Junior Seat Back Safety, A
79278 79278-26020 Pad, Junior Seat Back Safety, B
79956 79956-26060-E0 Cover, Rear Seat Leg Side, Rh
79956 90339-10001-A0 Cap(For Front Seat Back Board)
9011908 90119-08A60 New Genuine Part
7270226030 72702-26030 Bracket Sub-assy, Rear Seat Back Striker
9010910089 90109-10089 New Genuine Part
9011908026 90119-08026 Bolt(For Transmission Input Damper Cover & Flywheel)
9011908026 90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel)
9011908766 90119-08766 BOLT WWASHER
9011908873 90119-08873 New Genuine Part
9011910495 90119-10495 New Genuine Part
9014940012 90149-40012 SCREW
9014950058 90149-50058 New Genuine Part
9015950279 90159-50279 New Genuine Part
9016740044 90167-40044 BOLT
9020118001 90201-18001 New Genuine Part
9020120016 90201-20016 Washer(For Clutch Pedal Pawl)
9038614007 90386-14007 Bush, Front Seat Armrest, No.1
9046710146 90467-10146 Clip(For Hood To Cowl Top Seal)
9054103112 90541-03112 Cushion(For Front Door Outside Handle)
9056018011 90560-18011 Spacer, Rear Seat Back Hinge
9090119008 90901-19008 New Genuine Part
9324954008 93249-54008 New Genuine Part
9454201400 94542-01400 Spacer, Center Seat Hinge
9454300800 94543-00800 New Genuine Part
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)
