VCH10

Toyota GRANVIA-GRAND-HIACE · 1997 · 5,092 parts · 213 categories
VCH10 ×

← Back to categories

5,092 items

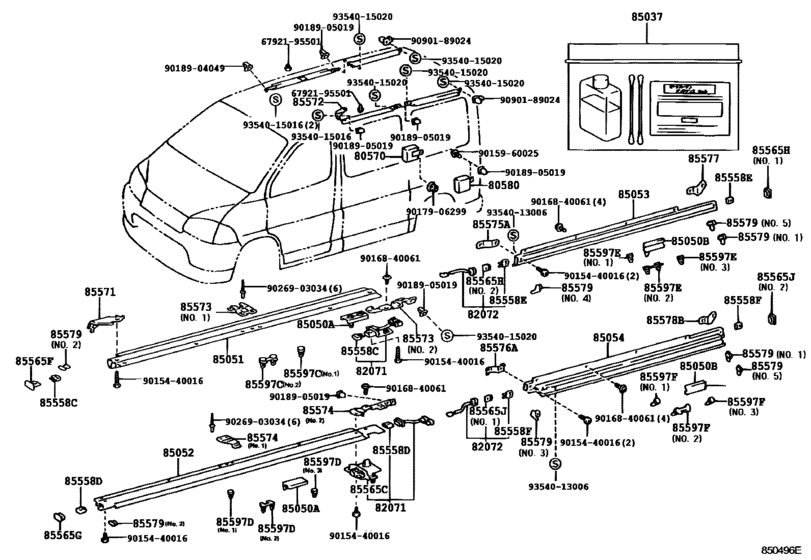

Power Curtain ([08.1995 - 05.2002] ｻｲﾄﾞ & ｸｵ-ﾀｳｲﾝﾄﾞｳ ｶ-ﾃﾝ (9508-0205)5D) 63
#OEMPart name
80570 80570-26040 Relay Assy, Auto Curtain Control, Rh
80580 80580-26030 Relay Assy, Auto Curtain Control, Lh
82071 82071-26040-A2 Wire Sub-Assy, Auto Curtain, No.1
82071 82071-26040-B1 Wire Sub-Assy, Auto Curtain, No.1
82071 82071-26060-A2 Wire Sub-Assy, Auto Curtain, No.1
82071 82071-26060-B0 Wire Sub-Assy, Auto Curtain, No.1
82071 82071-26040-A1 Wire Sub-Assy, Auto Curtain, No.1
82071 82071-26060-A1 Wire Sub-Assy, Auto Curtain, No.1
82072 82072-26030 Wire Sub-Assy, Auto Curtain, No.2
82072 82072-26040 Wire Sub-Assy, Auto Curtain, No.2
85037 85037-28010 Parts Set, Auto Curtain
85050 85050-28030 Coil Assy, Auto Curtain Motor, Front No.1
85050 85050-28040-A0 Coil Assy, Auto Curtain Motor
85050 85050-26010 Coil Assy, Auto Curtain Motor, Front No.2
85050 85050-26030 Coil Assy, Auto Curtain Motor, Front No.1
85051 85051-26040 Rail Sub-Assy, Auto Curtain, Front Rh
85052 85052-26010 Rail Sub-Assy, Auto Curtain, Front Lh
85053 85053-26020 Rail Sub-Assy, Auto Curtain, Rear Rh
85054 85054-26010 Rail Sub-Assy, Auto Curtain, Rear Lh
85558 85558-95J00 Stopper, Auto Curtain Coil
85565 85567-26010-A2 End, Auto Curtain Rail, Lh
85565 85567-26010-B4 End, Auto Curtain Rail, Lh
85565 85565-26020-A2 End, Auto Curtain Rail, Front, No.1 Rh
85565 85565-26020-B1 End, Auto Curtain Rail, Front, No.1 Rh
85565 85565-26010-A2 End, Auto Curtain Rail, Front, No.1 Lh
85565 85565-26010-B1 End, Auto Curtain Rail, Front, No.1 Lh
85565 85565-26030 End, Auto Curtain Rail, Back
85565 85565-95J01 End, Auto Curtain Rail, Back
85565 85565-26040 End, Auto Curtain Rail, Back
85565 85565-95J00 End, Auto Curtain Rail, Back
85565 85567-26010-A1 End, Auto Curtain Rail, Lh
85565 85567-26010-B1 End, Auto Curtain Rail, Lh
85565 85565-26020-A1 End, Auto Curtain Rail, Front, No.1 Rh
85565 85565-26010-A1 End, Auto Curtain Rail, Front, No.1 Lh
85571 85571-26030 Bracket, Auto Curtain Rail, No.1 Rh
85572 85572-26010 Bracket, Auto Curtain Rail, No.1 Lh
85573 85573-26030 Bracket, Auto Curtain Rail, No.2 Rh
85573 85574-26020 Bracket, Auto Curtain Rail, No.2 Rh
85574 85574-26030 Bracket, Auto Curtain Rail, No.2 Lh
85575 85575-26020 Bracket, Auto Curtain Rail, No.3 Rh
85576 85576-26010 Bracket, Auto Curtain Rail, No.3 Lh
85577 85577-26020 Bracket, Auto Curtain Rail, No.4 Rh
85578 85578-26010 Bracket,auto Curtain Rail,no.4 Lh
85579 85579-26010 End, Curtain Sub Rail
85579 85579-26020 End, Curtain Sub Rail
85579 85579-26050 End, Curtain Sub Rail
85579 85579-26060 End, Curtain Sub Rail
85579 85579-26070 End, Curtain Sub Rail
85579 85579-26080 End, Curtain Sub Rail
85597 85597-26031 Runner, Auto Curtain
85597 85597-26040 Runner, Auto Curtain
6792195501 67921-95501 Retainer, Front Door Scuff Plate
9015440016 90154-40016 New Genuine Part
9015960025 90159-60025 SCREW W-WASHER
9016840061 90168-40061 SCREW
9017906299 90179-06299 Nut, Wire Adjusting, No.1
9018904049 90189-04049 GROMMET
9018905019 90189-05019 New Genuine Part
9026903034 90269-03034 New Genuine Part
9090189024 90901-89024 New Genuine Part
9354013006 93540-13006 New Genuine Part
9354015016 93540-15016 New Genuine Part
9354015020 93540-15020 Screw
