Search › Model › VB11
VB11

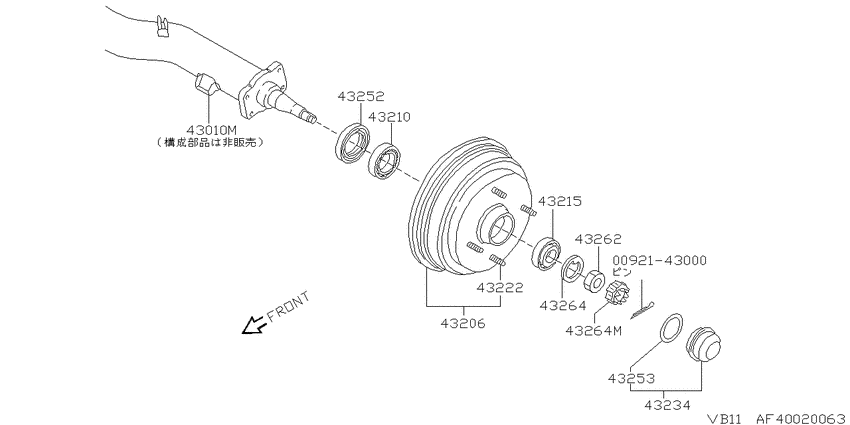

Rear axle (1982-10-01 ~ ; ALL) 9
| # | OEM | Part name |
|---|---|---|
| 43010 | 43010-25A00 | Tube Assy-Rear Axle |
| 43206 | 43202-01A01 | Drum-Brake, Rear |
| 43206 | 43202-01A02 | Drum-Brake, Rear |
| 43206 | 43202-01A03 | Drum-Brake, Rear |
| 43222 | 40222-M7101 | Bolt-Hub |
| 43234 | 40234-01A00 | Cap-Hub, Rear Wheel |
| 43234 | 40234-01A01 | Cap-Hub, Rear Wheel |
| 43253 | 40290-S0400 | Seal-O Ring, Hub |
| 43264 | 40264-E4100 | Washer-Front Wheel Bearing |
| OEM | Part name | Category |
|---|---|---|
| 40222-M7101 | Bolt-Hub | Rear axle (1982-10-01 ~ ; ALL) |
| 40234-01A00 | Cap-Hub, Rear Wheel | Rear axle (1982-10-01 ~ ; ALL) |
| 40234-01A01 | Cap-Hub, Rear Wheel | Rear axle (1982-10-01 ~ ; ALL) |
| 40264-E4100 | Washer-Front Wheel Bearing | Rear axle (1982-10-01 ~ ; ALL) |
| 40290-S0400 | Seal-O Ring, Hub | Rear axle (1982-10-01 ~ ; ALL) |
| 43010-25A00 | Tube Assy-Rear Axle | Rear axle (1982-10-01 ~ ; ALL) |
| 43202-01A01 | Drum-Brake, Rear | Rear axle (1982-10-01 ~ ; ALL) |
| 43202-01A02 | Drum-Brake, Rear | Rear axle (1982-10-01 ~ ; ALL) |
| 43202-01A03 | Drum-Brake, Rear | Rear axle (1982-10-01 ~ ; ALL) |
