Search › Model › VB11
VB11

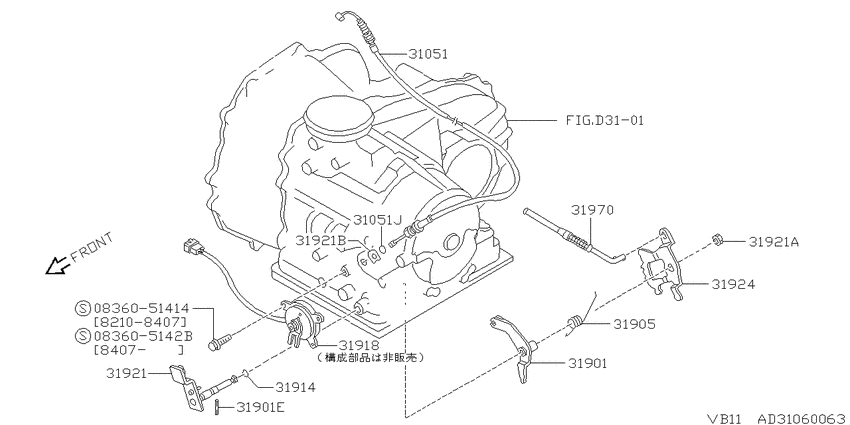

control Switch (1982-10-01 ~ ; RN3F01A) 12
| # | OEM | Part name |
|---|---|---|
| 31051 | 31051-11X02 | Wire Assy-Throttle |
| 31051 | 31052-01X00 | Seal-O Ring |
| 31901 | 31901-01X01 | Lever-Throttle |
| 31901 | 31926-01X00 | Pin-Spring |
| 31905 | 31905-01X00 | Spring-Return |
| 31914 | 31914-01X00 | Seal-O Ring |
| 31918 | 31918-01X11 | Switch Assy-Pnp(Inhibitor) |
| 31921 | 31920-01X11 | Shaft Assy-Manual |
| 31921 | 39627-N3000 | Nut |
| 31921 | 31053-01X00 | Washer-Tooth Lock |
| 31924 | 31925-01X03 | Plate Assy-Manual |
| 83605142 | 08360-5142B | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08360-5142B | スクリユ-,マシン | control Switch (1982-10-01 ~ ; RN3F01A) |
| 31051-11X02 | Wire Assy-Throttle | control Switch (1982-10-01 ~ ; RN3F01A) |
| 31052-01X00 | Seal-O Ring | control Switch (1982-10-01 ~ ; RN3F01A) |
| 31053-01X00 | Washer-Tooth Lock | control Switch (1982-10-01 ~ ; RN3F01A) |
| 31901-01X01 | Lever-Throttle | control Switch (1982-10-01 ~ ; RN3F01A) |
| 31905-01X00 | Spring-Return | control Switch (1982-10-01 ~ ; RN3F01A) |
| 31914-01X00 | Seal-O Ring | control Switch (1982-10-01 ~ ; RN3F01A) |
| 31918-01X11 | Switch Assy-Pnp(Inhibitor) | control Switch (1982-10-01 ~ ; RN3F01A) |
| 31920-01X11 | Shaft Assy-Manual | control Switch (1982-10-01 ~ ; RN3F01A) |
| 31925-01X03 | Plate Assy-Manual | control Switch (1982-10-01 ~ ; RN3F01A) |
| 31926-01X00 | Pin-Spring | control Switch (1982-10-01 ~ ; RN3F01A) |
| 39627-N3000 | Nut | control Switch (1982-10-01 ~ ; RN3F01A) |
