Search › Model › V75W
V75W

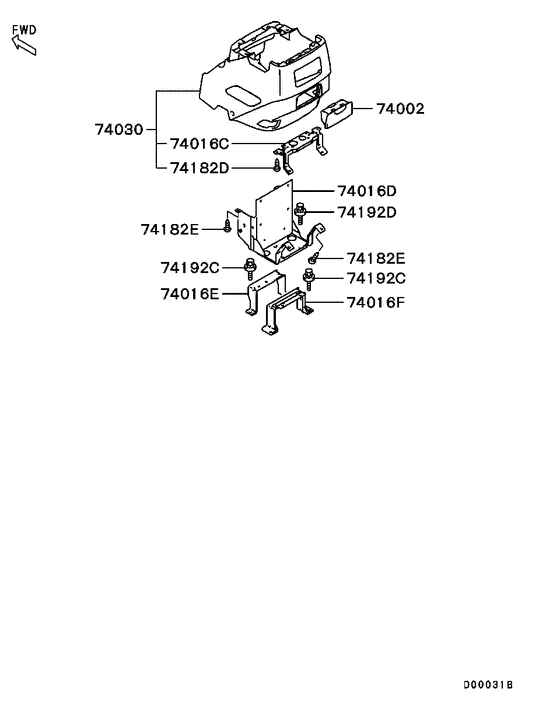

Console (REAR..MINISTRY OF CONSTRUCTION) 8
| # | OEM | Part name |
|---|---|---|
| 74002 | MR489307 | ASHTRAY, FLOOR CONSOLE |
| 74016 | MR489784 | BRACKET, FLOOR CONSOLE |
| 74030 | MR512903 | CONSOLE, FLOOR, RR |
| 74182 | MF200052 | SCREW, FUEL TANK - Machine,5x14 |
| 74182 | MF453032 | SCREW, STEERING WHEEL - Tapping,5x14 |
| 74192 | MF140021 | BOLT, ACCEL CABLE SUPPORT - Flange,8x12 |
| 74192 | MS240125 | BOLT, FUEL TANK - Washer assembled,8x20 |
| 74192 | MS240121 | BOLT, CONNROD - Washer assembled,6x16 |
| OEM | Part name | Category |
|---|---|---|
| MF140021 | BOLT, ACCEL CABLE SUPPORT - Flange,8x12 | Console (REAR..MINISTRY OF CONSTRUCTION) |
| MF200052 | SCREW, FUEL TANK - Machine,5x14 | Console (REAR..MINISTRY OF CONSTRUCTION) |
| MF453032 | SCREW, STEERING WHEEL - Tapping,5x14 | Console (REAR..MINISTRY OF CONSTRUCTION) |
| MR489307 | ASHTRAY, FLOOR CONSOLE | Console (REAR..MINISTRY OF CONSTRUCTION) |
| MR489784 | BRACKET, FLOOR CONSOLE | Console (REAR..MINISTRY OF CONSTRUCTION) |
| MR512903 | CONSOLE, FLOOR, RR | Console (REAR..MINISTRY OF CONSTRUCTION) |
| MS240121 | BOLT, CONNROD - Washer assembled,6x16 | Console (REAR..MINISTRY OF CONSTRUCTION) |
| MS240125 | BOLT, FUEL TANK - Washer assembled,8x20 | Console (REAR..MINISTRY OF CONSTRUCTION) |
