V63W

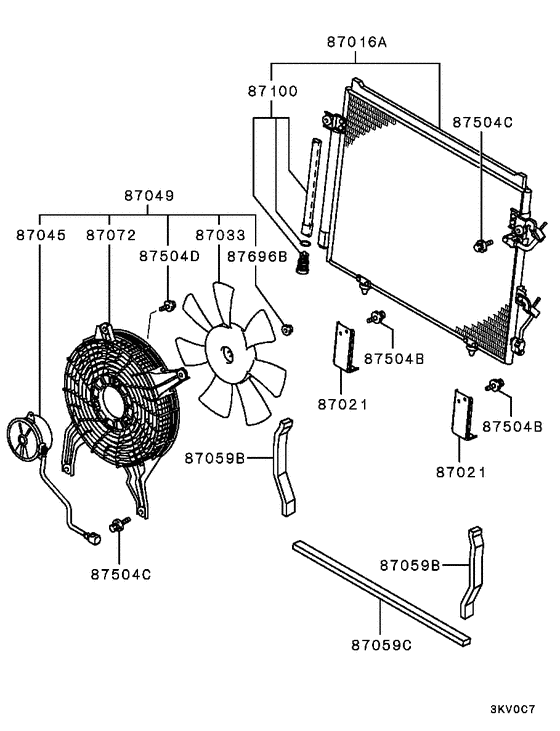

A/c condenser, piping (CONDENSER) 8
| # | OEM | Part name |
|---|---|---|
| 87016 | MN123332 | CONDENSER ASSY, A/C REFRIGERANT |
| 87016 | MR513110 | CONDENSER ASSY, A/C REFRIGERANT |
| 87021 | MR513109 | BRACKET, A/C CONDENSER |
| 87059 | MR500778 | SEAL, A/C CONDENSER |
| 87059 | MR500810 | SEAL, A/C CONDENSER |
| 87504 | MS240121 | BOLT, CONNROD - Washer assembled,6x16 |
| 87504 | MF140029 | BOLT, ENG OIL PUMP - Flange,8x30 |
| 87504 | MF247567 | BOLT, A/C CONDENSER - Washer assembled,8x35 |
| OEM | Part name | Category |
|---|---|---|
| MF140029 | BOLT, ENG OIL PUMP - Flange,8x30 | A/c condenser, piping (CONDENSER) |
| MF247567 | BOLT, A/C CONDENSER - Washer assembled,8x35 | A/c condenser, piping (CONDENSER) |
| MN123332 | CONDENSER ASSY, A/C REFRIGERANT | A/c condenser, piping (CONDENSER) |
| MR500778 | SEAL, A/C CONDENSER | A/c condenser, piping (CONDENSER) |
| MR500810 | SEAL, A/C CONDENSER | A/c condenser, piping (CONDENSER) |
| MR513109 | BRACKET, A/C CONDENSER | A/c condenser, piping (CONDENSER) |
| MR513110 | CONDENSER ASSY, A/C REFRIGERANT | A/c condenser, piping (CONDENSER) |
| MS240121 | BOLT, CONNROD - Washer assembled,6x16 | A/c condenser, piping (CONDENSER) |
