Search › Model › V55W
V55W

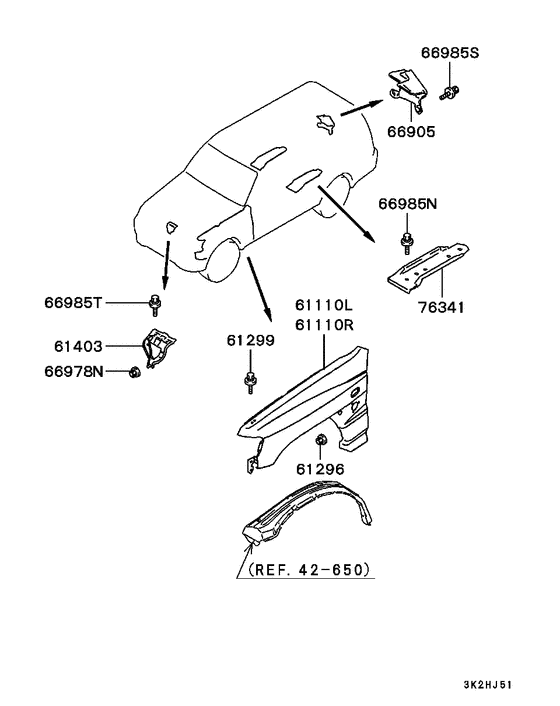

Fender & front end cover (ALL) 9
| # | OEM | Part name |
|---|---|---|
| 61110 | MR414451 | FENDER, FR LH |
| 61110 | MR414452 | FENDER, FR RH |
| 61296 | MS440133 | NUT, FUEL TANK - Flange,6 |
| 61299 | MS100221 | BOLT, RADIATOR SHROUD - Flange,6x12 |
| 61299 | MS100222 | BOLT, RESISTOR - Flange,6x14 |
| 61403 | MB835490 | BRACKET, HOOD CATCH |
| 66905 | MB835598 | COVER, RR END, OTR |
| 66985 | MF240053 | BOLT, CYLINDER HEAD - Washer assembled,8x20 |
| 76341 | MB835480 | PLATE, 2ND SEAT STAY |
| OEM | Part name | Category |
|---|---|---|
| MB835480 | PLATE, 2ND SEAT STAY | Fender & front end cover (ALL) |
| MB835490 | BRACKET, HOOD CATCH | Fender & front end cover (ALL) |
| MB835598 | COVER, RR END, OTR | Fender & front end cover (ALL) |
| MF240053 | BOLT, CYLINDER HEAD - Washer assembled,8x20 | Fender & front end cover (ALL) |
| MR414451 | FENDER, FR LH | Fender & front end cover (ALL) |
| MR414452 | FENDER, FR RH | Fender & front end cover (ALL) |
| MS100221 | BOLT, RADIATOR SHROUD - Flange,6x12 | Fender & front end cover (ALL) |
| MS100222 | BOLT, RESISTOR - Flange,6x14 | Fender & front end cover (ALL) |
| MS440133 | NUT, FUEL TANK - Flange,6 | Fender & front end cover (ALL) |
