Search › Model › V42
V42

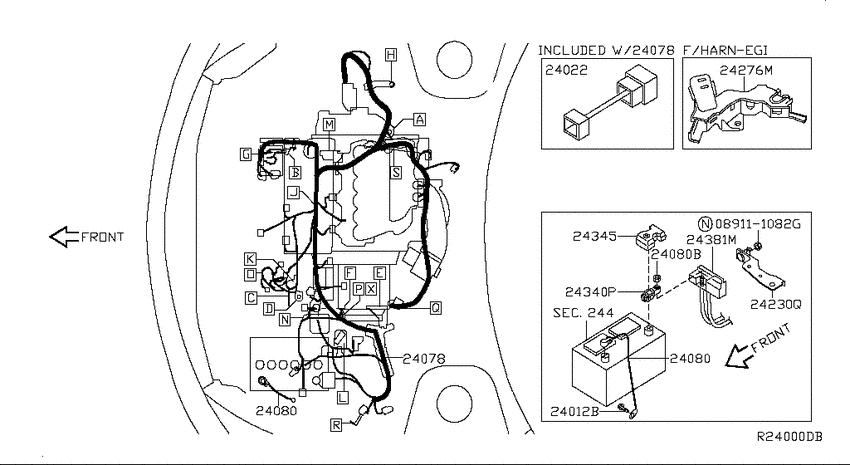

Wiring (2007-08-01 ~ ; ENGINE ROOM 2; W) 9
| # | OEM | Part name |
|---|---|---|
| 24022 | 24340-5Z000 | Wire Assy-Fusible Link |
| 24078 | 24011-ZM00A | Harness-Egi |
| 24080 | 24080-8Y000 | Cable Assy-Battery Earth |
| 24230 | 24230-8Y000 | Bracket-Clip, Battery Cable |
| 24276 | 24270-ZF000 | Protector-Harness |
| 24276 | 24296-ZK30A | Protector-Harness |
| 24276 | 24296-7Y005 | Protector-Harness |
| 24345 | 24345-79901 | Cover-Connector |
| 24345 | 24345-5Z000 | Cover-Connector |
| OEM | Part name | Category |
|---|---|---|
| 24011-ZM00A | Harness-Egi | Wiring (2007-08-01 ~ ; ENGINE ROOM 2; W) |
| 24080-8Y000 | Cable Assy-Battery Earth | Wiring (2007-08-01 ~ ; ENGINE ROOM 2; W) |
| 24230-8Y000 | Bracket-Clip, Battery Cable | Wiring (2007-08-01 ~ ; ENGINE ROOM 2; W) |
| 24270-ZF000 | Protector-Harness | Wiring (2007-08-01 ~ ; ENGINE ROOM 2; W) |
| 24296-7Y005 | Protector-Harness | Wiring (2007-08-01 ~ ; ENGINE ROOM 2; W) |
| 24296-ZK30A | Protector-Harness | Wiring (2007-08-01 ~ ; ENGINE ROOM 2; W) |
| 24340-5Z000 | Wire Assy-Fusible Link | Wiring (2007-08-01 ~ ; ENGINE ROOM 2; W) |
| 24345-5Z000 | Cover-Connector | Wiring (2007-08-01 ~ ; ENGINE ROOM 2; W) |
| 24345-79901 | Cover-Connector | Wiring (2007-08-01 ~ ; ENGINE ROOM 2; W) |
