V42

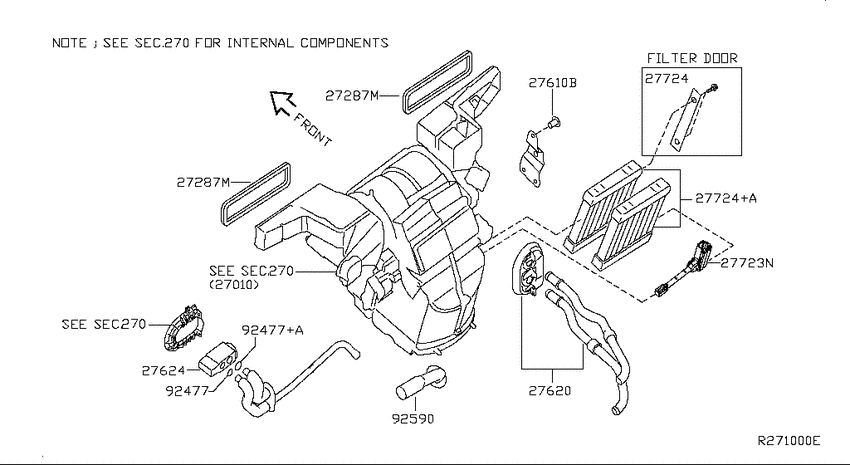

Cooling unit (2007-08-01 ~ ; FRONT; W) 11
| # | OEM | Part name |
|---|---|---|
| 27287 | 27287-ZM70A | Seal-Cooling Unit |
| 27610 | 27462-5Z000 | Nut |
| 27620 | 27280-5Z000 | Evaporator Assy-Cooler |
| 27620 | 27280-ZE60A | Evaporator Assy-Cooler |
| 27624 | 92200-5Z010 | Valve Assy-Expansion |
| 27723 | 27700-5Z000 | Sensor Assy-Thermister |
| 27724 | 27298-5Z000 | Air Filter |
| 27724 | 27299-5Z000 | Air Filter |
| 92477 | 92476-5Z000 | Seal-O Ring |
| 92477 | 92477-5Z000 | Seal-O Ring |
| 92590 | 92590-5Z000 | Hose-drain |
| OEM | Part name | Category |
|---|---|---|
| 27280-5Z000 | Evaporator Assy-Cooler | Cooling unit (2007-08-01 ~ ; FRONT; W) |
| 27280-ZE60A | Evaporator Assy-Cooler | Cooling unit (2007-08-01 ~ ; FRONT; W) |
| 27287-ZM70A | Seal-Cooling Unit | Cooling unit (2007-08-01 ~ ; FRONT; W) |
| 27298-5Z000 | Air Filter | Cooling unit (2007-08-01 ~ ; FRONT; W) |
| 27299-5Z000 | Air Filter | Cooling unit (2007-08-01 ~ ; FRONT; W) |
| 27462-5Z000 | Nut | Cooling unit (2007-08-01 ~ ; FRONT; W) |
| 27700-5Z000 | Sensor Assy-Thermister | Cooling unit (2007-08-01 ~ ; FRONT; W) |
| 92200-5Z010 | Valve Assy-Expansion | Cooling unit (2007-08-01 ~ ; FRONT; W) |
| 92476-5Z000 | Seal-O Ring | Cooling unit (2007-08-01 ~ ; FRONT; W) |
| 92477-5Z000 | Seal-O Ring | Cooling unit (2007-08-01 ~ ; FRONT; W) |
| 92590-5Z000 | Hose-drain | Cooling unit (2007-08-01 ~ ; FRONT; W) |
