| 08166-6202A |
スクリユウ |

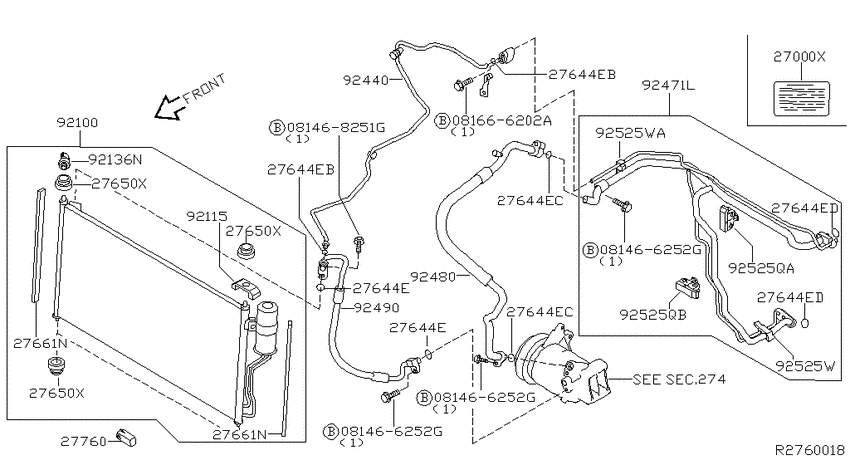

Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 27090-5Z002 |
Label-Caution, Air Conditioner |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92100-5Z000 |
Condenser & liquid tank assy |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92115-7Y000 |
Bracket-condenser |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92118-7Y000 |
Mounting-Rubber, Condenser Upper |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92136-3Z600 |
Sensor assy-pressure |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92184-5Z000 |
Seal-Condenser, Side |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92440-5Z000 |
Pipe-front cooler,high |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92440-ZE60A |
Pipe-front cooler,high |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92471-N8210 |
O Ring |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92471-ZE60A |
Pipe assy-rear cooler,low a |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92471-ZF00A |
Pipe assy-rear cooler,low a |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92477-5Z000 |
Seal-O Ring |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92480-5Z000 |
Hose-flexible,low |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92480-ZE60A |
Hose-flexible,low |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92490-5Z000 |
Hose-flexible,high |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92490-ZE60A |
Hose-flexible,high |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92551-5Z200 |
Clip |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92551-8J000 |
クリツプ |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92555-5Z000 |
Clip |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
| 92555-5Z100 |
Clip |
Condensor, liquid tank (2007-08-01 ~ ; FRONT; W) |
