Search › Model › V41

V41

Nissan QUEST · 1998 · 4,200 parts · 404 categories

4,200 items

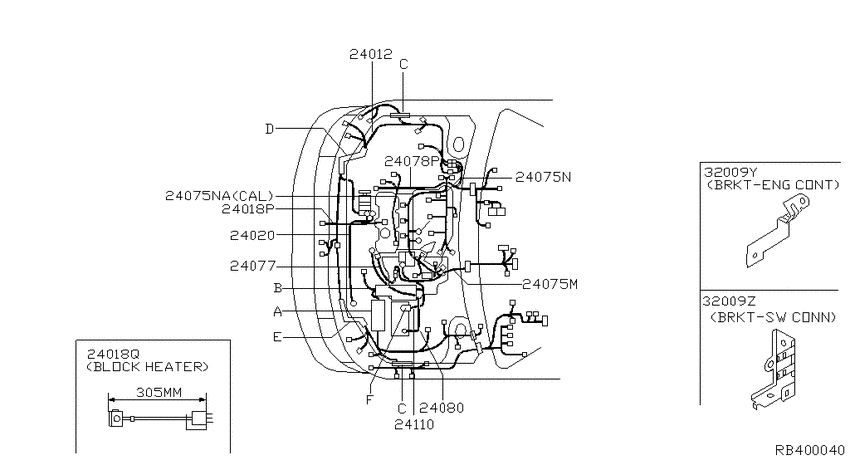

Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W) 28

#	OEM	Part name
24012	24012-2Z306	Harness-Engine Room
24012	24012-2Z312	Harness-Engine Room
24012	24012-2Z320	Harness-Engine Room
24012	24012-7B060	Harness-Engine Room
24012	24012-7B300	Harness-Engine Room
24012	01456-00651	SCREW
24012	01281-0003U	Grommet-Screw
24012	24012-2Z305	Harness-Engine Room
24012	24012-7B000	Harness-Engine Room
24012	24012-7B200	Harness-Engine Room
24018	24167-7B001	Harness-Sub
24018	24167-7B005	Harness-Sub
24020	24076-7B000	Harness-Alternator
24075	24077-2Z300	Harness-Sub, Engine
24075	24077-7B000	Harness-Sub, Engine
24075	24075-2Z000	Harness-Sub, Engine
24075	24075-2Z100	Harness-Sub, Engine
24075	24075-7B000	Harness-Sub, Engine
24075	24167-7B200	Harness-Sub, Engine
24077	24077-7B020	Harness-Sub, Engine Room
24078	24078-2Z365	Harness-Engine Control
24078	24078-7B000	Harness-Engine Control
24078	24078-7B010	Harness-Engine Control
24078	24078-7B500	Harness-Engine Control
24080	24080-7B000	Cable Assy-Battery Earth
24110	24110-1B000	Cable Assy-Battery To Starter Motor
32009	32009-7B071	Bracket-Engine Control
32009	32009-7B010	Bracket-Switch Connector

OEM	Part name	Category
01281-0003U	Grommet-Screw	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
01456-00651	SCREW	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24012-2Z305	Harness-Engine Room	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24012-2Z306	Harness-Engine Room	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24012-2Z312	Harness-Engine Room	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24012-2Z320	Harness-Engine Room	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24012-7B000	Harness-Engine Room	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24012-7B060	Harness-Engine Room	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24012-7B200	Harness-Engine Room	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24012-7B300	Harness-Engine Room	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24075-2Z000	Harness-Sub, Engine	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24075-2Z100	Harness-Sub, Engine	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24075-7B000	Harness-Sub, Engine	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24076-7B000	Harness-Alternator	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24077-2Z300	Harness-Sub, Engine	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24077-7B000	Harness-Sub, Engine	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24077-7B020	Harness-Sub, Engine Room	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24078-2Z365	Harness-Engine Control	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24078-7B000	Harness-Engine Control	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24078-7B010	Harness-Engine Control	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24078-7B500	Harness-Engine Control	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24080-7B000	Cable Assy-Battery Earth	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24110-1B000	Cable Assy-Battery To Starter Motor	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24167-7B001	Harness-Sub	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24167-7B005	Harness-Sub	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
24167-7B200	Harness-Sub, Engine	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
32009-7B010	Bracket-Switch Connector	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
32009-7B071	Bracket-Engine Control	Wiring (1998-09-01 ~ 2000-09-01; ENGINE ROOM; W)
