| 01423-0001U |
Screw |

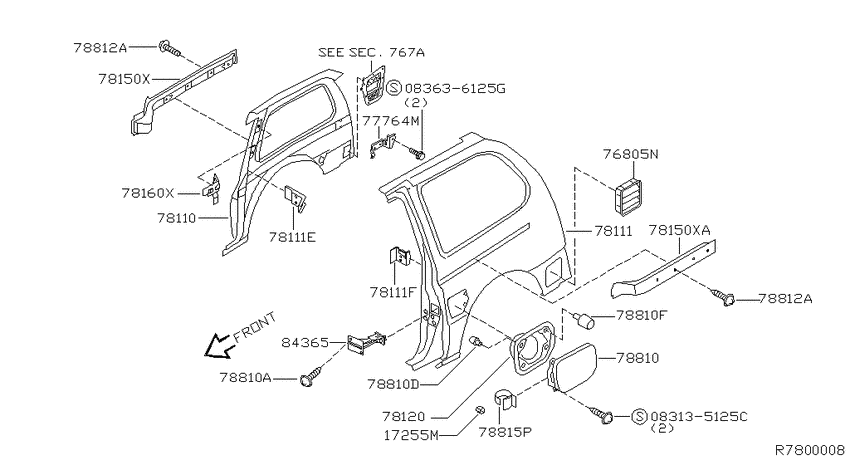

Rear fender & fitting (2000-09-01 ~ ; W) |
| 01436-0011U |
Screw |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 01658-0003U |
Plug |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 01658-00531 |
PLUG |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 08313-5125C |
スクリユ-,マシン |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 08363-6125G |
Screw |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 76690-7B030 |
Retainer-tapping,striker rh |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 76691-7B030 |
Retainer-tapping,striker lh |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 76805-7B000 |
Duct-Drafter, Outlet Lh |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 77730-7B001 |
Screw |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 77764-7B000 |
Bracket |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 78112-7B030 |
Fender-rear,rh |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 78113-7B030 |
Fender-rear,lh |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 78120-7B030 |
Base-filler lid |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 78150-7B030 |
Guide assy-rail waist |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 78151-7B030 |
Guide assy-rail waist |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 78160-7B030 |
Plate-stopper mounting,upper rh |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 78403-7B000 |
Lock-gas filler |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 78830-7B030 |
Lid-gas filler |
Rear fender & fitting (2000-09-01 ~ ; W) |
| 78836-1B000 |
Spring-gas filler lid |
Rear fender & fitting (2000-09-01 ~ ; W) |
