V41

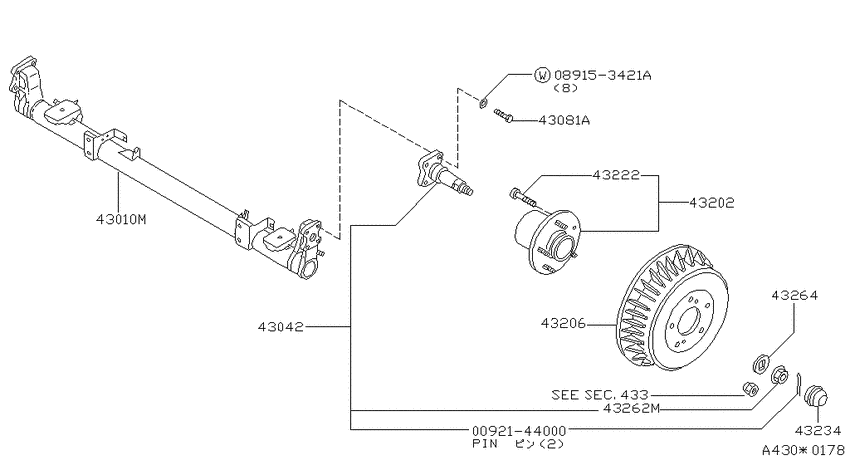

Rear axle (1998-09-01 ~ 2000-09-01; VG33E) 11
| # | OEM | Part name |
|---|---|---|
| 43010 | 43009-0B001 | Tube Assy-Rear Axle |
| 43042 | 43042-0B025 | Spindle-Rear |
| 43042 | 43042-0B026 | Spindle-Rear |
| 43081 | 43083-35F00 | Bolt |
| 43202 | 43202-7B000 | Hub Assy-Rear Axle |
| 43206 | 43206-7B000 | Drum-Brake, Rear Axle |
| 43222 | 40222-7B000 | Bolt-Hub |
| 43234 | 43234-0B000 | Cap-Hub, Rear Wheel |
| 43262 | 43262-0B000 | Nut-Lock, Front Wheel Bearing |
| 43264 | 43264-0B000 | Washer-Rear Wheel Bearing |
| 92144000 | 00921-44000 | ピン,スプリツト コツタ- |
| OEM | Part name | Category |
|---|---|---|
| 00921-44000 | ピン,スプリツト コツタ- | Rear axle (1998-09-01 ~ 2000-09-01; VG33E) |
| 40222-7B000 | Bolt-Hub | Rear axle (1998-09-01 ~ 2000-09-01; VG33E) |
| 43009-0B001 | Tube Assy-Rear Axle | Rear axle (1998-09-01 ~ 2000-09-01; VG33E) |
| 43042-0B025 | Spindle-Rear | Rear axle (1998-09-01 ~ 2000-09-01; VG33E) |
| 43042-0B026 | Spindle-Rear | Rear axle (1998-09-01 ~ 2000-09-01; VG33E) |
| 43083-35F00 | Bolt | Rear axle (1998-09-01 ~ 2000-09-01; VG33E) |
| 43202-7B000 | Hub Assy-Rear Axle | Rear axle (1998-09-01 ~ 2000-09-01; VG33E) |
| 43206-7B000 | Drum-Brake, Rear Axle | Rear axle (1998-09-01 ~ 2000-09-01; VG33E) |
| 43234-0B000 | Cap-Hub, Rear Wheel | Rear axle (1998-09-01 ~ 2000-09-01; VG33E) |
| 43262-0B000 | Nut-Lock, Front Wheel Bearing | Rear axle (1998-09-01 ~ 2000-09-01; VG33E) |
| 43264-0B000 | Washer-Rear Wheel Bearing | Rear axle (1998-09-01 ~ 2000-09-01; VG33E) |
