V41

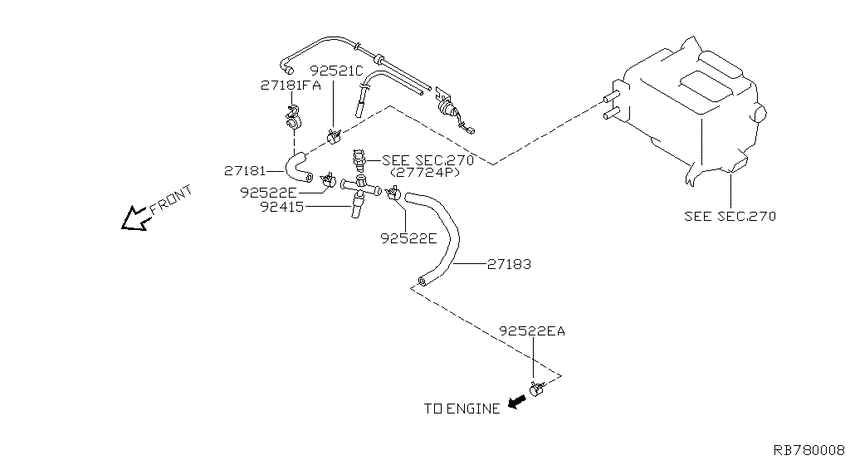

Heater piping (2000-09-01 ~ ; FRONT-WITH REAR A/C; W) 9
| # | OEM | Part name |
|---|---|---|
| 27181 | 92401-7B020 | Hose-Front Heater |
| 27181 | 92533-0B010 | Clip |
| 27181 | 92553-0B010 | Clip |
| 27181 | 27181-7B000 | Door Assy-Ventilation |
| 27183 | 92402-7B020 | Hose-Front Heater |
| 92415 | 92403-7B020 | Tube assy-front heater |
| 92521 | 01555-00261 | CLAMP-HOSE |
| 92522 | 92527-7B000 | Clamp-Hose |
| 92522 | 92527-7B010 | Clip |
| OEM | Part name | Category |
|---|---|---|
| 01555-00261 | CLAMP-HOSE | Heater piping (2000-09-01 ~ ; FRONT-WITH REAR A/C; W) |
| 27181-7B000 | Door Assy-Ventilation | Heater piping (2000-09-01 ~ ; FRONT-WITH REAR A/C; W) |
| 92401-7B020 | Hose-Front Heater | Heater piping (2000-09-01 ~ ; FRONT-WITH REAR A/C; W) |
| 92402-7B020 | Hose-Front Heater | Heater piping (2000-09-01 ~ ; FRONT-WITH REAR A/C; W) |
| 92403-7B020 | Tube assy-front heater | Heater piping (2000-09-01 ~ ; FRONT-WITH REAR A/C; W) |
| 92527-7B000 | Clamp-Hose | Heater piping (2000-09-01 ~ ; FRONT-WITH REAR A/C; W) |
| 92527-7B010 | Clip | Heater piping (2000-09-01 ~ ; FRONT-WITH REAR A/C; W) |
| 92533-0B010 | Clip | Heater piping (2000-09-01 ~ ; FRONT-WITH REAR A/C; W) |
| 92553-0B010 | Clip | Heater piping (2000-09-01 ~ ; FRONT-WITH REAR A/C; W) |
