V40

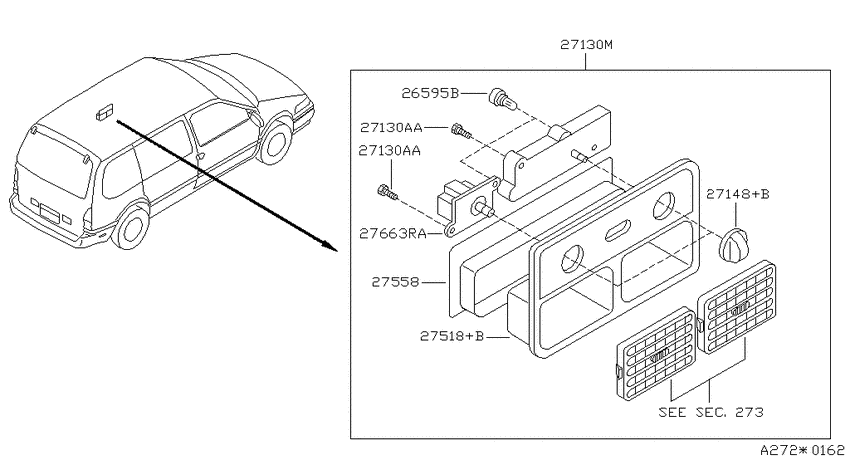

Control unit (1992-04-01 ~ ; REAR; FED.W +CAL.W) 7
| # | OEM | Part name |
|---|---|---|
| 26595 | 24861-0B001 | Bulb |
| 27130 | 63849-0B000 | Screw |
| 27130 | 27501-0B000 | Controller Assy-Rear Air Conditioner |
| 27148 | 27564-0B000 | Knob-Control |
| 27518 | 27557-0B000 | Case-Control |
| 27558 | 27558-0B000 | Adapter-Housing, Rear |
| 27663 | 27663-0B000 | Switch Assy-Fan, Rear Heater |
| OEM | Part name | Category |
|---|---|---|
| 24861-0B001 | Bulb | Control unit (1992-04-01 ~ ; REAR; FED.W +CAL.W) |
| 27501-0B000 | Controller Assy-Rear Air Conditioner | Control unit (1992-04-01 ~ ; REAR; FED.W +CAL.W) |
| 27557-0B000 | Case-Control | Control unit (1992-04-01 ~ ; REAR; FED.W +CAL.W) |
| 27558-0B000 | Adapter-Housing, Rear | Control unit (1992-04-01 ~ ; REAR; FED.W +CAL.W) |
| 27564-0B000 | Knob-Control | Control unit (1992-04-01 ~ ; REAR; FED.W +CAL.W) |
| 27663-0B000 | Switch Assy-Fan, Rear Heater | Control unit (1992-04-01 ~ ; REAR; FED.W +CAL.W) |
| 63849-0B000 | Screw | Control unit (1992-04-01 ~ ; REAR; FED.W +CAL.W) |
