Search › Model › V40

V40

Nissan QUEST · 1992 · 6,713 parts · 253 categories

6,713 items

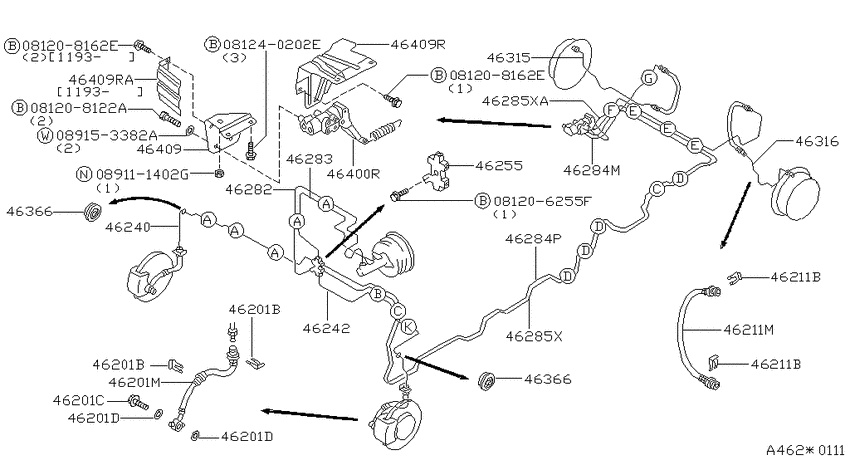

Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W) 40

#	OEM	Part name
46201	46206-0B000	Spring-Lock, Brake Hose
46201	46356-01E01	BOLT-UNION,FRONT BRAKE HOSE
46201	46356-0E000	BOLT-UNION,FRONT BRAKE HOSE
46201	46237-0B000	Gasket-Brake Hose
46201	46210-0B000	Hose Assy-Brake, Front
46201	46210-1B700	Hose Assy-Brake, Front
46211	46211-0B000	Hose Assy-Brake, Rear
46211	46211-1B700	Hose Assy-Brake, Rear
46240	46240-0B020	Tube Assy-Brake, Front Rh
46240	46240-0B010	Tube Assy-Brake, Actuator To Front Rh
46240	46240-1B000	Tube Assy-Brake, Actuator To Front Rh
46242	46242-0B020	Tube Assy-Brake, Front Lh
46242	46242-0B010	Tube Assy-Brake, Actuator To Connector
46242	46242-1B000	Tube Assy-Brake, Actuator To Connector
46255	46255-0B000	Connector-Brake Tube
46282	46282-0B020	Tube Assy-Brake, Rear
46282	46282-0B010	Tube Assy-Brake, Actuator To Rear
46282	46282-1B000	Tube Assy-Brake, Actuator To Rear
46283	46283-0B020	Tube Assy-Brake, Rear
46283	46283-0B010	Tube Assy-Brake, Actuator To Rear Lh
46283	46283-1B000	Tube Assy-Brake, Actuator To Rear Lh
46284	46284-0B005	Tube Assy-Brake, Rear
46284	46284-0B001	Tube Assy-Brake, Rear Rh
46284	46284-6B702	Tube Assy-Brake, Rear Rh
46285	46285-0B001	Tube Assy-Brake, Rear
46285	46285-6B703	Tube Assy-Brake, Rear
46285	46285-0B006	Tube Assy-Brake, Rear
46285	46285-6B702	Tube Assy-Brake, Rear
46315	46315-0B000	Tube Assy-Brake Rear, Rh
46316	46316-0B000	Tube Assy-Brake Rear, Lh
46366	46366-0B000	Grommet
46400	46400-0B000	Valve Assy-Load Sensing
46400	46400-1B000	Valve Assy-Load Sensing
46409	46409-0B001	Bracket-Valve
46409	46409-0B700	Bracket-Valve
46409	46409-0B010	Insulator-Lsv
46409	46407-0B700	Insulator-Lsv
81208122	08120-8122A	Bolt-hexagon
81240202	08124-0202E	Bolt-hexagon
89153382	08915-3382A	ワツシヤ-,スプリング

OEM	Part name	Category
08120-8122A	Bolt-hexagon	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
08124-0202E	Bolt-hexagon	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
08915-3382A	ワツシヤ-,スプリング	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46206-0B000	Spring-Lock, Brake Hose	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46210-0B000	Hose Assy-Brake, Front	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46210-1B700	Hose Assy-Brake, Front	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46211-0B000	Hose Assy-Brake, Rear	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46211-1B700	Hose Assy-Brake, Rear	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46237-0B000	Gasket-Brake Hose	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46240-0B010	Tube Assy-Brake, Actuator To Front Rh	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46240-0B020	Tube Assy-Brake, Front Rh	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46240-1B000	Tube Assy-Brake, Actuator To Front Rh	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46242-0B010	Tube Assy-Brake, Actuator To Connector	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46242-0B020	Tube Assy-Brake, Front Lh	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46242-1B000	Tube Assy-Brake, Actuator To Connector	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46255-0B000	Connector-Brake Tube	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46282-0B010	Tube Assy-Brake, Actuator To Rear	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46282-0B020	Tube Assy-Brake, Rear	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46282-1B000	Tube Assy-Brake, Actuator To Rear	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46283-0B010	Tube Assy-Brake, Actuator To Rear Lh	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46283-0B020	Tube Assy-Brake, Rear	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46283-1B000	Tube Assy-Brake, Actuator To Rear Lh	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46284-0B001	Tube Assy-Brake, Rear Rh	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46284-0B005	Tube Assy-Brake, Rear	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46284-6B702	Tube Assy-Brake, Rear Rh	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46285-0B001	Tube Assy-Brake, Rear	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46285-0B006	Tube Assy-Brake, Rear	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46285-6B702	Tube Assy-Brake, Rear	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46285-6B703	Tube Assy-Brake, Rear	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46315-0B000	Tube Assy-Brake Rear, Rh	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46316-0B000	Tube Assy-Brake Rear, Lh	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46356-01E01	BOLT-UNION,FRONT BRAKE HOSE	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46356-0E000	BOLT-UNION,FRONT BRAKE HOSE	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46366-0B000	Grommet	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46400-0B000	Valve Assy-Load Sensing	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46400-1B000	Valve Assy-Load Sensing	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46407-0B700	Insulator-Lsv	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46409-0B001	Bracket-Valve	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46409-0B010	Insulator-Lsv	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
46409-0B700	Bracket-Valve	Brake piping & control (1992-04-01 ~ ; WITHOUT ABS; FED.W +CAL.W)
