Search › Model › V40
V40

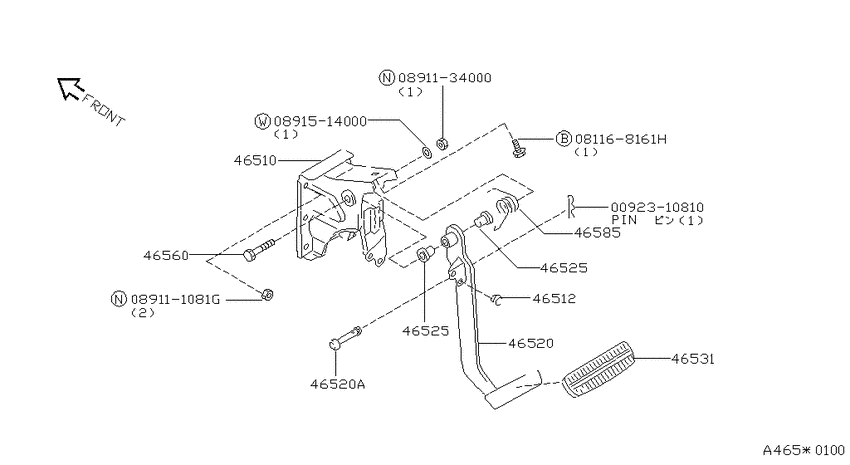

Brake & clutch pedal (1992-04-01 ~ ; VG30E) 12
| # | OEM | Part name |
|---|---|---|
| 46510 | 46510-0B000 | Bracket Assy-Brake Pedal |
| 46512 | 46512-0B000 | Stopper-Rubber |
| 46520 | 46520-0B000 | Pedal Assy-Brake |
| 46520 | 46123-0B000 | Pin-Clevis |
| 46525 | 46525-0B000 | Bush-Pedal |
| 46531 | 46531-0B000 | Pad-Pedal |
| 46531 | 46531-0B004 | Pad-Pedal |
| 46560 | 46560-0B000 | Pin-Fulcrum |
| 46585 | 46585-0B000 | Spring-Return |
| 81168161 | 08116-8161H | Bolt-hexagon |
| 92310810 | 00923-10810 | PIN-SNAP |
| 891514000 | 08915-14000 | Пружинная шайба |
| OEM | Part name | Category |
|---|---|---|
| 00923-10810 | PIN-SNAP | Brake & clutch pedal (1992-04-01 ~ ; VG30E) |
| 08116-8161H | Bolt-hexagon | Brake & clutch pedal (1992-04-01 ~ ; VG30E) |
| 08915-14000 | Пружинная шайба | Brake & clutch pedal (1992-04-01 ~ ; VG30E) |
| 46123-0B000 | Pin-Clevis | Brake & clutch pedal (1992-04-01 ~ ; VG30E) |
| 46510-0B000 | Bracket Assy-Brake Pedal | Brake & clutch pedal (1992-04-01 ~ ; VG30E) |
| 46512-0B000 | Stopper-Rubber | Brake & clutch pedal (1992-04-01 ~ ; VG30E) |
| 46520-0B000 | Pedal Assy-Brake | Brake & clutch pedal (1992-04-01 ~ ; VG30E) |
| 46525-0B000 | Bush-Pedal | Brake & clutch pedal (1992-04-01 ~ ; VG30E) |
| 46531-0B000 | Pad-Pedal | Brake & clutch pedal (1992-04-01 ~ ; VG30E) |
| 46531-0B004 | Pad-Pedal | Brake & clutch pedal (1992-04-01 ~ ; VG30E) |
| 46560-0B000 | Pin-Fulcrum | Brake & clutch pedal (1992-04-01 ~ ; VG30E) |
| 46585-0B000 | Spring-Return | Brake & clutch pedal (1992-04-01 ~ ; VG30E) |
