V36

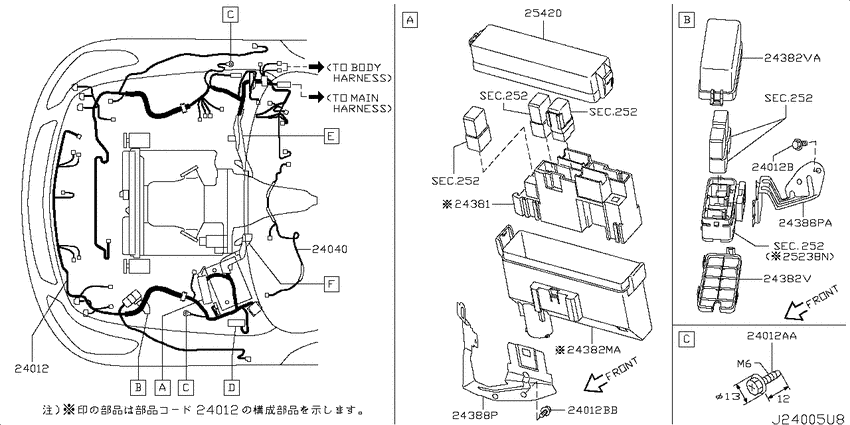

Wiring (2007-11-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; S.VQ25HR) 10
| # | OEM | Part name |
|---|---|---|
| 24012 | 24012-1NB0B | Harness Assy-Engine Room |
| 24012 | 24012-1NB1A | Harness Assy-Engine Room |
| 24012 | 24012-1NB1B | Harness Assy-Engine Room |
| 24012 | 24012-1NB2A | Harness Assy-Engine Room |
| 24040 | 24040-JK00A | Harness Assy-Air Conditioner |
| 24382 | 24372-AL500 | Cover-Relay Box |
| 24382 | 24382-AM600 | Cover-Relay Box |
| 24388 | 24388-JK00A | Bracket-Relay Box |
| 24388 | 24388-JK60C | Bracket-Relay Box |
| 25420 | 24312-JK60A | Cover-Fuse Block |
| OEM | Part name | Category |
|---|---|---|
| 24012-1NB0B | Harness Assy-Engine Room | Wiring (2007-11-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; S.VQ25HR) |
| 24012-1NB1A | Harness Assy-Engine Room | Wiring (2007-11-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; S.VQ25HR) |
| 24012-1NB1B | Harness Assy-Engine Room | Wiring (2007-11-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; S.VQ25HR) |
| 24012-1NB2A | Harness Assy-Engine Room | Wiring (2007-11-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; S.VQ25HR) |
| 24040-JK00A | Harness Assy-Air Conditioner | Wiring (2007-11-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; S.VQ25HR) |
| 24312-JK60A | Cover-Fuse Block | Wiring (2007-11-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; S.VQ25HR) |
| 24372-AL500 | Cover-Relay Box | Wiring (2007-11-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; S.VQ25HR) |
| 24382-AM600 | Cover-Relay Box | Wiring (2007-11-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; S.VQ25HR) |
| 24388-JK00A | Bracket-Relay Box | Wiring (2007-11-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; S.VQ25HR) |
| 24388-JK60C | Bracket-Relay Box | Wiring (2007-11-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; S.VQ25HR) |
