V36

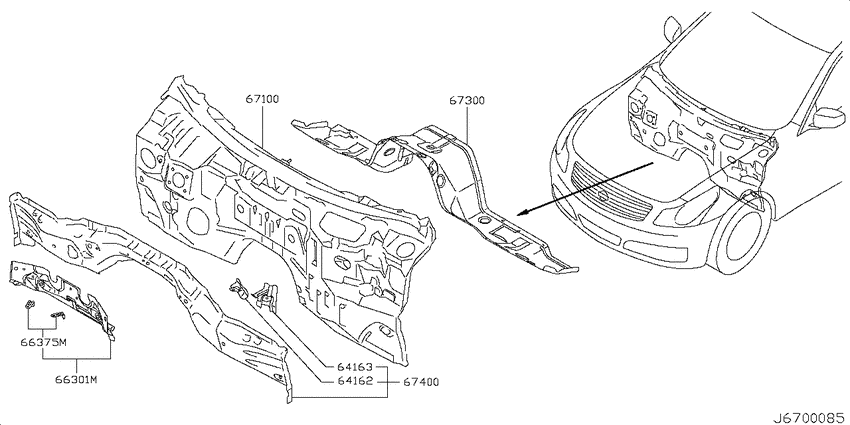

Dash panel & fitting (2007-11-01 ~ ; S) 6
| # | OEM | Part name |
|---|---|---|
| 64162 | 64162-JK000 | Bracket-Battery Suport, Lower Rh |
| 64163 | 64163-JK000 | Bracket-Battery Suport, Lower Lh |
| 66301 | 66301-JK000 | Cowl Top Assy Front, Upper |
| 66375 | 66375-JK600 | Bracket-Cowl Top |
| 67100 | 67100-JK030 | ダツシユ,アツパ- |
| 67300 | 67300-JK030 | Dash-Lower |
| OEM | Part name | Category |
|---|---|---|
| 64162-JK000 | Bracket-Battery Suport, Lower Rh | Dash panel & fitting (2007-11-01 ~ ; S) |
| 64163-JK000 | Bracket-Battery Suport, Lower Lh | Dash panel & fitting (2007-11-01 ~ ; S) |
| 66301-JK000 | Cowl Top Assy Front, Upper | Dash panel & fitting (2007-11-01 ~ ; S) |
| 66375-JK600 | Bracket-Cowl Top | Dash panel & fitting (2007-11-01 ~ ; S) |
| 67100-JK030 | ダツシユ,アツパ- | Dash panel & fitting (2007-11-01 ~ ; S) |
| 67300-JK030 | Dash-Lower | Dash panel & fitting (2007-11-01 ~ ; S) |
