Search › Model › V36
V36

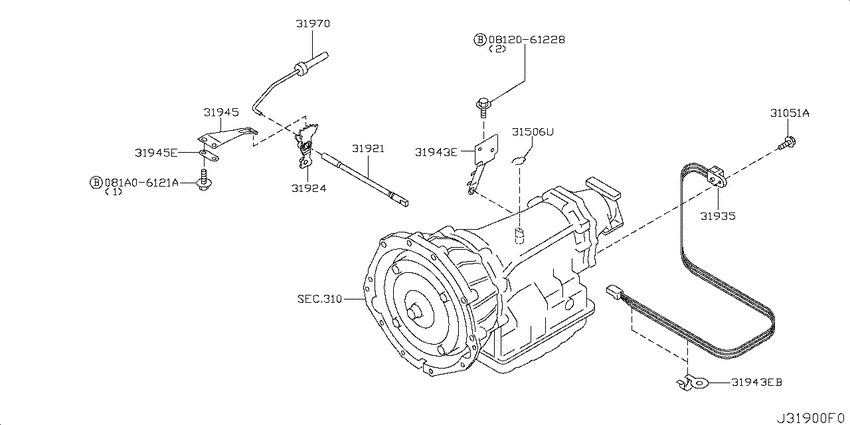

Control switch & system (2007-11-01 ~ ; AT.F5) 9
| # | OEM | Part name |
|---|---|---|
| 31051 | 01121-02961 | BOLT |
| 31921 | 31921-90X00 | Shaft Assy-Manual |
| 31924 | 31924-90X01 | Plate Assy-Manual |
| 31935 | 31935-97X00 | Sensor Assy-Revolution |
| 31943 | 31376-90X02 | Clip-Harness |
| 31943 | 31718-97X00 | Clip-Harness |
| 31945 | 31945-90X01 | Spring-Detent |
| 31945 | 31437-41X04 | Spacer |
| 31970 | 31970-95X00 | Rod Assy-Parking |
| OEM | Part name | Category |
|---|---|---|
| 01121-02961 | BOLT | Control switch & system (2007-11-01 ~ ; AT.F5) |
| 31376-90X02 | Clip-Harness | Control switch & system (2007-11-01 ~ ; AT.F5) |
| 31437-41X04 | Spacer | Control switch & system (2007-11-01 ~ ; AT.F5) |
| 31718-97X00 | Clip-Harness | Control switch & system (2007-11-01 ~ ; AT.F5) |
| 31921-90X00 | Shaft Assy-Manual | Control switch & system (2007-11-01 ~ ; AT.F5) |
| 31924-90X01 | Plate Assy-Manual | Control switch & system (2007-11-01 ~ ; AT.F5) |
| 31935-97X00 | Sensor Assy-Revolution | Control switch & system (2007-11-01 ~ ; AT.F5) |
| 31945-90X01 | Spring-Detent | Control switch & system (2007-11-01 ~ ; AT.F5) |
| 31970-95X00 | Rod Assy-Parking | Control switch & system (2007-11-01 ~ ; AT.F5) |
