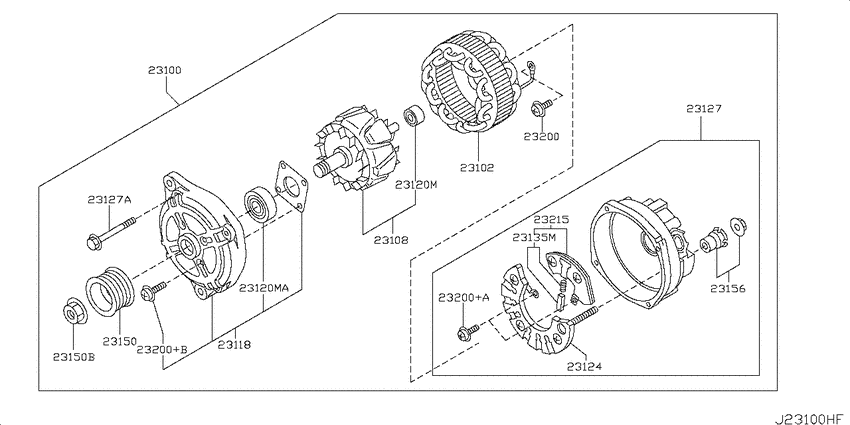

| 23100-JK01A |
Alternator Assy |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
| 23102-JA11A |
Stator Assy |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
| 23108-JK01A |
Rotor Assy |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
| 23115-20P10 |
Screw Set |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
| 23118-JK01A |
Cover Assy-Front |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
| 23120-22J20 |
Bearing-Ball |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
| 23120-30R10 |
Bearing-Ball |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
| 23124-JK01A |
Rectifier Assy |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
| 23127-JK01A |
Cover Assy-Rear |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
| 23127-JK01B |
Cover Assy-Rear |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
| 23131-20P10 |
Bolt-Through |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
| 23142-EG910 |
Brush-F |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
| 23153-70T12 |
Plate-Terminal |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
| 23156-BC40A |
Terminal Assy-B |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
| 23200-EG911 |
Screw Set |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
| 23200-JA11A |
Screw Set |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
| 23215-EG910 |
Regulator Assy-Ic |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
| 23215-JK01A |
Regulator Assy-Ic |
Alternator (2006-11-01 ~ 2007-11-01; VQ35HR) |
