Search › Model › V36
V36

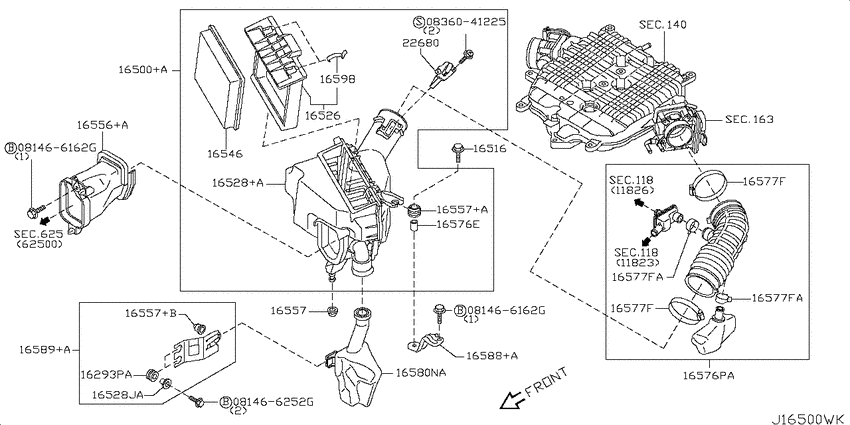

Air cleaner (2007-11-01 ~ ; LH; VQ25HR) 10
| # | OEM | Part name |
|---|---|---|
| 16516 | 16516-CR40B | Bolt |
| 16528 | 49728-55S00 | Collar |
| 16528 | 49728-55S0A | Collar-Insulator |
| 16557 | 16557-4M510 | Cushion-Rubber |
| 16557 | 16557-35F00 | Cushion-Rubber |
| 16577 | 16439-JK20C | Clamp-Hose |
| 16577 | 16439-JK20B | Clamp-Hose |
| 16598 | 16598-AL500 | Clip |
| 16598 | 16598-AL50A | Clip |
| 836041225 | 08360-41225 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08360-41225 | スクリユ-,マシン | Air cleaner (2007-11-01 ~ ; LH; VQ25HR) |
| 16439-JK20B | Clamp-Hose | Air cleaner (2007-11-01 ~ ; LH; VQ25HR) |
| 16439-JK20C | Clamp-Hose | Air cleaner (2007-11-01 ~ ; LH; VQ25HR) |
| 16516-CR40B | Bolt | Air cleaner (2007-11-01 ~ ; LH; VQ25HR) |
| 16557-35F00 | Cushion-Rubber | Air cleaner (2007-11-01 ~ ; LH; VQ25HR) |
| 16557-4M510 | Cushion-Rubber | Air cleaner (2007-11-01 ~ ; LH; VQ25HR) |
| 16598-AL500 | Clip | Air cleaner (2007-11-01 ~ ; LH; VQ25HR) |
| 16598-AL50A | Clip | Air cleaner (2007-11-01 ~ ; LH; VQ25HR) |
| 49728-55S00 | Collar | Air cleaner (2007-11-01 ~ ; LH; VQ25HR) |
| 49728-55S0A | Collar-Insulator | Air cleaner (2007-11-01 ~ ; LH; VQ25HR) |
