Search › Model › V34V
V34V

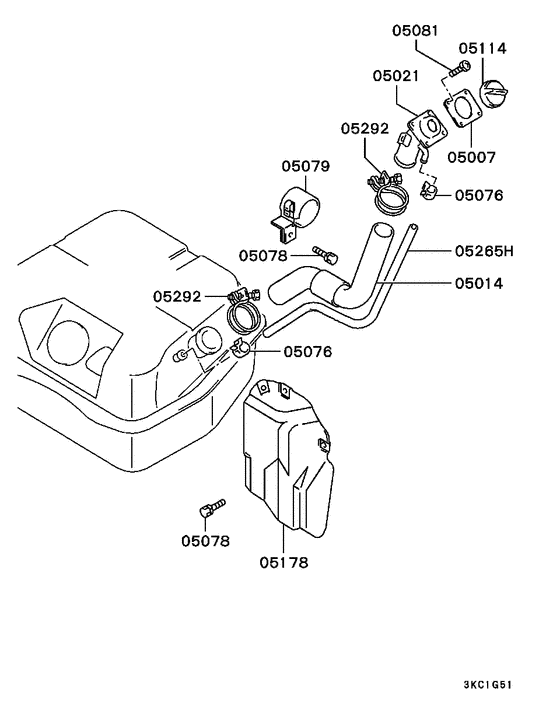

Fuel tank (FUEL FILLER PIPE) 14
| # | OEM | Part name |
|---|---|---|
| 5007 | MA152319 | GASKET, FUEL FILLER NECK |
| 5014 | MB658221 | HOSE, FUEL FILLER |
| 5021 | MB846270 | PIPE, FUEL FILLER |
| 5076 | MS660173 | CLIP, FUEL TANK - D=18.5 |
| 5078 | MS240141 | BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 |
| 5079 | MB554917 | CLAMP, FUEL FILLER PIPE |
| 5081 | MB400513 | SCREW, FUEL TANK - Washer assembled,6x12 |
| 5114 | MB595689 | CAP, FUEL TANK |
| 5114 | MB400395 | CAP, FUEL TANK |
| 5114 | MB846770 | CAP, FUEL TANK |
| 5178 | MB658229 | PROTECTOR, FUEL TANK, UPR |
| 5178 | MR271898 | PROTECTOR, FUEL TANK, UPR |
| 5265 | MB678504 | HOSE, FUEL TANK |
| 5292 | MF661028 | CLAMP, FUEL TANK - D=60 |
| OEM | Part name | Category |
|---|---|---|
| MA152319 | GASKET, FUEL FILLER NECK | Fuel tank (FUEL FILLER PIPE) |
| MB400395 | CAP, FUEL TANK | Fuel tank (FUEL FILLER PIPE) |
| MB400513 | SCREW, FUEL TANK - Washer assembled,6x12 | Fuel tank (FUEL FILLER PIPE) |
| MB554917 | CLAMP, FUEL FILLER PIPE | Fuel tank (FUEL FILLER PIPE) |
| MB595689 | CAP, FUEL TANK | Fuel tank (FUEL FILLER PIPE) |
| MB658221 | HOSE, FUEL FILLER | Fuel tank (FUEL FILLER PIPE) |
| MB658229 | PROTECTOR, FUEL TANK, UPR | Fuel tank (FUEL FILLER PIPE) |
| MB678504 | HOSE, FUEL TANK | Fuel tank (FUEL FILLER PIPE) |
| MB846270 | PIPE, FUEL FILLER | Fuel tank (FUEL FILLER PIPE) |
| MB846770 | CAP, FUEL TANK | Fuel tank (FUEL FILLER PIPE) |
| MF661028 | CLAMP, FUEL TANK - D=60 | Fuel tank (FUEL FILLER PIPE) |
| MR271898 | PROTECTOR, FUEL TANK, UPR | Fuel tank (FUEL FILLER PIPE) |
| MS240141 | BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 | Fuel tank (FUEL FILLER PIPE) |
| MS660173 | CLIP, FUEL TANK - D=18.5 | Fuel tank (FUEL FILLER PIPE) |
