Search › Model › V32W
V32W

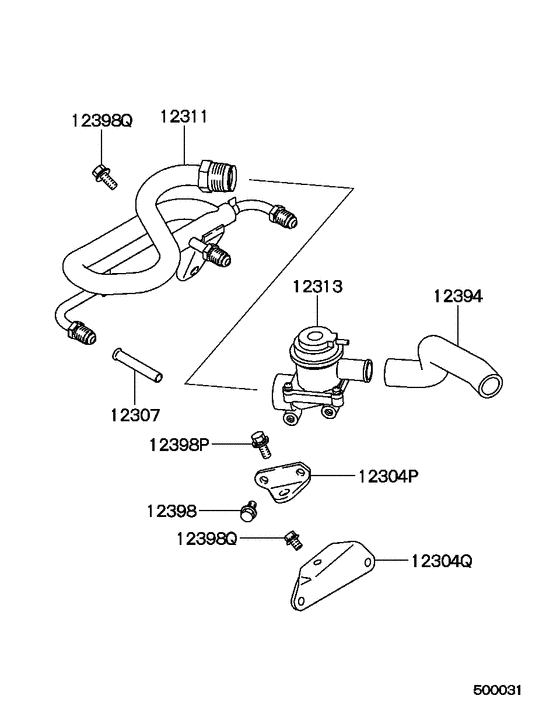

Secondary air supply 9
| # | OEM | Part name |
|---|---|---|
| 12304 | MD114703 | BRACKET,SECONDARY AIR REED VALVE |
| 12304 | MD114289 | BRACKET,SECONDARY AIR REED VALVE |
| 12307 | MD012311 | NOZZLE, SECONDARY AIR |
| 12311 | MD114260 | PIPE,SECONDARY AIR |
| 12313 | MD144015 | VALVE,SECONDARY AIR REED |
| 12394 | MD107904 | HOSE,SECONDARY AIR SUPPLY |
| 12398 | MF140022 | BOLT, ACCEL CABLE SUPPORT - Flange,8x14 |
| 12398 | MF243650 | BOLT, VACUUM PUMP - Washer assembled,8x18 |
| 12398 | MD025178 | BOLT, AIR CLEANER - Flange,8x16 |
| OEM | Part name | Category |
|---|---|---|
| MD012311 | NOZZLE, SECONDARY AIR | Secondary air supply |
| MD025178 | BOLT, AIR CLEANER - Flange,8x16 | Secondary air supply |
| MD107904 | HOSE,SECONDARY AIR SUPPLY | Secondary air supply |
| MD114260 | PIPE,SECONDARY AIR | Secondary air supply |
| MD114289 | BRACKET,SECONDARY AIR REED VALVE | Secondary air supply |
| MD114703 | BRACKET,SECONDARY AIR REED VALVE | Secondary air supply |
| MD144015 | VALVE,SECONDARY AIR REED | Secondary air supply |
| MF140022 | BOLT, ACCEL CABLE SUPPORT - Flange,8x14 | Secondary air supply |
| MF243650 | BOLT, VACUUM PUMP - Washer assembled,8x18 | Secondary air supply |
