Search › Model › V24WG

V24WG

Mitsubishi PAJERO-MONTERO · 1990 · 5,114 parts · 275 categories

5,114 items

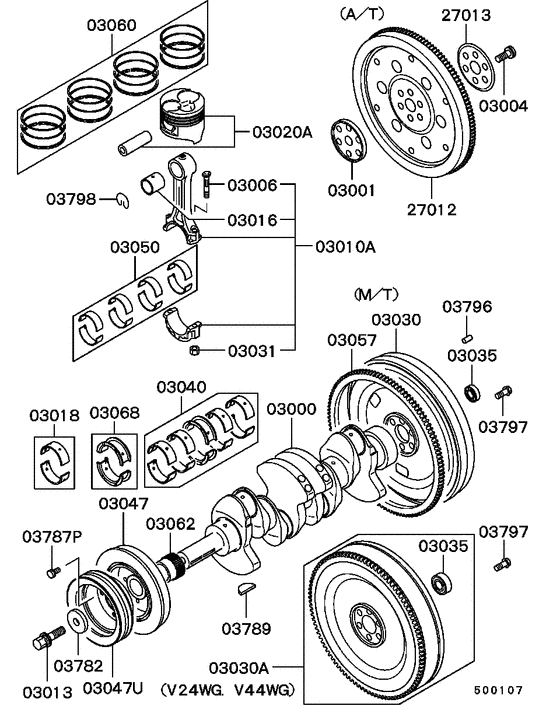

Piston & crankshaft (ALL) 87

#	OEM	Part name
3000	MD102601	CRANKSHAFT
3000	MD376960	CRANKSHAFT
3001	MD716273	ADAPTER, CRANKSHAFT A/T DRIVE PLATE
3004	MD952231	BOLT, A/T DRIVE PLATE - Flange,12x29
3006	MD021105	BOLT, CONNROD - 9x57.5
3010	MD050006	CONNECTING ROD ASSY
3013	MD062109	CENTER BOLT, CRANKSHAFT PULLEY - 14x44
3016	MD050009	BUSHING, CONNROD
3018	MD310665	BEARING, CRANKSHAFT - Plain,std 1
3018	MD310666	BEARING, CRANKSHAFT - Plain,std 2
3018	MD310667	BEARING, CRANKSHAFT - Plain,std 3
3018	MD310668	BEARING, CRANKSHAFT - Plain,std 4
3018	MD310669	BEARING, CRANKSHAFT - Plain,std 5
3020	MD168300	PISTON & PIN ASSY - Std a
3020	MD168301	PISTON & PIN ASSY - Std b
3020	MD168302	PISTON & PIN ASSY - Std c
3020	MD168306	PISTON & PIN ASSY - O/size 0.25
3020	MD168307	PISTON & PIN ASSY - O/size 0.50
3020	MD168308	PISTON & PIN ASSY - O/size 0.75
3020	MD168309	PISTON & PIN ASSY - O/size 1.00
3020	MD168314	PISTON & PIN ASSY - Std a
3020	MD168315	PISTON & PIN ASSY - Std b
3020	MD168316	PISTON & PIN ASSY - Std c
3020	MD168320	PISTON & PIN ASSY - O/size 0.25
3020	MD168321	PISTON & PIN ASSY - O/size 0.50
3020	MD168322	PISTON & PIN ASSY - O/size 0.75
3020	MD168323	PISTON & PIN ASSY - O/size 1.00
3020	MD182600	PISTON & PIN ASSY - Std a
3020	MD182601	PISTON & PIN ASSY - Std b
3020	MD182602	PISTON & PIN ASSY - Std c
3020	MD182606	PISTON & PIN ASSY - Std a
3020	MD182607	PISTON & PIN ASSY - Std b
3020	MD182608	PISTON & PIN ASSY - Std c
3020	MD182612	PISTON & PIN ASSY - O/size 0.25
3020	MD182613	PISTON & PIN ASSY - O/size 0.50
3020	MD182614	PISTON & PIN ASSY - O/size 0.75
3020	MD182615	PISTON & PIN ASSY - O/size 1.00
3020	MD182620	PISTON & PIN ASSY - O/size 0.25
3020	MD182621	PISTON & PIN ASSY - O/size 0.50
3020	MD182622	PISTON & PIN ASSY - O/size 0.75
3020	MD182623	PISTON & PIN ASSY - O/size 1.00
3020	MD304852	PISTON & PIN ASSY - Std a
3020	MD304853	PISTON & PIN ASSY - Std b
3020	MD304854	PISTON & PIN ASSY - Std c
3020	MD304858	PISTON & PIN ASSY - Std a
3020	MD304859	PISTON & PIN ASSY - Std b
3020	MD304860	PISTON & PIN ASSY - Std c
3020	MD308461	PISTON & PIN ASSY - O/size 0.50
3020	MD308463	PISTON & PIN ASSY - O/size 1.00
3020	MD308469	PISTON & PIN ASSY - O/size 0.50
3020	MD308471	PISTON & PIN ASSY - O/size 1.00
3030	MB837137	FLYWHEEL ASSY
3031	MD006704	NUT, CONNROD - 9
3035	MH040024	BEARING, FLYWHEEL DRIVE PINION - Ball
3040	MD050360	BEARING SET, CRANKSHAFT
3040	MD973121	BEARING SET, CRANKSHAFT
3040	MD050361	BEARING SET, CRANKSHAFT
3040	MD050362	BEARING SET, CRANKSHAFT
3040	MD050363	BEARING SET, CRANKSHAFT
3047	MD110165	PULLEY, CRANKSHAFT - V-ditch
3047	MD160546	PULLEY, CRANKSHAFT - V-ditch
3047	MB844151	PULLEY, CRANKSHAFT - V-ditch
3047	MD304557	PULLEY, CRANKSHAFT - V-ditch
3050	MD026430	BEARING SET, CONNROD - Plain,std
3050	MD153622	BEARING SET, CONNROD - Plain,std
3050	MD026431	BEARING SET, CONNROD - Plain,u/size 0.25
3050	MD026432	BEARING SET, CONNROD - Plain,u/size 0.50
3050	MD026433	BEARING SET, CONNROD - Plain,u/size 0.75
3060	MD168293	RING SET, PISTON - Std
3060	MD168294	RING SET, PISTON - O/size 0.25
3060	MD168295	RING SET, PISTON - O/size 0.50
3060	MD168296	RING SET, PISTON - O/size 0.75
3060	MD168297	RING SET, PISTON - O/size 1.00
3062	MD099211	SLEEVE, CRANKSHAFT OIL PUMP DRIVE GEAR
3068	MD310655	BEARING, CRANKSHAFT, CTR (GREEN) - Plain,std 1
3068	MD310656	BEARING, CRANKSHAFT, CTR (YELLOW) - Plain,std 2
3068	MD310657	BEARING, CRANKSHAFT, CTR (NO COLOR) - Plain,std 3
3068	MD310658	BEARING, CRANKSHAFT, CTR (BLUE) - Plain,std 4
3068	MD310659	BEARING, CRANKSHAFT, CTR (RED) - Plain,std 5
3782	MD050359	WASHER, CRANKSHAFT PULLEY - Plain,14.5
3787	MS240210	BOLT, CRANKSHAFT PULLEY - Washer assembled,8x16
3789	MD000606	KEY, TIMING BELT TRAIN - Woodruff,5x9.6
3797	MB837145	BOLT, FLYWHEEL
3797	MB886344	BOLT, FLYWHEEL
3798	MD050018	SNAP RING, PISTON
27012	MD725141	PLATE, A/T DRIVE
27013	MD952195	PLATE, A/T DRIVE PLATE ADAPTER

OEM	Part name	Category
MB837137	FLYWHEEL ASSY	Piston & crankshaft (ALL)
MB837145	BOLT, FLYWHEEL	Piston & crankshaft (ALL)
MB844151	PULLEY, CRANKSHAFT - V-ditch	Piston & crankshaft (ALL)
MB886344	BOLT, FLYWHEEL	Piston & crankshaft (ALL)
MD000606	KEY, TIMING BELT TRAIN - Woodruff,5x9.6	Piston & crankshaft (ALL)
MD006704	NUT, CONNROD - 9	Piston & crankshaft (ALL)
MD021105	BOLT, CONNROD - 9x57.5	Piston & crankshaft (ALL)
MD026430	BEARING SET, CONNROD - Plain,std	Piston & crankshaft (ALL)
MD026431	BEARING SET, CONNROD - Plain,u/size 0.25	Piston & crankshaft (ALL)
MD026432	BEARING SET, CONNROD - Plain,u/size 0.50	Piston & crankshaft (ALL)
MD026433	BEARING SET, CONNROD - Plain,u/size 0.75	Piston & crankshaft (ALL)
MD050006	CONNECTING ROD ASSY	Piston & crankshaft (ALL)
MD050009	BUSHING, CONNROD	Piston & crankshaft (ALL)
MD050018	SNAP RING, PISTON	Piston & crankshaft (ALL)
MD050359	WASHER, CRANKSHAFT PULLEY - Plain,14.5	Piston & crankshaft (ALL)
MD050360	BEARING SET, CRANKSHAFT	Piston & crankshaft (ALL)
MD050361	BEARING SET, CRANKSHAFT	Piston & crankshaft (ALL)
MD050362	BEARING SET, CRANKSHAFT	Piston & crankshaft (ALL)
MD050363	BEARING SET, CRANKSHAFT	Piston & crankshaft (ALL)
MD062109	CENTER BOLT, CRANKSHAFT PULLEY - 14x44	Piston & crankshaft (ALL)
MD099211	SLEEVE, CRANKSHAFT OIL PUMP DRIVE GEAR	Piston & crankshaft (ALL)
MD102601	CRANKSHAFT	Piston & crankshaft (ALL)
MD110165	PULLEY, CRANKSHAFT - V-ditch	Piston & crankshaft (ALL)
MD153622	BEARING SET, CONNROD - Plain,std	Piston & crankshaft (ALL)
MD160546	PULLEY, CRANKSHAFT - V-ditch	Piston & crankshaft (ALL)
MD168293	RING SET, PISTON - Std	Piston & crankshaft (ALL)
MD168294	RING SET, PISTON - O/size 0.25	Piston & crankshaft (ALL)
MD168295	RING SET, PISTON - O/size 0.50	Piston & crankshaft (ALL)
MD168296	RING SET, PISTON - O/size 0.75	Piston & crankshaft (ALL)
MD168297	RING SET, PISTON - O/size 1.00	Piston & crankshaft (ALL)
MD168300	PISTON & PIN ASSY - Std a	Piston & crankshaft (ALL)
MD168301	PISTON & PIN ASSY - Std b	Piston & crankshaft (ALL)
MD168302	PISTON & PIN ASSY - Std c	Piston & crankshaft (ALL)
MD168306	PISTON & PIN ASSY - O/size 0.25	Piston & crankshaft (ALL)
MD168307	PISTON & PIN ASSY - O/size 0.50	Piston & crankshaft (ALL)
MD168308	PISTON & PIN ASSY - O/size 0.75	Piston & crankshaft (ALL)
MD168309	PISTON & PIN ASSY - O/size 1.00	Piston & crankshaft (ALL)
MD168314	PISTON & PIN ASSY - Std a	Piston & crankshaft (ALL)
MD168315	PISTON & PIN ASSY - Std b	Piston & crankshaft (ALL)
MD168316	PISTON & PIN ASSY - Std c	Piston & crankshaft (ALL)
MD168320	PISTON & PIN ASSY - O/size 0.25	Piston & crankshaft (ALL)
MD168321	PISTON & PIN ASSY - O/size 0.50	Piston & crankshaft (ALL)
MD168322	PISTON & PIN ASSY - O/size 0.75	Piston & crankshaft (ALL)
MD168323	PISTON & PIN ASSY - O/size 1.00	Piston & crankshaft (ALL)
MD182600	PISTON & PIN ASSY - Std a	Piston & crankshaft (ALL)
MD182601	PISTON & PIN ASSY - Std b	Piston & crankshaft (ALL)
MD182602	PISTON & PIN ASSY - Std c	Piston & crankshaft (ALL)
MD182606	PISTON & PIN ASSY - Std a	Piston & crankshaft (ALL)
MD182607	PISTON & PIN ASSY - Std b	Piston & crankshaft (ALL)
MD182608	PISTON & PIN ASSY - Std c	Piston & crankshaft (ALL)
MD182612	PISTON & PIN ASSY - O/size 0.25	Piston & crankshaft (ALL)
MD182613	PISTON & PIN ASSY - O/size 0.50	Piston & crankshaft (ALL)
MD182614	PISTON & PIN ASSY - O/size 0.75	Piston & crankshaft (ALL)
MD182615	PISTON & PIN ASSY - O/size 1.00	Piston & crankshaft (ALL)
MD182620	PISTON & PIN ASSY - O/size 0.25	Piston & crankshaft (ALL)
MD182621	PISTON & PIN ASSY - O/size 0.50	Piston & crankshaft (ALL)
MD182622	PISTON & PIN ASSY - O/size 0.75	Piston & crankshaft (ALL)
MD182623	PISTON & PIN ASSY - O/size 1.00	Piston & crankshaft (ALL)
MD304557	PULLEY, CRANKSHAFT - V-ditch	Piston & crankshaft (ALL)
MD304852	PISTON & PIN ASSY - Std a	Piston & crankshaft (ALL)
MD304853	PISTON & PIN ASSY - Std b	Piston & crankshaft (ALL)
MD304854	PISTON & PIN ASSY - Std c	Piston & crankshaft (ALL)
MD304858	PISTON & PIN ASSY - Std a	Piston & crankshaft (ALL)
MD304859	PISTON & PIN ASSY - Std b	Piston & crankshaft (ALL)
MD304860	PISTON & PIN ASSY - Std c	Piston & crankshaft (ALL)
MD308461	PISTON & PIN ASSY - O/size 0.50	Piston & crankshaft (ALL)
MD308463	PISTON & PIN ASSY - O/size 1.00	Piston & crankshaft (ALL)
MD308469	PISTON & PIN ASSY - O/size 0.50	Piston & crankshaft (ALL)
MD308471	PISTON & PIN ASSY - O/size 1.00	Piston & crankshaft (ALL)
MD310655	BEARING, CRANKSHAFT, CTR (GREEN) - Plain,std 1	Piston & crankshaft (ALL)
MD310656	BEARING, CRANKSHAFT, CTR (YELLOW) - Plain,std 2	Piston & crankshaft (ALL)
MD310657	BEARING, CRANKSHAFT, CTR (NO COLOR) - Plain,std 3	Piston & crankshaft (ALL)
MD310658	BEARING, CRANKSHAFT, CTR (BLUE) - Plain,std 4	Piston & crankshaft (ALL)
MD310659	BEARING, CRANKSHAFT, CTR (RED) - Plain,std 5	Piston & crankshaft (ALL)
MD310665	BEARING, CRANKSHAFT - Plain,std 1	Piston & crankshaft (ALL)
MD310666	BEARING, CRANKSHAFT - Plain,std 2	Piston & crankshaft (ALL)
MD310667	BEARING, CRANKSHAFT - Plain,std 3	Piston & crankshaft (ALL)
MD310668	BEARING, CRANKSHAFT - Plain,std 4	Piston & crankshaft (ALL)
MD310669	BEARING, CRANKSHAFT - Plain,std 5	Piston & crankshaft (ALL)
MD376960	CRANKSHAFT	Piston & crankshaft (ALL)
MD716273	ADAPTER, CRANKSHAFT A/T DRIVE PLATE	Piston & crankshaft (ALL)
MD725141	PLATE, A/T DRIVE	Piston & crankshaft (ALL)
MD952195	PLATE, A/T DRIVE PLATE ADAPTER	Piston & crankshaft (ALL)
MD952231	BOLT, A/T DRIVE PLATE - Flange,12x29	Piston & crankshaft (ALL)
MD973121	BEARING SET, CRANKSHAFT	Piston & crankshaft (ALL)
MH040024	BEARING, FLYWHEEL DRIVE PINION - Ball	Piston & crankshaft (ALL)
MS240210	BOLT, CRANKSHAFT PULLEY - Washer assembled,8x16	Piston & crankshaft (ALL)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 275
Collected: 2026-07-24
