Search › Model › V24WG
V24WG

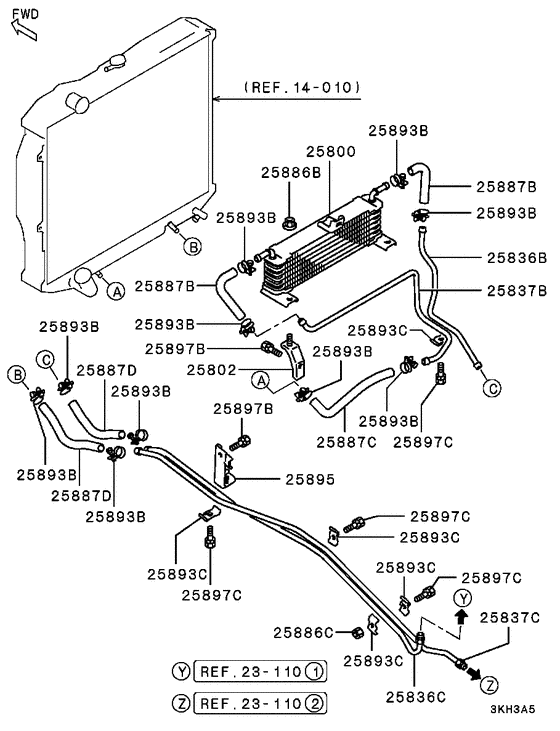

A/t oil cooler & tube (ALL) 19
| # | OEM | Part name |
|---|---|---|
| 25800 | MB010969 | OIL COOLER, T/M |
| 25802 | MB010971 | BRACKET, T/M OIL COOLER |
| 25836 | MB010974 | TUBE, T/M OIL COOLER FEED |
| 25836 | MB010972 | TUBE, T/M OIL COOLER FEED |
| 25837 | MB010981 | TUBE, T/M OIL COOLER RETURN |
| 25837 | MB010973 | TUBE, T/M OIL COOLER RETURN |
| 25886 | MS440503 | NUT - Washer assembled,8 |
| 25886 | MF430004 | NUT, ENG OIL PAN - 6 |
| 25887 | MB010497 | HOSE, T/M OIL COOLER LINE - 10x100,50-85 |
| 25887 | MB010490 | HOSE, T/M OIL COOLER LINE - Rubber,10x300,50-85 |
| 25887 | MB010495 | HOSE, T/M OIL COOLER LINE - Rubber,10x260,50-85 |
| 25887 | MB010457 | HOSE, T/M OIL COOLER LINE - Rubber,10x185 |
| 25887 | MB010721 | HOSE, T/M OIL COOLER LINE - Rubber,10x610+pad |
| 25893 | MU470081 | CLAMP, T/M OIL COOLER LINE - 17 |
| 25893 | MB033459 | CLAMP, T/M OIL COOLER LINE - 10-10 |
| 25895 | MB010978 | BRACKET, T/M OIL COOLER LINE |
| 25897 | MF243649 | BOLT, FLYWHEEL HOUSING - Washer assembled,8x16 |
| 25897 | MS240909 | BOLT, ENG OIL COOLER - Washer assembled,8x16 |
| 25897 | MF240027 | BOLT, FUEL LINE - Washer assembled,6x20 |
| OEM | Part name | Category |
|---|---|---|
| MB010457 | HOSE, T/M OIL COOLER LINE - Rubber,10x185 | A/t oil cooler & tube (ALL) |
| MB010490 | HOSE, T/M OIL COOLER LINE - Rubber,10x300,50-85 | A/t oil cooler & tube (ALL) |
| MB010495 | HOSE, T/M OIL COOLER LINE - Rubber,10x260,50-85 | A/t oil cooler & tube (ALL) |
| MB010497 | HOSE, T/M OIL COOLER LINE - 10x100,50-85 | A/t oil cooler & tube (ALL) |
| MB010721 | HOSE, T/M OIL COOLER LINE - Rubber,10x610+pad | A/t oil cooler & tube (ALL) |
| MB010969 | OIL COOLER, T/M | A/t oil cooler & tube (ALL) |
| MB010971 | BRACKET, T/M OIL COOLER | A/t oil cooler & tube (ALL) |
| MB010972 | TUBE, T/M OIL COOLER FEED | A/t oil cooler & tube (ALL) |
| MB010973 | TUBE, T/M OIL COOLER RETURN | A/t oil cooler & tube (ALL) |
| MB010974 | TUBE, T/M OIL COOLER FEED | A/t oil cooler & tube (ALL) |
| MB010978 | BRACKET, T/M OIL COOLER LINE | A/t oil cooler & tube (ALL) |
| MB010981 | TUBE, T/M OIL COOLER RETURN | A/t oil cooler & tube (ALL) |
| MB033459 | CLAMP, T/M OIL COOLER LINE - 10-10 | A/t oil cooler & tube (ALL) |
| MF240027 | BOLT, FUEL LINE - Washer assembled,6x20 | A/t oil cooler & tube (ALL) |
| MF243649 | BOLT, FLYWHEEL HOUSING - Washer assembled,8x16 | A/t oil cooler & tube (ALL) |
| MF430004 | NUT, ENG OIL PAN - 6 | A/t oil cooler & tube (ALL) |
| MS240909 | BOLT, ENG OIL COOLER - Washer assembled,8x16 | A/t oil cooler & tube (ALL) |
| MS440503 | NUT - Washer assembled,8 | A/t oil cooler & tube (ALL) |
| MU470081 | CLAMP, T/M OIL COOLER LINE - 17 | A/t oil cooler & tube (ALL) |
