Search › Model › V23C
V23C

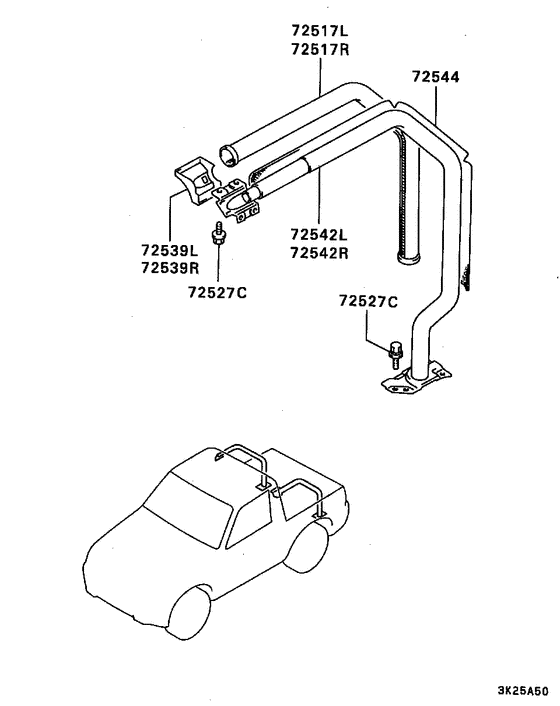

Roll bar (W/O REAR SEAT BELT) 8
| # | OEM | Part name |
|---|---|---|
| 72517 | MB847809 | PROTECTOR, ROLL BAR SIDE, LH |
| 72517 | MB847810 | PROTECTOR, ROLL BAR SIDE, RH |
| 72527 | MF247278 | BOLT, FENDER SHIELD - Washer assembled,10x20 |
| 72527 | MS240919 | BOLT, FR SEAT - Washer assembled,10x20 |
| 72539 | MB847105 | COVER, ROLL BAR BRACKET, LH |
| 72539 | MB847106 | COVER, ROLL BAR BRACKET, RH |
| 72542 | MB800903 | ROLL BAR, SIDE, LH |
| 72542 | MB800904 | ROLL BAR, SIDE, RH |
| OEM | Part name | Category |
|---|---|---|
| MB800903 | ROLL BAR, SIDE, LH | Roll bar (W/O REAR SEAT BELT) |
| MB800904 | ROLL BAR, SIDE, RH | Roll bar (W/O REAR SEAT BELT) |
| MB847105 | COVER, ROLL BAR BRACKET, LH | Roll bar (W/O REAR SEAT BELT) |
| MB847106 | COVER, ROLL BAR BRACKET, RH | Roll bar (W/O REAR SEAT BELT) |
| MB847809 | PROTECTOR, ROLL BAR SIDE, LH | Roll bar (W/O REAR SEAT BELT) |
| MB847810 | PROTECTOR, ROLL BAR SIDE, RH | Roll bar (W/O REAR SEAT BELT) |
| MF247278 | BOLT, FENDER SHIELD - Washer assembled,10x20 | Roll bar (W/O REAR SEAT BELT) |
| MS240919 | BOLT, FR SEAT - Washer assembled,10x20 | Roll bar (W/O REAR SEAT BELT) |
