V23C

Mitsubishi PAJERO-MONTERO · 1990 · 6,593 parts · 508 categories

6,593 items

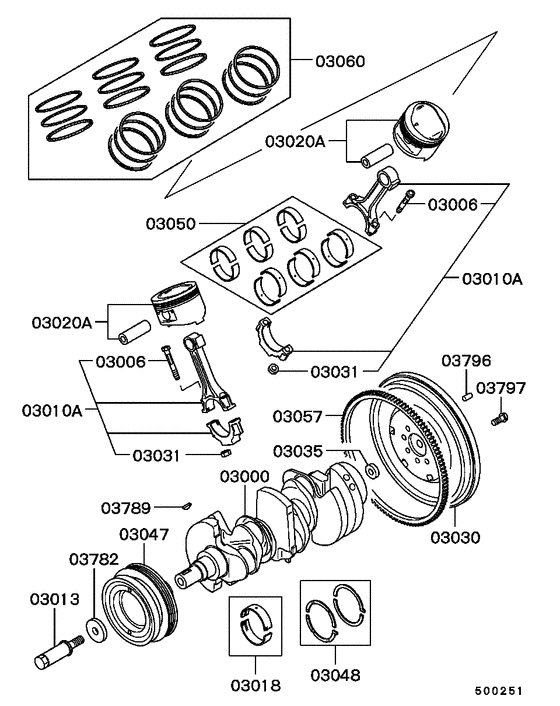

Piston & crankshaft (9704.1-) 54

#	OEM	Part name
3000	MD144525	CRANKSHAFT
3006	MD096144	BOLT, CONNROD
3006	MN149212	BOLT, CONNROD - 9x58.5
3010	MD096043	CONNECTING ROD ASSY
3013	MD138069	CENTER BOLT, CRANKSHAFT PULLEY - 14x40
3013	MD172725	CENTER BOLT, CRANKSHAFT PULLEY - 14x49
3018	MD197608	BEARING, CRANKSHAFT - Plain,std 1
3018	MD197609	BEARING, CRANKSHAFT - Plain,std 2
3018	MD197610	BEARING, CRANKSHAFT - Plain,std 3
3018	MD197611	BEARING, CRANKSHAFT - Plain,std 4
3018	MD197612	BEARING, CRANKSHAFT - Plain,std 5
3020	MD318500	PISTON & PIN ASSY - Std a
3020	MD318501	PISTON & PIN ASSY - Std b
3020	MD318502	PISTON & PIN ASSY - Std c
3020	MD318506	PISTON & PIN ASSY - O/size 0.50
3020	MD318507	PISTON & PIN ASSY - O/size 1.00
3030	MD121840	FLYWHEEL
3030	MD121839	FLYWHEEL ASSY
3031	MD006704	NUT, CONNROD - 9
3035	MH040024	BEARING, FLYWHEEL DRIVE PINION - Ball
3047	MD141468	PULLEY, CRANKSHAFT - V-ditch
3047	MD311472	PULLEY, CRANKSHAFT - V-ditch
3047	MD368262	PULLEY, CRANKSHAFT - V-ditch
3048	MD116890	THRUST BEARING SET, CRANKSHAFT - Plain
3050	MD105277	BEARING SET, CONNROD - Plain,std
3057	MD121841	RING GEAR, FLYWHEEL - N=117
3060	MD104922	RING SET, PISTON (STD) - STD, RP
3060	MD104923	RING SET, PISTON - O/size 0.25
3060	MD104924	RING SET, PISTON - O/size 0.50
3060	MD104925	RING SET, PISTON - O/size 0.75
3060	MD104926	RING SET, PISTON - O/size 1.00
3060	MD104939	RING SET, PISTON (STD) - STD, TP
3060	MD105201	RING SET, PISTON - O/size 0.25
3060	MD105202	RING SET, PISTON - O/size 0.50
3060	MD105203	RING SET, PISTON - O/size 0.75
3060	MD105204	RING SET, PISTON - O/size 1.00
3060	MD301716	RING SET, PISTON - Std
3060	MD301717	RING SET, PISTON - O/size 0.25
3060	MD301718	RING SET, PISTON - O/size 0.50
3060	MD301719	RING SET, PISTON - O/size 0.75
3060	MD301720	RING SET, PISTON - O/size 1.00
3060	MD301798	RING SET, PISTON - Std
3060	MD329755	RING SET, PISTON - Std
3060	MD301799	RING SET, PISTON - O/size 0.25
3060	MD301800	RING SET, PISTON - O/size 0.50
3060	MD301801	RING SET, PISTON - O/size 0.75
3060	MD301802	RING SET, PISTON - O/size 1.00
3060	MD329757	RING SET, PISTON - O/size 0.50
3060	MD329759	RING SET, PISTON - O/size 1.00
3782	MD096930	WASHER, CRANKSHAFT PULLEY - Plain,14.5
3782	MR994412	WASHER, CRANKSHAFT PULLEY - 14.5
3789	MD008959	KEY, CRANKSHAFT
3796	MF472404	PIN, CYLINDER BLOCK - Dowel,8x18
3797	MD113400	BOLT, A/T DRIVE PLATE - Flange,10x25

OEM	Part name	Category
MD006704	NUT, CONNROD - 9	Piston & crankshaft (9704.1-)
MD008959	KEY, CRANKSHAFT	Piston & crankshaft (9704.1-)
MD096043	CONNECTING ROD ASSY	Piston & crankshaft (9704.1-)
MD096144	BOLT, CONNROD	Piston & crankshaft (9704.1-)
MD096930	WASHER, CRANKSHAFT PULLEY - Plain,14.5	Piston & crankshaft (9704.1-)
MD104922	RING SET, PISTON (STD) - STD, RP	Piston & crankshaft (9704.1-)
MD104923	RING SET, PISTON - O/size 0.25	Piston & crankshaft (9704.1-)
MD104924	RING SET, PISTON - O/size 0.50	Piston & crankshaft (9704.1-)
MD104925	RING SET, PISTON - O/size 0.75	Piston & crankshaft (9704.1-)
MD104926	RING SET, PISTON - O/size 1.00	Piston & crankshaft (9704.1-)
MD104939	RING SET, PISTON (STD) - STD, TP	Piston & crankshaft (9704.1-)
MD105201	RING SET, PISTON - O/size 0.25	Piston & crankshaft (9704.1-)
MD105202	RING SET, PISTON - O/size 0.50	Piston & crankshaft (9704.1-)
MD105203	RING SET, PISTON - O/size 0.75	Piston & crankshaft (9704.1-)
MD105204	RING SET, PISTON - O/size 1.00	Piston & crankshaft (9704.1-)
MD105277	BEARING SET, CONNROD - Plain,std	Piston & crankshaft (9704.1-)
MD113400	BOLT, A/T DRIVE PLATE - Flange,10x25	Piston & crankshaft (9704.1-)
MD116890	THRUST BEARING SET, CRANKSHAFT - Plain	Piston & crankshaft (9704.1-)
MD121839	FLYWHEEL ASSY	Piston & crankshaft (9704.1-)
MD121840	FLYWHEEL	Piston & crankshaft (9704.1-)
MD121841	RING GEAR, FLYWHEEL - N=117	Piston & crankshaft (9704.1-)
MD138069	CENTER BOLT, CRANKSHAFT PULLEY - 14x40	Piston & crankshaft (9704.1-)
MD141468	PULLEY, CRANKSHAFT - V-ditch	Piston & crankshaft (9704.1-)
MD144525	CRANKSHAFT	Piston & crankshaft (9704.1-)
MD172725	CENTER BOLT, CRANKSHAFT PULLEY - 14x49	Piston & crankshaft (9704.1-)
MD197608	BEARING, CRANKSHAFT - Plain,std 1	Piston & crankshaft (9704.1-)
MD197609	BEARING, CRANKSHAFT - Plain,std 2	Piston & crankshaft (9704.1-)
MD197610	BEARING, CRANKSHAFT - Plain,std 3	Piston & crankshaft (9704.1-)
MD197611	BEARING, CRANKSHAFT - Plain,std 4	Piston & crankshaft (9704.1-)
MD197612	BEARING, CRANKSHAFT - Plain,std 5	Piston & crankshaft (9704.1-)
MD301716	RING SET, PISTON - Std	Piston & crankshaft (9704.1-)
MD301717	RING SET, PISTON - O/size 0.25	Piston & crankshaft (9704.1-)
MD301718	RING SET, PISTON - O/size 0.50	Piston & crankshaft (9704.1-)
MD301719	RING SET, PISTON - O/size 0.75	Piston & crankshaft (9704.1-)
MD301720	RING SET, PISTON - O/size 1.00	Piston & crankshaft (9704.1-)
MD301798	RING SET, PISTON - Std	Piston & crankshaft (9704.1-)
MD301799	RING SET, PISTON - O/size 0.25	Piston & crankshaft (9704.1-)
MD301800	RING SET, PISTON - O/size 0.50	Piston & crankshaft (9704.1-)
MD301801	RING SET, PISTON - O/size 0.75	Piston & crankshaft (9704.1-)
MD301802	RING SET, PISTON - O/size 1.00	Piston & crankshaft (9704.1-)
MD311472	PULLEY, CRANKSHAFT - V-ditch	Piston & crankshaft (9704.1-)
MD318500	PISTON & PIN ASSY - Std a	Piston & crankshaft (9704.1-)
MD318501	PISTON & PIN ASSY - Std b	Piston & crankshaft (9704.1-)
MD318502	PISTON & PIN ASSY - Std c	Piston & crankshaft (9704.1-)
MD318506	PISTON & PIN ASSY - O/size 0.50	Piston & crankshaft (9704.1-)
MD318507	PISTON & PIN ASSY - O/size 1.00	Piston & crankshaft (9704.1-)
MD329755	RING SET, PISTON - Std	Piston & crankshaft (9704.1-)
MD329757	RING SET, PISTON - O/size 0.50	Piston & crankshaft (9704.1-)
MD329759	RING SET, PISTON - O/size 1.00	Piston & crankshaft (9704.1-)
MD368262	PULLEY, CRANKSHAFT - V-ditch	Piston & crankshaft (9704.1-)
MF472404	PIN, CYLINDER BLOCK - Dowel,8x18	Piston & crankshaft (9704.1-)
MH040024	BEARING, FLYWHEEL DRIVE PINION - Ball	Piston & crankshaft (9704.1-)
MN149212	BOLT, CONNROD - 9x58.5	Piston & crankshaft (9704.1-)
MR994412	WASHER, CRANKSHAFT PULLEY - 14.5	Piston & crankshaft (9704.1-)
