Search › Model › V23C

V23C

Mitsubishi PAJERO-MONTERO · 1990 · 6,593 parts · 508 categories
V23C ×

← Back to categories

6,593 items

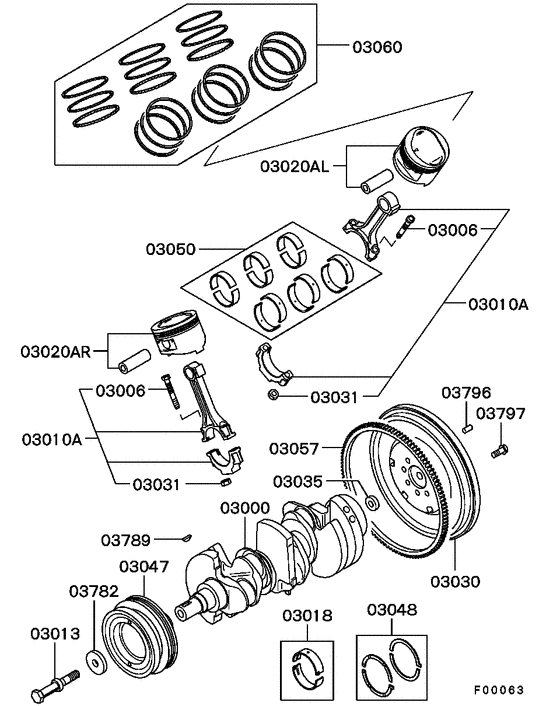

Piston & crankshaft (9205.1-9703.3) 77
#OEMPart name
3000 MD144525 CRANKSHAFT
3006 MD096144 BOLT, CONNROD
3006 MN149212 BOLT, CONNROD - 9x58.5
3010 MD096043 CONNECTING ROD ASSY
3013 MD138069 CENTER BOLT, CRANKSHAFT PULLEY - 14x40
3013 MD172725 CENTER BOLT, CRANKSHAFT PULLEY - 14x49
3018 MD197608 BEARING, CRANKSHAFT - Plain,std 1
3018 MD197609 BEARING, CRANKSHAFT - Plain,std 2
3018 MD197610 BEARING, CRANKSHAFT - Plain,std 3
3018 MD197611 BEARING, CRANKSHAFT - Plain,std 4
3018 MD197612 BEARING, CRANKSHAFT - Plain,std 5
3020 MD152562 PISTON & PIN ASSY, LH - Std a
3020 MD152563 PISTON & PIN ASSY, LH - Std b
3020 MD152564 PISTON & PIN ASSY, LH - Std c
3020 MD152575 PISTON & PIN ASSY, LH - O/size 0.25
3020 MD152576 PISTON & PIN ASSY, LH - O/size 0.50
3020 MD152577 PISTON & PIN ASSY, LH - O/size 0.75
3020 MD152578 PISTON & PIN ASSY, LH - O/size 1.00
3020 MD197813 PISTON & PIN ASSY, LH - Std a
3020 MD197814 PISTON & PIN ASSY, LH - Std b
3020 MD197815 PISTON & PIN ASSY, LH - Std c
3020 MD301741 PISTON & PIN ASSY, LH - O/size 0.25
3020 MD301742 PISTON & PIN ASSY, LH - O/size 0.50
3020 MD301743 PISTON & PIN ASSY, LH - O/size 0.75
3020 MD301744 PISTON & PIN ASSY, LH - O/size 1.00
3020 MD119670 PISTON & PIN ASSY, RH - Std a
3020 MD119671 PISTON & PIN ASSY, RH - Std b
3020 MD119672 PISTON & PIN ASSY, RH - Std c
3020 MD131251 PISTON & PIN ASSY, RH - O/size 0.25
3020 MD131252 PISTON & PIN ASSY, RH - O/size 0.50
3020 MD131253 PISTON & PIN ASSY, RH - O/size 0.75
3020 MD131254 PISTON & PIN ASSY, RH - O/size 1.00
3020 MD197807 PISTON & PIN ASSY, RH - Std a
3020 MD197808 PISTON & PIN ASSY, RH - Std b
3020 MD197809 PISTON & PIN ASSY, RH - Std c
3020 MD301733 PISTON & PIN ASSY, RH - O/size 0.25
3020 MD301734 PISTON & PIN ASSY, RH - O/size 0.50
3020 MD301735 PISTON & PIN ASSY, RH - O/size 0.75
3020 MD301736 PISTON & PIN ASSY, RH - O/size 1.00
3030 MD121840 FLYWHEEL
3030 MD121839 FLYWHEEL ASSY
3031 MD006704 NUT, CONNROD - 9
3035 MH040024 BEARING, FLYWHEEL DRIVE PINION - Ball
3047 MD141468 PULLEY, CRANKSHAFT - V-ditch
3047 MD311472 PULLEY, CRANKSHAFT - V-ditch
3047 MD368262 PULLEY, CRANKSHAFT - V-ditch
3048 MD116890 THRUST BEARING SET, CRANKSHAFT - Plain
3050 MD105277 BEARING SET, CONNROD - Plain,std
3057 MD121841 RING GEAR, FLYWHEEL - N=117
3060 MD104922 RING SET, PISTON (STD) - STD, RP
3060 MD104923 RING SET, PISTON - O/size 0.25
3060 MD104924 RING SET, PISTON - O/size 0.50
3060 MD104925 RING SET, PISTON - O/size 0.75
3060 MD104926 RING SET, PISTON - O/size 1.00
3060 MD104939 RING SET, PISTON (STD) - STD, TP
3060 MD105201 RING SET, PISTON - O/size 0.25
3060 MD105202 RING SET, PISTON - O/size 0.50
3060 MD105203 RING SET, PISTON - O/size 0.75
3060 MD105204 RING SET, PISTON - O/size 1.00
3060 MD301716 RING SET, PISTON - Std
3060 MD301717 RING SET, PISTON - O/size 0.25
3060 MD301718 RING SET, PISTON - O/size 0.50
3060 MD301719 RING SET, PISTON - O/size 0.75
3060 MD301720 RING SET, PISTON - O/size 1.00
3060 MD301798 RING SET, PISTON - Std
3060 MD329755 RING SET, PISTON - Std
3060 MD301799 RING SET, PISTON - O/size 0.25
3060 MD301800 RING SET, PISTON - O/size 0.50
3060 MD301801 RING SET, PISTON - O/size 0.75
3060 MD301802 RING SET, PISTON - O/size 1.00
3060 MD329757 RING SET, PISTON - O/size 0.50
3060 MD329759 RING SET, PISTON - O/size 1.00
3782 MD096930 WASHER, CRANKSHAFT PULLEY - Plain,14.5
3782 MR994412 WASHER, CRANKSHAFT PULLEY - 14.5
3789 MD008959 KEY, CRANKSHAFT
3796 MF472404 PIN, CYLINDER BLOCK - Dowel,8x18
3797 MD113400 BOLT, A/T DRIVE PLATE - Flange,10x25
