Search › Model › V12V

V12V

Mitsubishi PAJERO-MONTERO · 1992 · 3,128 parts · 206 categories

3,128 items

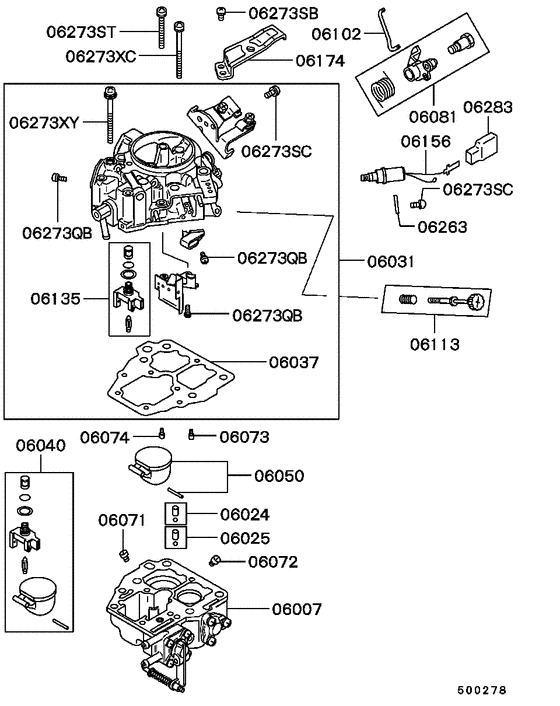

Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER)) 33

#	OEM	Part name
6007	MD612689	BODY,CARB MIXING
6024	MD612419	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET
6024	MD617332	CHECK VALVE KIT,CARB ACCEL PUMP OUTLET
6025	MD626160	CHECK VALVE KIT,CARB ACCEL PUMP INLET
6031	MD617328	COVER KIT,CARB FLOAT CHAMBER
6031	MD617493	COVER KIT,CARB FLOAT CHAMBER
6037	MD617392	GASKET, CARB FLOAT CHAMBER COVER
6037	MD617511	GASKET, CARB FLOAT CHAMBER COVER
6040	MD612950	FLOAT & NEEDLE VALVE KIT, CARB
6050	MD612686	FLOAT & PIN KIT, CARB
6071	MD606036	JET, CARB REV MAIN - #112.5
6071	MD606974	JET, CARB MAIN PRIMARY - #113.8
6072	MD608343	JET,CARB MAIN
6072	MD617353	JET,CARB MAIN
6073	MD600209	JET, CARB PILOT - #50
6073	MD617634	JET, CARB PILOT PRIMARY - #50
6074	MD608208	JET,CARB MAIN AIR
6081	MD617334	LEVER KIT,CARB CHOKE
6102	MD606854	ROD, CARB CHOKE LEVER
6102	MD617097	ROD,CARB CHOKE LEVER
6113	MD606855	SCREW, CARB INR
6113	MD617281	SCREW,CARB INR
6135	MD612863	NEEDLE VALVE KIT, CARB FLOAT
6156	MD612690	VALVE KIT,CARB SOLENOID
6174	MD617744	BRACKET,CARB THROTTLE RETURN SPRING
6263	MD612427	PLATE, CARB INR
6273	MF350023	SCREW, FUEL FILLER LID LOCKING - Washer assembled,4x8
6273	MF350047	SCREW, FLYWHEEL HOUSING - Washer assembled,5x10
6273	MF350048	SCREW, ACCEL CABLE SUPPORT - Washer assembled,5x12
6273	MF350061	SCREW, CARB INR
6273	MD606948	SCREW, CARB INR
6273	MD612692	SCREW, CARB INR
6283	MD612694	CONNECTOR,CARB INR

OEM	Part name	Category
MD600209	JET, CARB PILOT - #50	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD606036	JET, CARB REV MAIN - #112.5	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD606854	ROD, CARB CHOKE LEVER	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD606855	SCREW, CARB INR	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD606948	SCREW, CARB INR	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD606974	JET, CARB MAIN PRIMARY - #113.8	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD608208	JET,CARB MAIN AIR	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD608343	JET,CARB MAIN	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD612419	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD612427	PLATE, CARB INR	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD612686	FLOAT & PIN KIT, CARB	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD612689	BODY,CARB MIXING	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD612690	VALVE KIT,CARB SOLENOID	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD612692	SCREW, CARB INR	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD612694	CONNECTOR,CARB INR	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD612863	NEEDLE VALVE KIT, CARB FLOAT	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD612950	FLOAT & NEEDLE VALVE KIT, CARB	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD617097	ROD,CARB CHOKE LEVER	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD617281	SCREW,CARB INR	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD617328	COVER KIT,CARB FLOAT CHAMBER	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD617332	CHECK VALVE KIT,CARB ACCEL PUMP OUTLET	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD617334	LEVER KIT,CARB CHOKE	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD617353	JET,CARB MAIN	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD617392	GASKET, CARB FLOAT CHAMBER COVER	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD617493	COVER KIT,CARB FLOAT CHAMBER	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD617511	GASKET, CARB FLOAT CHAMBER COVER	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD617634	JET, CARB PILOT PRIMARY - #50	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD617744	BRACKET,CARB THROTTLE RETURN SPRING	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MD626160	CHECK VALVE KIT,CARB ACCEL PUMP INLET	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MF350023	SCREW, FUEL FILLER LID LOCKING - Washer assembled,4x8	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MF350047	SCREW, FLYWHEEL HOUSING - Washer assembled,5x10	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MF350048	SCREW, ACCEL CABLE SUPPORT - Washer assembled,5x12	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
MF350061	SCREW, CARB INR	Carburetor (WITHOUT EGR VALVE (INNER PARTS UPPER))
