Search › Model › V10

V10

Nissan TINO · 1998 · 4,273 parts · 809 categories

4,273 items

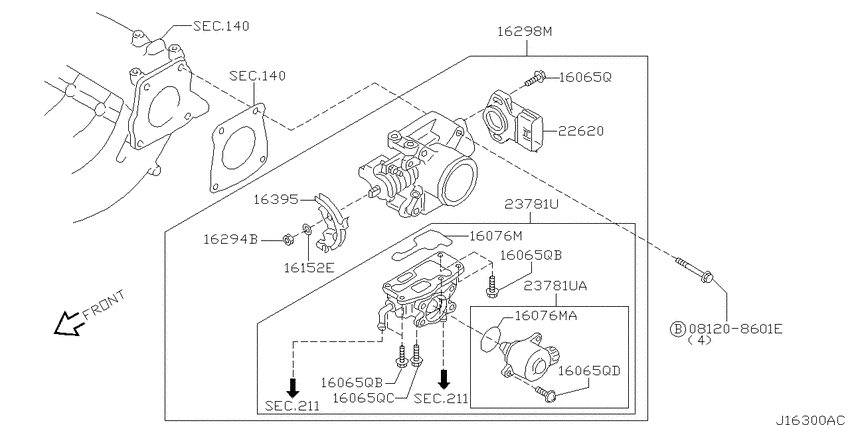

Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE) 20

#	OEM	Part name
16065	16065-4M800	Screw
16065	16065-2Y010	Screw
16065	16065-5U000	Screw
16065	16065-2Y012	Screw
16076	16618-4M500	Seal-O Ring
16076	16618-2Y010	Seal-O Ring
16152	16152-87Y10	Washer
16152	16152-97E15	WASHER
16298	16119-4M500	Chamber Assy-Throttle
16298	16119-AU000	Chamber Assy-Throttle
16298	16119-AU003	Chamber Assy-Throttle
16298	16119-WA600	Chamber Assy-Throttle
16298	16119-WA610	Chamber Assy-Throttle
16395	16134-4M400	Lever-Throttle
16395	16134-WD721	Lever-Throttle
22620	22620-4M500	Throttle Position Switch
22620	22620-4M501	Throttle Position Switch
23781	23781-4M421	Iacv-Aac Valve
23781	23781-4M500	Iacv-Aac Valve
81208601	08120-8601E	Bolt-hexagon

OEM	Part name	Category
08120-8601E	Bolt-hexagon	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
16065-2Y010	Screw	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
16065-2Y012	Screw	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
16065-4M800	Screw	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
16065-5U000	Screw	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
16119-4M500	Chamber Assy-Throttle	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
16119-AU000	Chamber Assy-Throttle	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
16119-AU003	Chamber Assy-Throttle	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
16119-WA600	Chamber Assy-Throttle	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
16119-WA610	Chamber Assy-Throttle	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
16134-4M400	Lever-Throttle	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
16134-WD721	Lever-Throttle	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
16152-87Y10	Washer	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
16152-97E15	WASHER	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
16618-2Y010	Seal-O Ring	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
16618-4M500	Seal-O Ring	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
22620-4M500	Throttle Position Switch	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
22620-4M501	Throttle Position Switch	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
23781-4M421	Iacv-Aac Valve	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)
23781-4M500	Iacv-Aac Valve	Throttle chamber (2001-04-01 ~ 2002-10-01; QG18DE)

Source: Public OEM parts-catalog data
Variants: 2 / 11
Category: 809
Collected: 2026-07-27
